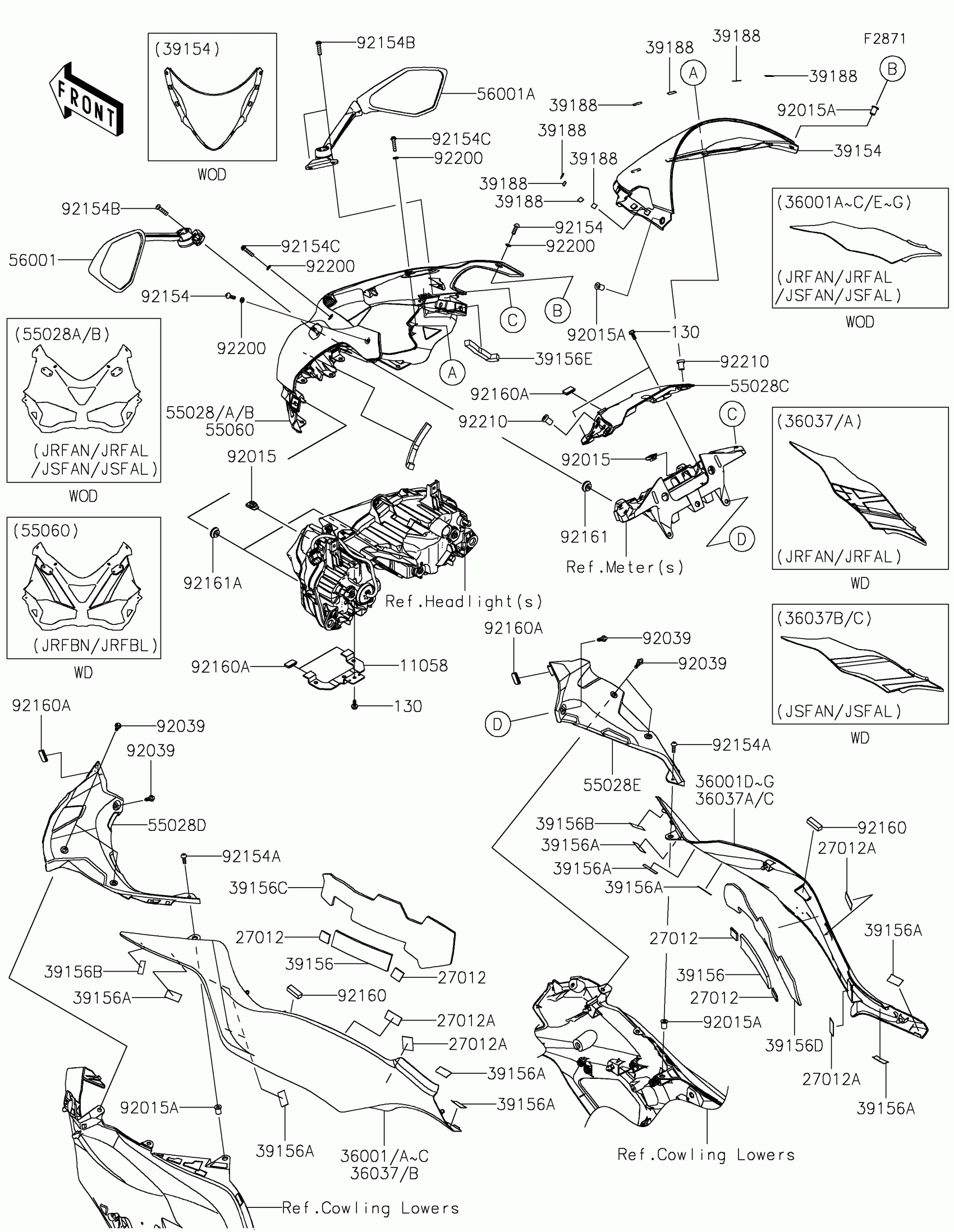

Kawasaki NINJA® ZX™-6R ABS Cowling Diagram
#
11058
BRACKET,HEAD LAMP
11058-0581
$10.63
27012
HOOK,20X20X3.0
27012-0742
$4.41
27012A
HOOK
27012-0751
$5.98
36001A
COVER-SIDE,LH,P.R.WHITE
36001-0594-68N
$122.20
36001B
COVER-SIDE,LH,M.M.D.GRAY
36001-0594-69P
$117.73
36001E
COVER-SIDE,RH,P.R.WHITE
36001-0595-68N
$122.20
36001F
COVER-SIDE,RH,M.M.D.GRAY
36001-0595-69P
$117.73
36037B
COVER-SIDE,LH,EBONY
36037-5281-H8
$315.53
36037C
COVER-SIDE,RH,EBONY
36037-5282-H8
$315.53
39154
WINDSHIELD
39154-0420
$231.60
39156
PAD
39156-0536
$2.76
39156A
PAD,15X30X0.2
39156-0979
$1.62
39156B
PAD,10X30X0.2
39156-0980
$1.18
39156C
PAD,COVER FRAME,LH
39156-2410
$10.30
39156D
PAD,COVER FRAME,RH
39156-2411
$10.30
39156E
PAD,105X10X10
39156-2884
$1.82
39188
TAPE
39188-0022
$0.84
55028
COWLING,UPP,M.G.GRAY
55028-0842-45W
$403.74
55028A
COWLING,UPP,L.GREEN
55028-0842-777
$403.74
55028B
COWLING,UPP,EBONY
55028-0842-H8
$403.74
55028C
COWLING,UPP,CNT
55028-0843
$33.18
55028D
COWLING,METER,LH,INNER
55028-0853
$33.59
55028E
COWLING,METER,RH,INNER
55028-0854
$39.89
56001
MIRROR-ASSY,LH
56001-0393
$89.23
56001A
MIRROR-ASSY,RH
56001-0394
$89.23
92015
NUT,5MM
92015-1710
$6.22
92015A
NUT,WELL,5MM
92015-1757
$7.29
92039
RIVET
92039-0060
$3.39
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,SOCKET,5X16
92154-1701
$1.19
92154B
BOLT,SOCKET,6X22
92154-3777
$1.69
92154C
BOLT,SOCKET,5X23
92154-7055
$2.13
92160
DAMPER
92160-1183
$3.57
92160A
DAMPER
92160-1190
$4.08
92161
DAMPER
92161-1531
$3.02
92161A
DAMPER,6X20X7.5
92161-1937
$1.94
92200
WASHER,5.2X10X1.0
92200-1820
$0.63
92210
NUT,5MM
92210-0001
$6.18
130
BOLT-FLANGED,5X12
130BA0512
$2.22
