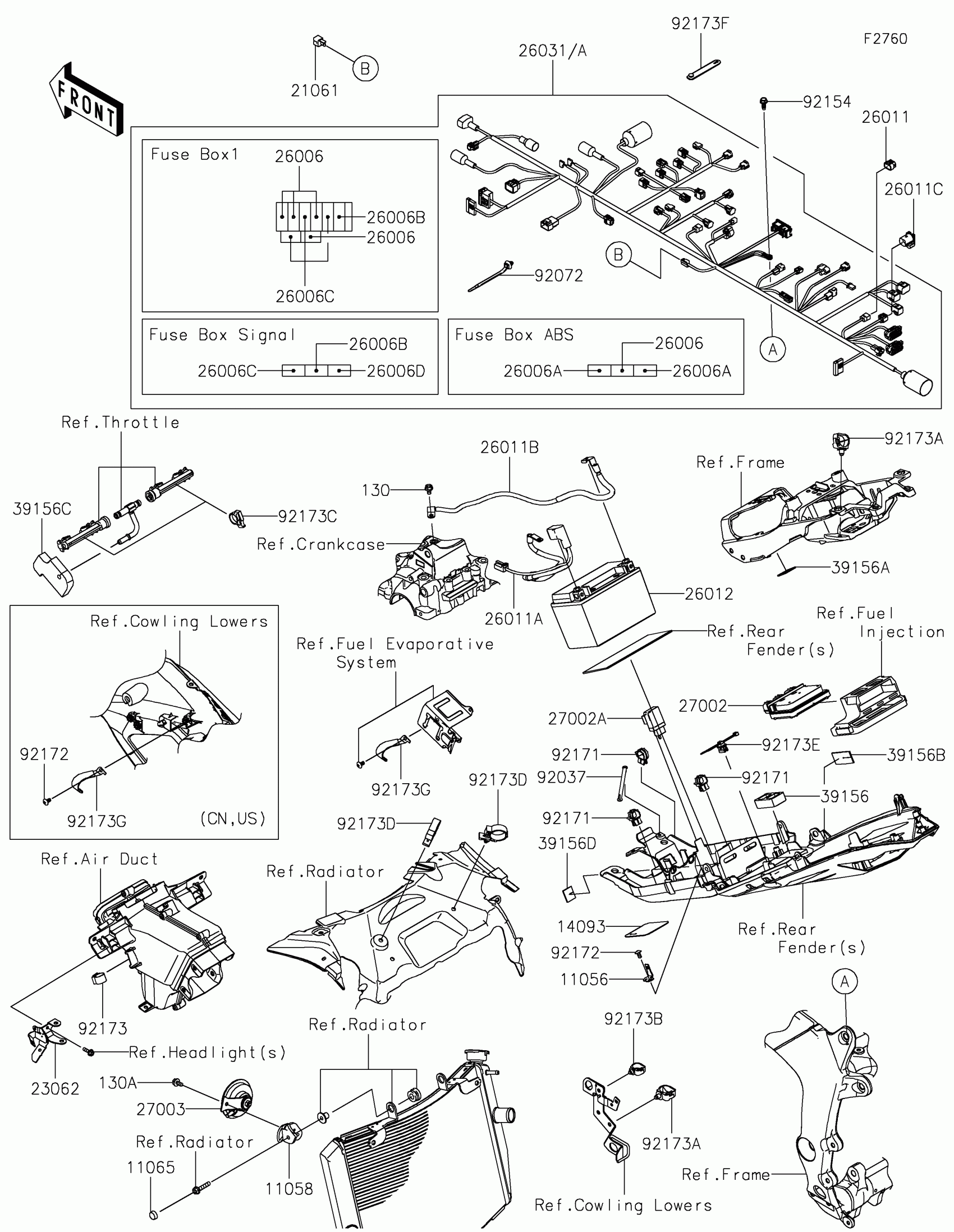

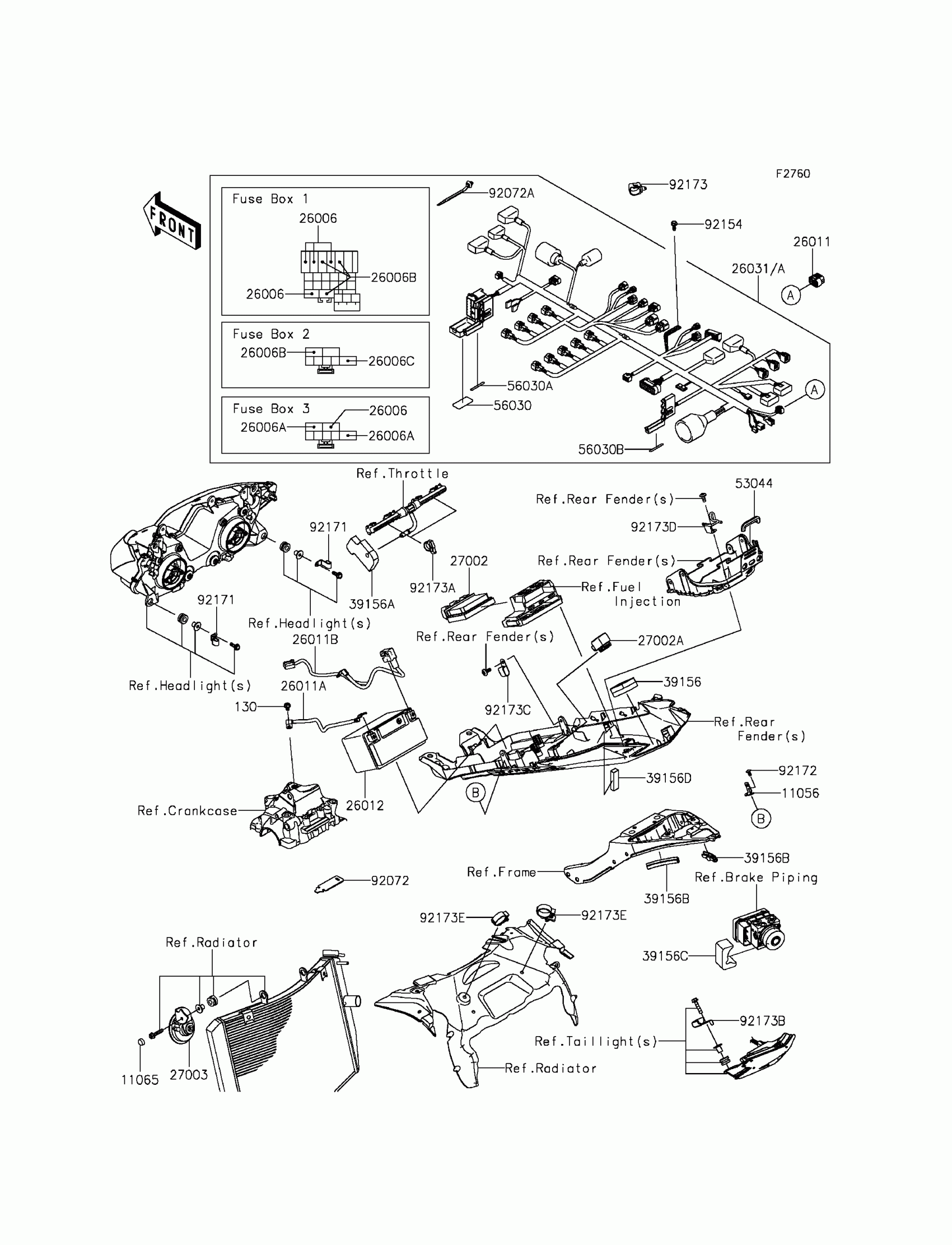

Kawasaki Ninja® ZX™-6R ABS Chassis Electrical Equipment Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130BA0610

$1.20

11056

BRACKET,FUSE BOX,ABS

11056-2054

$5.05

11065

CAP,BOLT

11065-0752

$2.30

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

$6.57

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26011A

WIRE-LEAD,BATTERY(-)

26011-0776

$34.92

26011B

WIRE-LEAD,BATTERY(+)

26011-0824

$51.09

26012

BATTERY,YTX9-BS,12V 8AH

26012-0088

Unavailable

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0091

$88.16

39156

PAD,DIAG. CONNECTOR

39156-0912

$15.36

39156A

PAD,T15

39156-0962

$7.90

39156B

PAD,30X80X2

39156-0963

Unavailable

39156C

PAD,ABS UNIT

39156-0994

$8.81

39156D

PAD,10X50X15

39156-1726

$1.96

53044

TRIM

53044-0018

$4.65

56030

LABEL,FUSE BOX1

56030-0796

$4.37

56030A

LABEL,FUSE BOX2

56030-0797

$4.37

56030B

LABEL,FUSE BOX ABS

56030-0798

$3.68

92072

BAND,HARNESS

92072-0745

$3.75

92072A

BAND

92072-1392

$3.74

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92171

CLAMP

92171-0926

$8.68

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92173

CLAMP

92173-0861

$3.02

92173A

CLAMP,SNAPPER

92173-0970

$4.72

92173B

CLAMP,84MM

92173-1008

$5.33

92173C

CLAMP,68MM

92173-1009

$4.72

92173D

CLAMP

92173-1020

$16.51

92173E

CLAMP,CABLE,28MM

92173-1062

$3.72

26031

HARNESS,MAIN

26031-1551

$946.52

26031A

HARNESS,MAIN

26031-1552

$946.52
