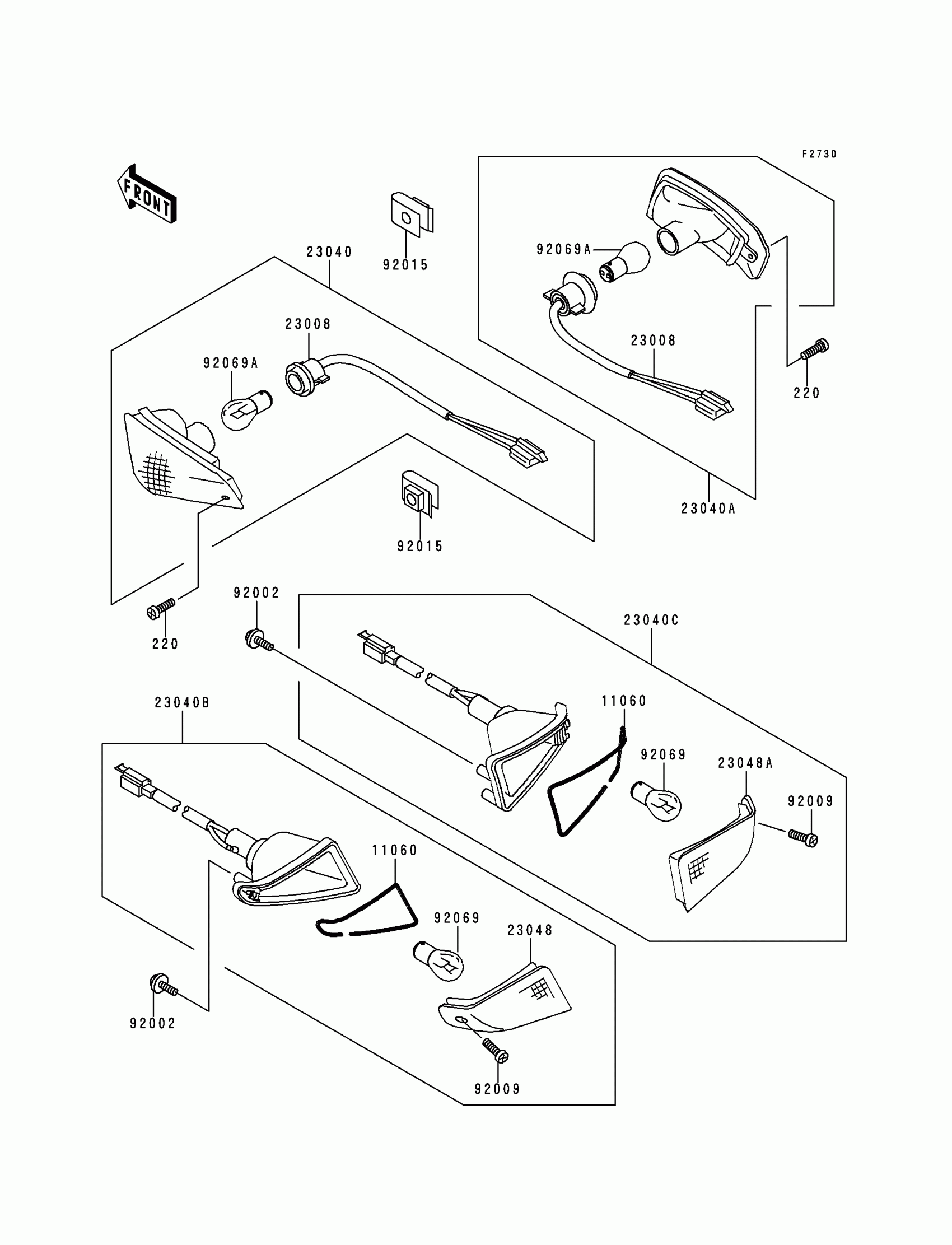

Kawasaki Ninja® ZX™-6 Turn Signals Diagram

Description

Price

220

SCREW-PAN-CROS,4X25

220D0425

Unavailable

11060

GASKET,SIGNAL LAMP LENS

11060-1322

$10.53

23008

SOCKET-ASSY,SIGNAL LAMP,FR

23008-1514

$24.97

23040

LAMP-SIGNAL,FR,LH

23040-1237

$60.17

23040A

LAMP-SIGNAL,FR,RH

23040-1238

$60.17

23040B

LAMP-SIGNAL,RR,LH

23040-1243

$66.64

23040C

LAMP-SIGNAL,RR,RH

23040-1244

$66.64

23048

LENS-SIGNAL LAMP,RR,LH

23048-1144

$10.46

23048A

LENS-SIGNAL LAMP,RR,RH

23048-1145

$10.46

92002

BOLT,TAPPING,5X16

92002-1472

$1.52

92009

SCREW,TAPPING,4X14,YELLOW

92009-1140

$4.60

92015

NUT,4MM

92015-1834

$7.24

92069

BULB,12V 32CP(23W)

92069-055

$5.18

92069A

BULB,12V 32/3CP(23/8W)

92069-060

$9.70
