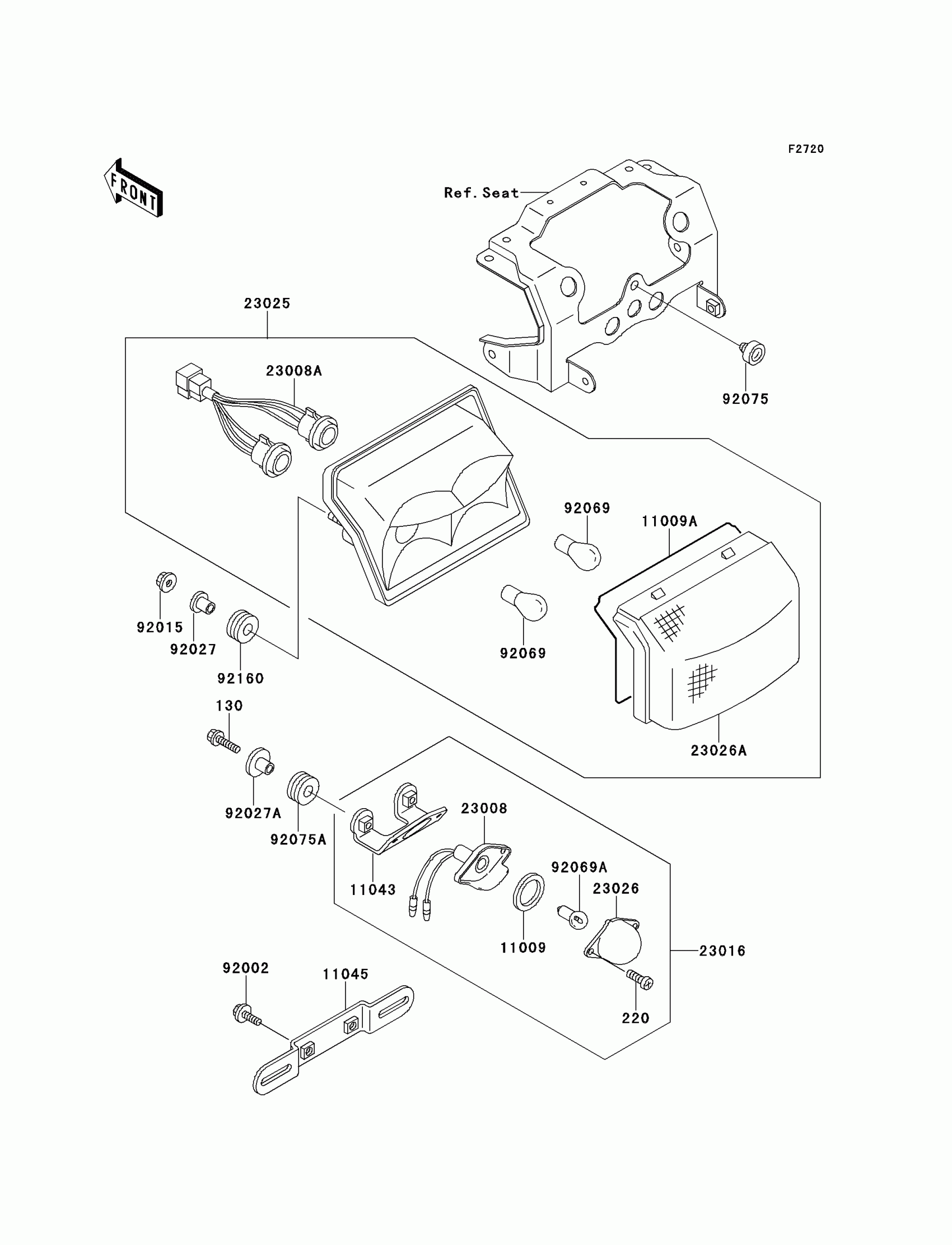

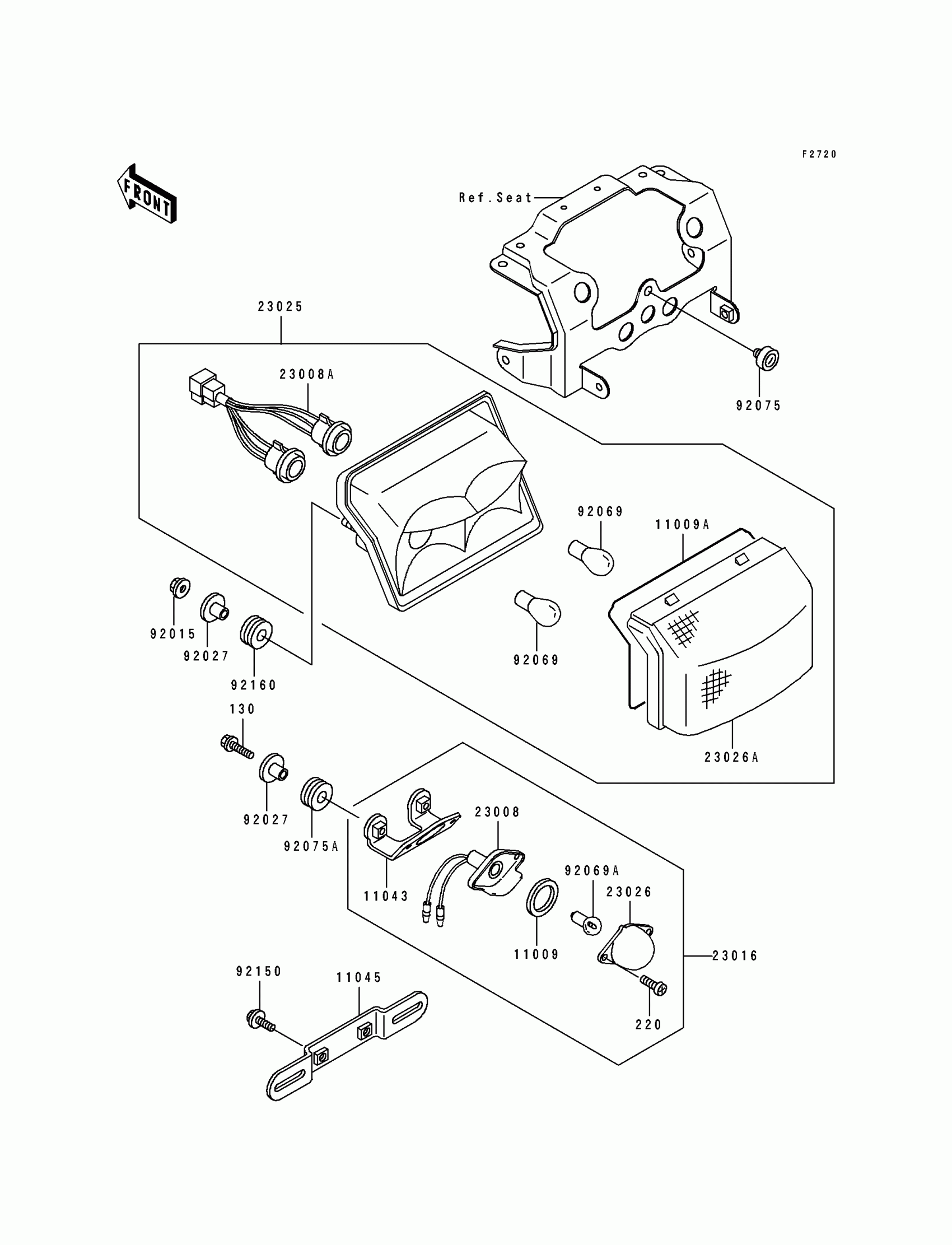

Kawasaki Ninja® ZX™-6 Tail Lamp Diagram

Description

Price

11009

GASKET,LICENSE PLATE LAMP

11009-1372

$4.65

11009A

GASKET,TAIL LAMP LENS

11009-1876

Unavailable

11043

BRACKET,LICENSE PLATE LAMP

11043-1497

Unavailable

11045

BRACKET,LICENSE

11045-1387

$16.69

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

Unavailable

23008A

SOCKET-ASSY,TAIL LAMP

23008-1364

$45.48

23016

LAMP-ASSY,LICENSE PLATE

23016-1053

$72.93

23025

LAMP-TAIL

23025-1202

$217.33

23026

LENS,LAMP

23026-1054

$9.28

23026A

LENS,TAIL LAMP

23026-1118

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92027

COLLAR,L=13.1

92027-251

Unavailable

92069

BULB,12V 27/8W

92069-059

$8.12

92069A

BULB,12V 8W

92069-1012

$5.18

92075

DAMPER

92075-035

$4.60

92075A

DAMPER,10X24X12

92075-1690

$5.00

92150

BOLT,6X14

92150-1133

$4.31

92160

DAMPER

92160-1162

$5.00

130

BOLT-FLANGED,6X25

130H0625

Unavailable

220

SCREW PAN HEAD 4X10

220B0410

$2.30
