Description

Price

130

BOLT-FLANGED

130B0614

Unavailable

132

BOLT-FLANGED-SMALL

132G0612

$1.17

601

BEARING-BALL,#6004

601A6004

$11.91

11012

CAP,CHAIN ADJUSTER

11012-1704

$36.45

32085

STOPPER,CHAIN ADJUSTER

32085-1317

$5.33

33032

SHAFT-SWING ARM

33032-1152

Unavailable

33040

ADJUSTER-CHAIN,OUTSIDE

33040-1094

$8.63

33040A

ADJUSTER-CHAIN,INSIDE

33040-1103

$38.84

42036

SLEEVE,SWING ARM,L=203.5

42036-1266

Unavailable

49001

NIPPLE-GREASE

49001-1051

$3.02

55020

GUARD,CHAIN

55020-1370

Unavailable

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,FLANGED,20MM

92015-1724

$14.90

92033

RING-SNAP,42MM

92033-1041

$6.16

92046

BEARING-NEEDLE,BM2817

92046-1111

$21.86

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$9.28

92143

COLLAR,SWING ARM,L=12.5

92143-1227

$8.97

92150

BOLT,SOCKET,6MM

92150-1154

$7.84

92150A

BOLT,CHAIN ADJUSTER

92150-1285

$9.05

92160

DAMPER,SWING ARM

92160-1092

Unavailable

33001

ARM-COMP-SWING,G.GRAY

33001-1356-GD

Unavailable

33001A

ARM-COMP-SWING,G.GRAY

33001-1356-HN

$353.08

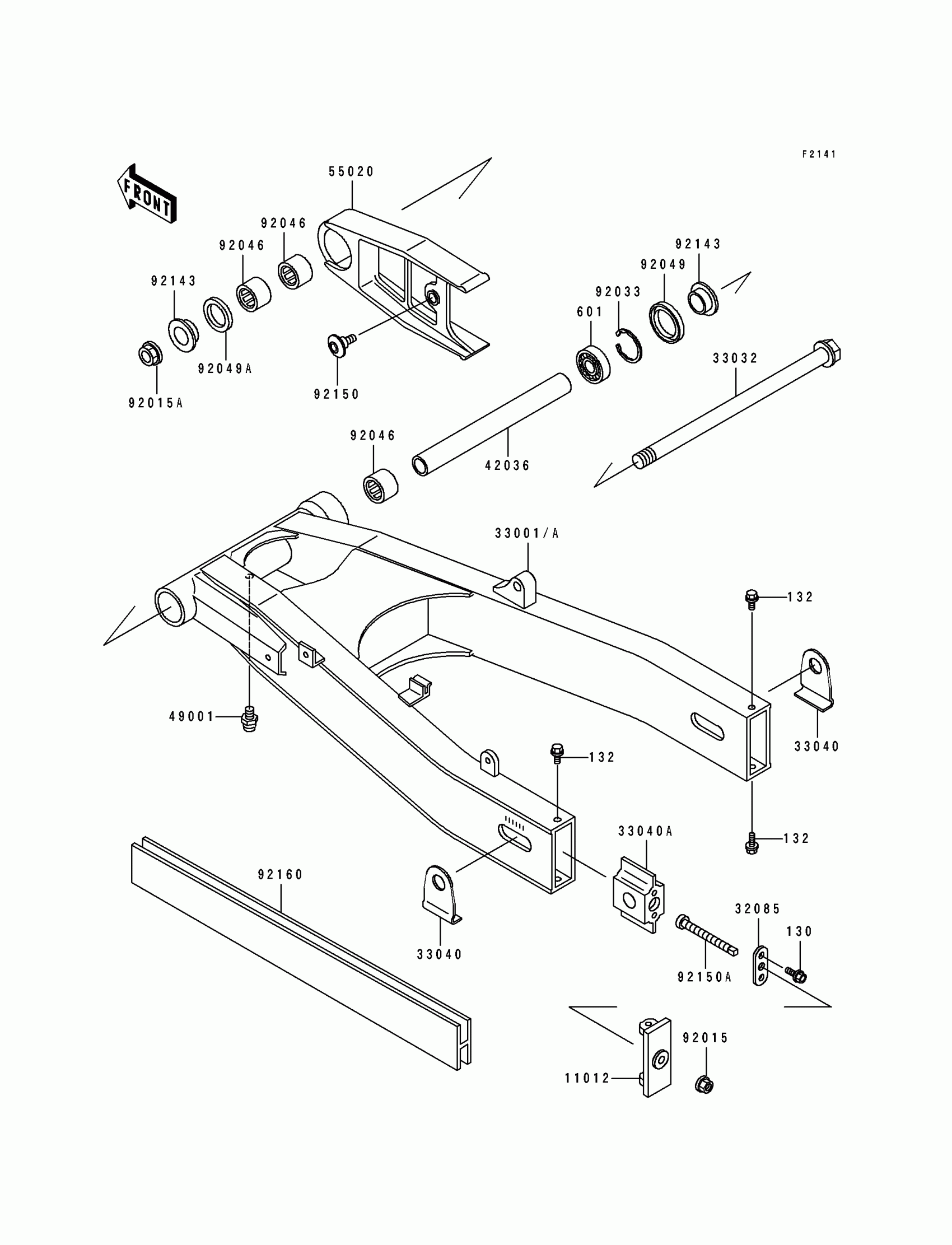

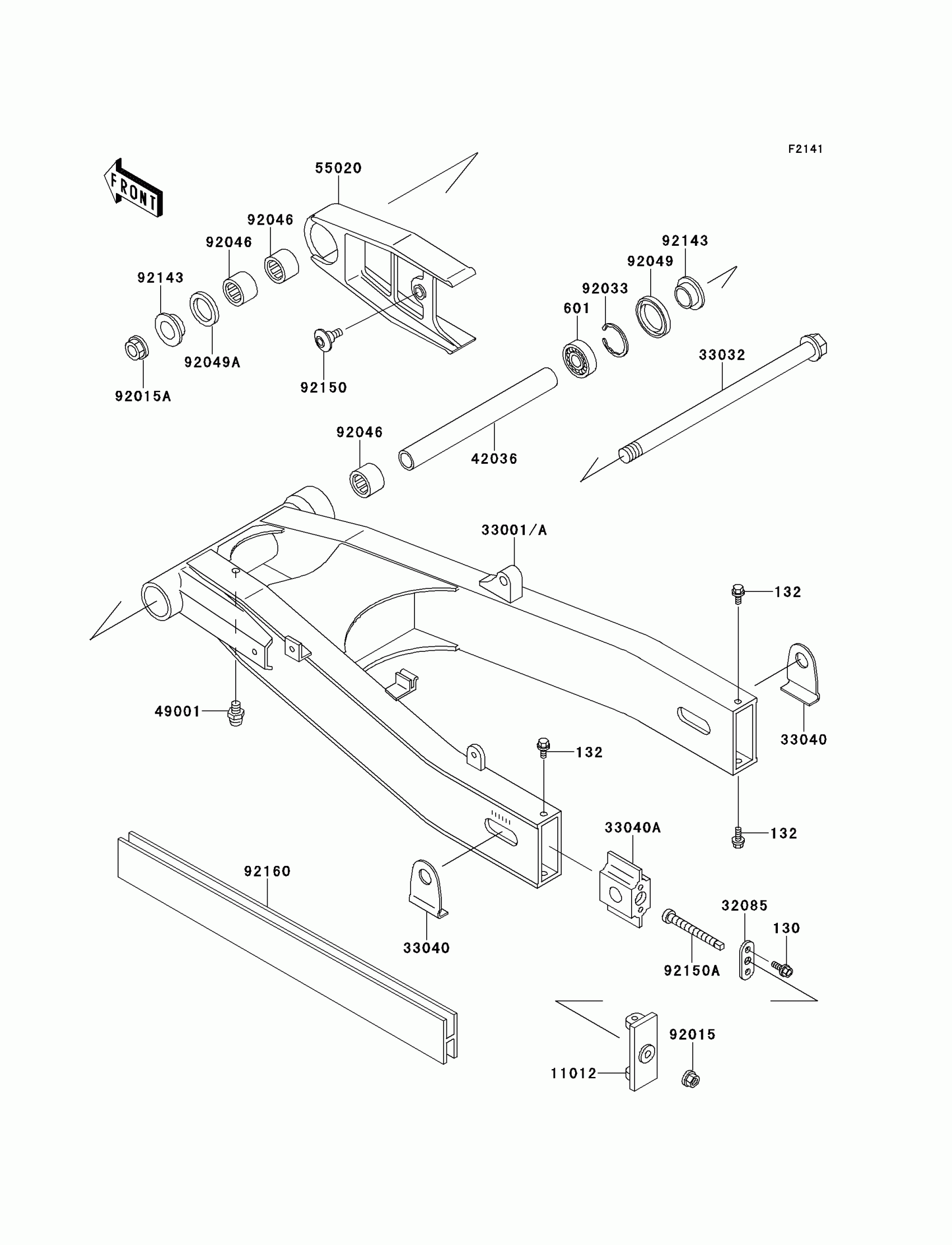

Kawasaki Ninja® ZX™-6 Swing Arm Diagram

BOLT-FLANGED

BOLT-FLANGED-SMALL

BEARING-BALL,#6004

CAP,CHAIN ADJUSTER

STOPPER,CHAIN ADJUSTER

SHAFT-SWING ARM

ADJUSTER-CHAIN,OUTSIDE

ADJUSTER-CHAIN,INSIDE

SLEEVE,SWING ARM,L=203.5

NIPPLE-GREASE

GUARD,CHAIN

NUT,8MM

NUT,FLANGED,20MM

RING-SNAP,42MM

BEARING-NEEDLE,BM2817

SEAL-OIL,MHSA25X42X6

SEAL-OIL,MHSA25X34X7

COLLAR,SWING ARM,L=12.5

BOLT,SOCKET,6MM

BOLT,CHAIN ADJUSTER

DAMPER,SWING ARM

ARM-COMP-SWING,G.GRAY

ARM-COMP-SWING,G.GRAY
