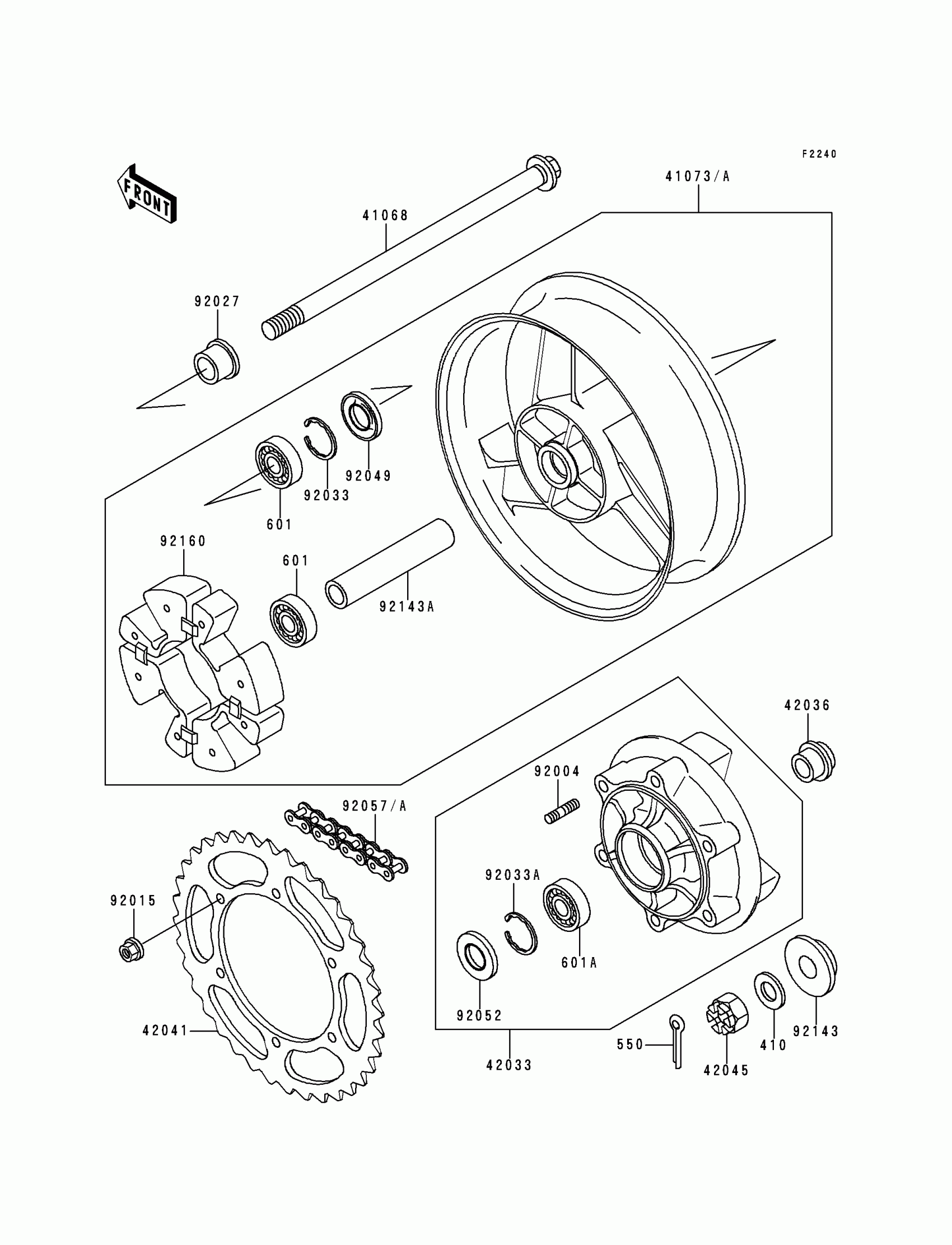

Kawasaki Ninja® ZX™-6 Rear Wheel/Chain Diagram

Description

Price

410

W-PLAN-S,18MM

410D1800

$1.83

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,6204UUC3

601B6204UU

$29.98

601A

BEARING-BALL,#6205G

601B6205G

$19.08

41068

AXLE,RR

41068-1350

$163.90

41073

WHEEL-ASSY,RR,L.GREEN

41073-1521-CJ

$910.75

41073A

WHEEL-ASSY,RR,G.GRAY

41073-1521-GE

$1,119.88

42033

COUPLING-ASSY,RR HUB

42033-1163

$312.23

42036

SLEEVE,RR HUB,L=23

42036-1251

$26.21

42041

SPROCKET-HUB,48T

42041-1362

$80.96

42045

NUT,CASTLE,18MM

42045-018

$9.23

92004

STUD,10X19

92004-1151

$8.92

92015

NUT,10MM

92015-1720

$5.24

92027

COLLAR,RR AXLE,L=21.5

92027-1902

$25.27

92033

RING-SNAP,47MM

92033-1042

$4.22

92033A

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,BJN28475

92049-1056

$13.08

92052

SEAL-OIL,TWC35527

92052-006

Unavailable

92057A

CHAIN,DRIVE,EK50MV-XX112L

92057-1386

$387.57

92143

COLLAR,RR AXLE,L=16

92143-1302

$41.82

92143A

COLLAR,RR HUB,L=133

92143-1303

$38.20

92160

DAMPER,SHOCK,RR HUB

92160-1399

$77.34
