Description

Price

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6205G

601B6205G

$19.08

601A

BEARING-BALL,#6303ZZC3

601B6303ZZ

$40.38

41068

AXLE,RR

41068-1314

$152.97

41073

WHEEL-ASSY,RR,G.GRAY

41073-1468-GE

$1,126.11

42033

COUPLING-ASSY,RR HUB,G.GRAY

42033-1142-GD

Unavailable

42036

SLEEVE,RR AXLE,L=22

42036-1233

$25.31

42041

SPROCKET-HUB,45T

42041-1361

$87.85

92004

STUD,10X19

92004-1151

$8.92

92015

NUT,CASTLE,16MM

42045-014

$9.91

92015A

NUT,10MM

92015-1720

$5.24

92022

WASHER,17.3X32X3.2

42046-009

$7.84

92033

RING-SNAP,47MM

92033-1042

$4.22

92033A

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,BJN28475

92049-1056

$13.08

92049A

SEAL-OIL,TWC35527

92052-006

Unavailable

92057

CHAIN,DRIVE,EK50MV-OX110L

92057-1221

$519.77

92143

COLLAR,RR AXLE,L=14.5

92143-1209

$20.49

92143A

COLLAR,RR AXLE,L=26

92143-1210

Unavailable

92143B

COLLAR,RR HUB,L=125

92143-1393

Unavailable

92160

DAMPER,SHOCK,RR HUB

92160-1229

$141.24

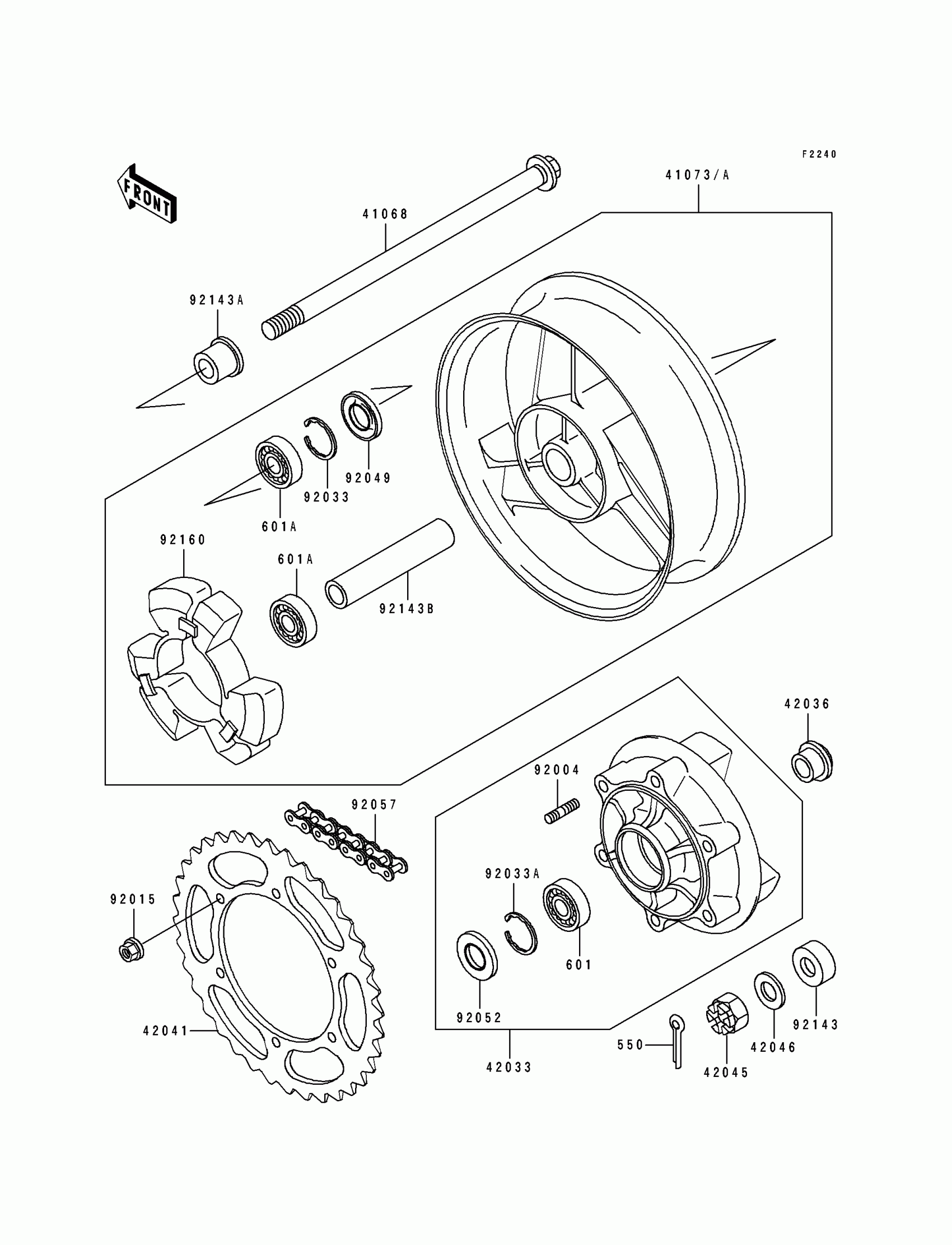

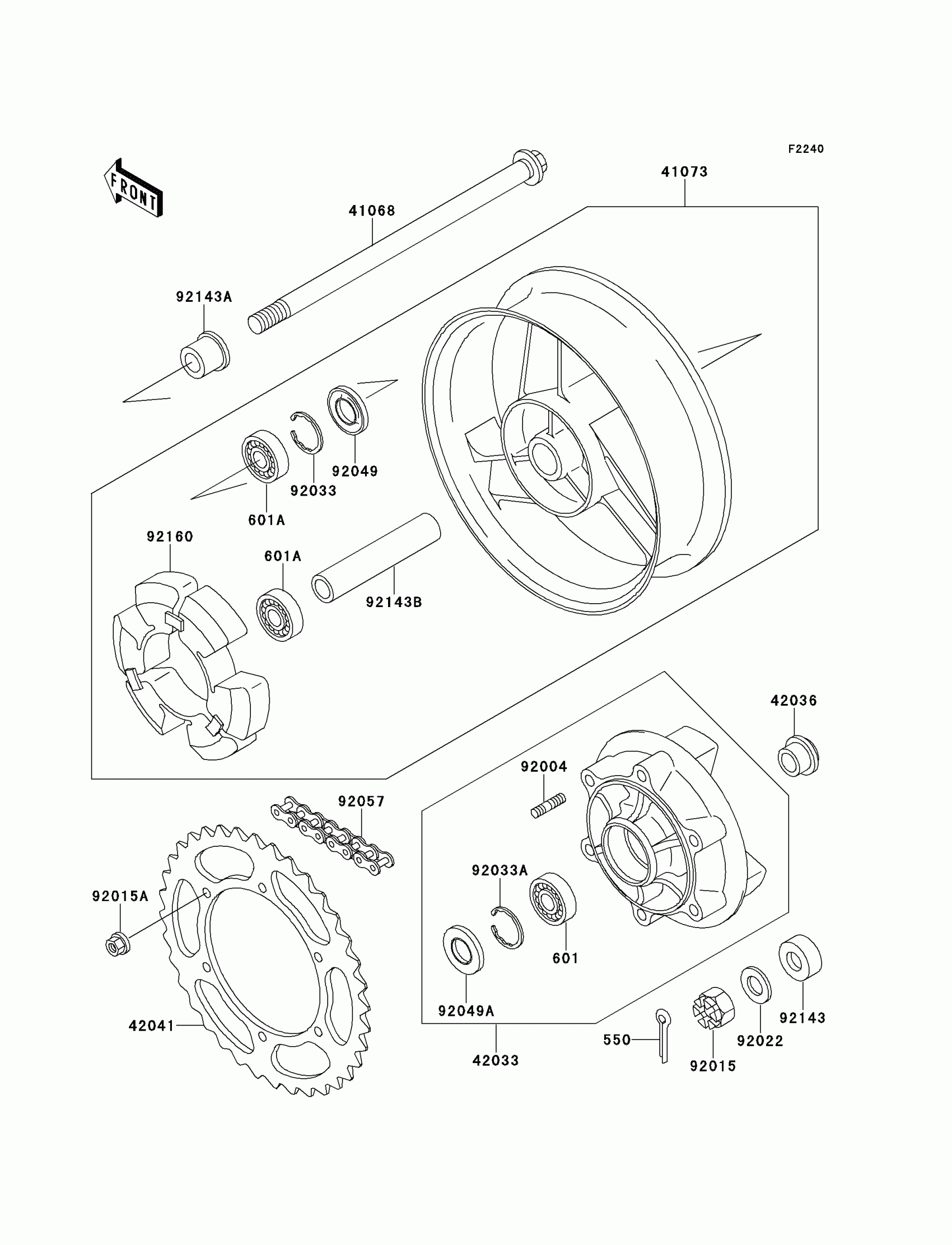

Kawasaki Ninja® ZX™-6 Rear Hub Diagram

PIN-COTTER,4.0X35

BEARING-BALL,#6205G

BEARING-BALL,#6303ZZC3

AXLE,RR

WHEEL-ASSY,RR,G.GRAY

COUPLING-ASSY,RR HUB,G.GRAY

SLEEVE,RR AXLE,L=22

SPROCKET-HUB,45T

STUD,10X19

NUT,CASTLE,16MM

NUT,10MM

WASHER,17.3X32X3.2

RING-SNAP,47MM

RING-SNAP,52MM

SEAL-OIL,BJN28475

SEAL-OIL,TWC35527

CHAIN,DRIVE,EK50MV-OX110L

COLLAR,RR AXLE,L=14.5

COLLAR,RR AXLE,L=26

COLLAR,RR HUB,L=125

DAMPER,SHOCK,RR HUB
