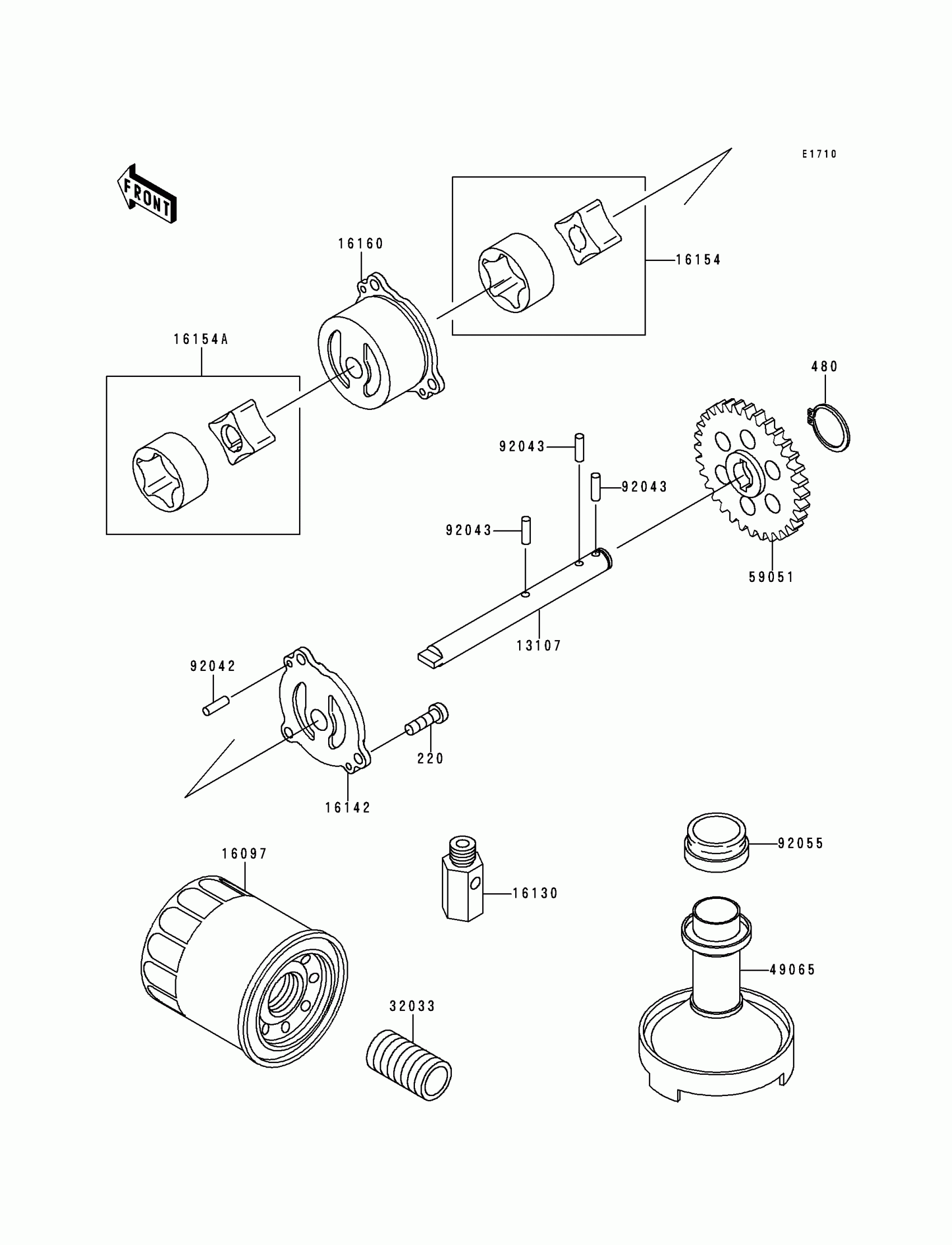

Kawasaki Ninja® ZX™-6 Oil Pump/Oil Filter Diagram

Description

Price

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13107

SHAFT,OIL PUMP

13107-1265

$57.77

16097

FILTER-ASSY-OIL

16097-1063

$11.00

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16142

COVER-PUMP

16142-1100

$49.75

16154

ROTOR-PUMP,ENGINE

16154-1085

$77.08

16154A

ROTOR-PUMP,OIL COOLER

16154-1086

$77.08

16160

BODY,OIL PUMP

16160-1159

$147.06

32033

PIPE,OIL FILTER

32033-1535

$9.85

49065

FILTER-OIL

49065-1056

$25.63

59051

GEAR-SPUR,OIL PUMP

59051-1308

$70.07

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92043

PIN,17.9X5.0

92043-1444

$3.85

92055

RING-O,OIL FILTER

92055-1354

$7.25
