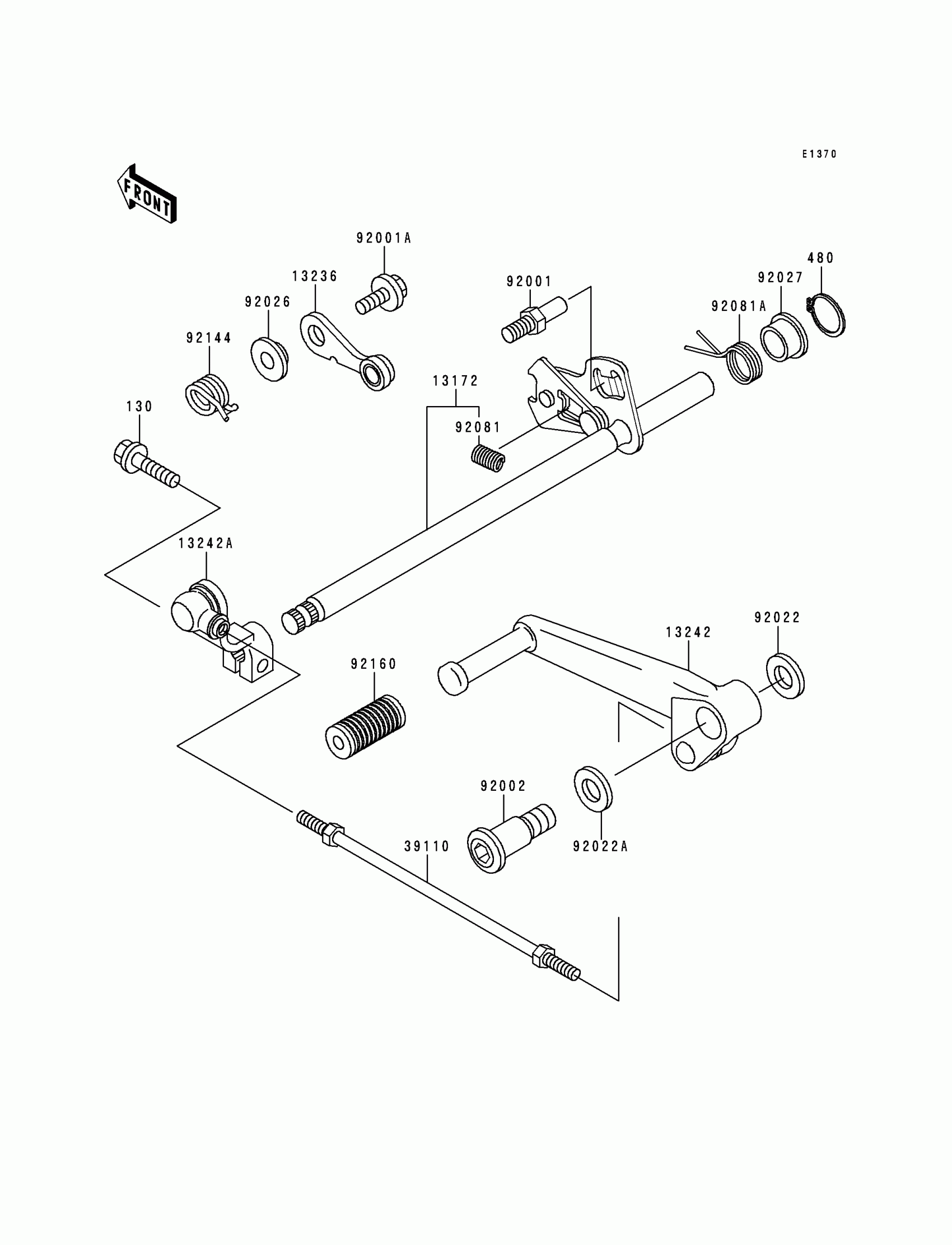

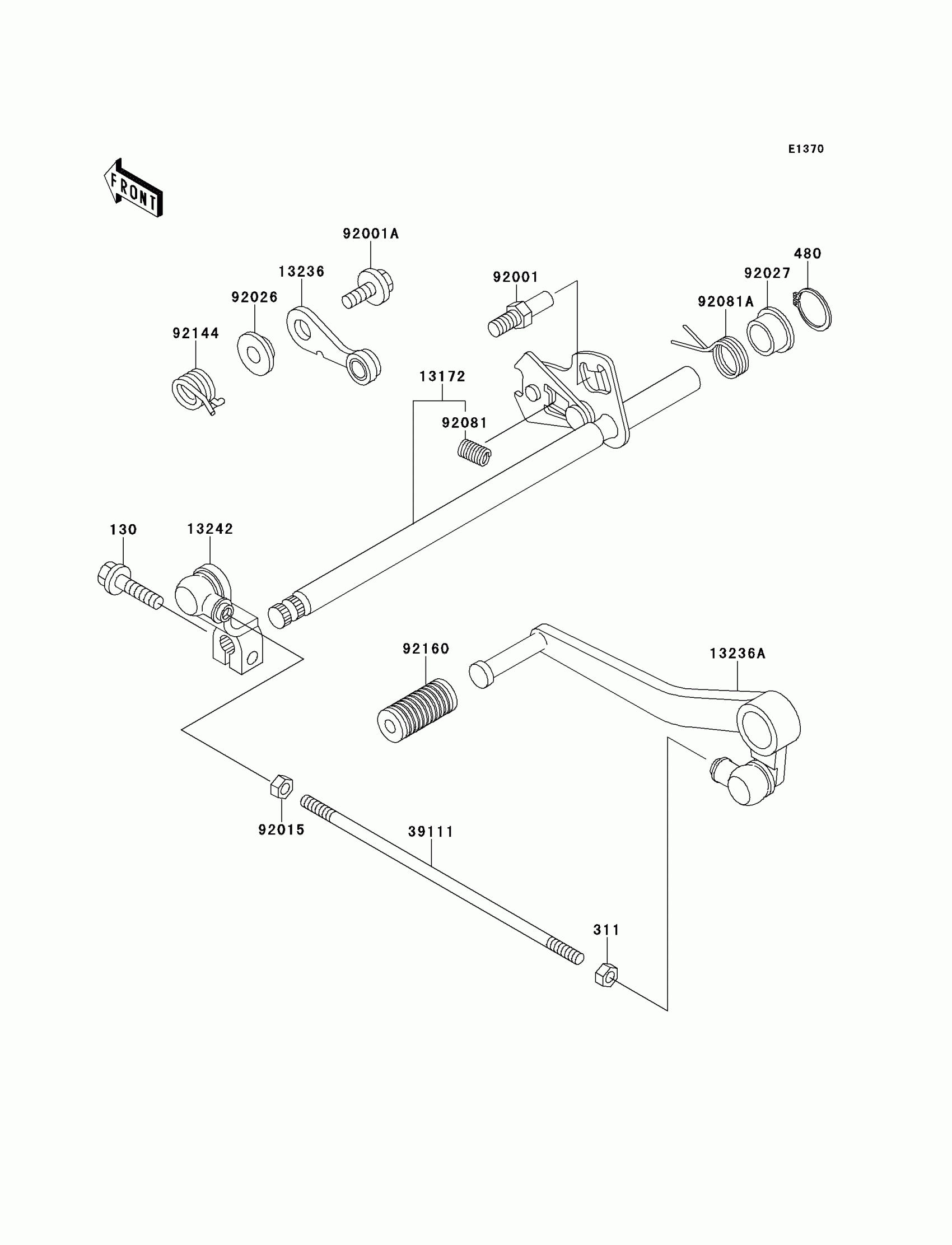

Kawasaki Ninja® ZX™-6 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

$6.86

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

13172

SHAFT-ASSY-CHANGE

13172-1072

Unavailable

13236

LEVER-COMP,NEUTRAL POSITION

13236-1209

$19.66

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1305

$112.18

13242A

LEVER-ASSY-CHANGE,LINK

13242-1306

$53.68

39110

ROD-ASSY-TIE,CHANGE LEVER

39110-1010

$13.08

92001

BOLT,RETURN SPRING

92001-1455

$4.69

92001A

BOLT,W/WASHER,6X12

92001-1516

$5.00

92002

BOLT,CHANGE PEDAL

92002-1926

$15.92

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92022A

WASHER,12.5X22X1.2

92022-1593

$4.50

92026

SPACER

92026-1217

$5.52

92027

COLLAR,L=10.6

92027-1801

$8.66

92081

SPRING,CHANGE LEVER

92081-1275

$4.26

92081A

SPRING,CHANGE LEVER RETURN

92081-1279

$7.27

92144

SPRING,RETURN

92144-1693

$9.13

92160

DAMPER,CHANGE PEDAL

92160-1036

$5.05
