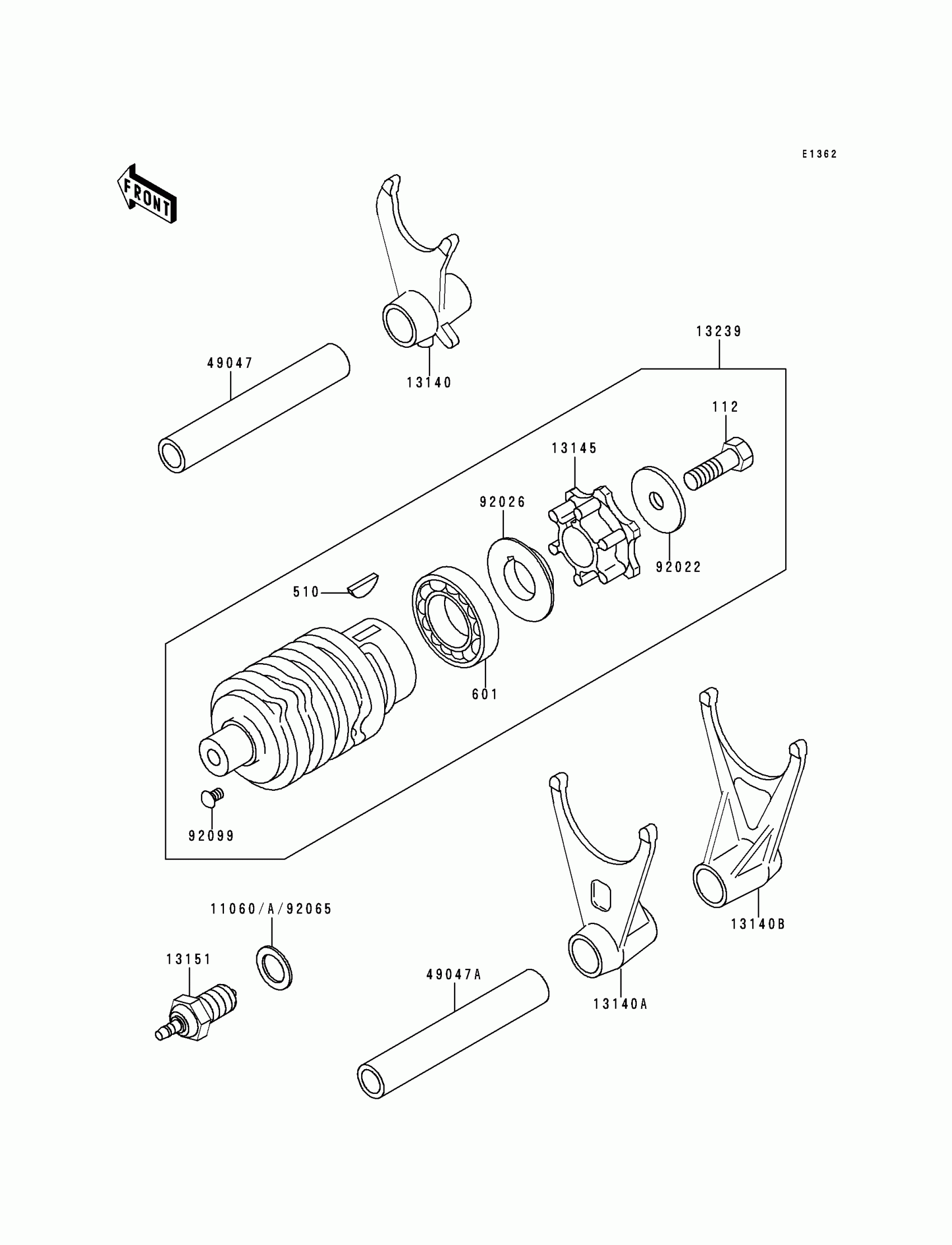

Kawasaki Ninja® ZX™-6 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

112

BOLT-UPSET

112P0620

$4.46

510

KEY-WOODRUFF

510A3200

$2.70

601

BEARING-BALL

601A6005

$13.82

11060

GASKET,10.5X16X1.5

11060-1676

Unavailable

11060A

GASKET,10.5X16X1.2

11060-1684

Unavailable

13140

FORK-SHIFT,INPUT

13140-1153

$109.79

13140A

FORK-SHIFT,OUTPUT

13140-1154

$109.79

13140B

FORK-SHIFT,OUTPUT

13140-1191

$109.79

13145

CAM-CHANGE DRUM

13145-1074

$49.28

13151

SWITCH-COMP,NEUTRAL

13151-1080

$10.38

13239

DRUM-ASSY-CHANGE

13239-1176

$212.87

49047

ROD-SHIFT

49047-1070

$29.43

49047A

ROD-SHIFT

49047-1076

$28.37

92022

WASHER,6.5X24X2

92022-1690

$3.92

92026

SPACER,CHANGE DRUM

92026-1380

$15.39

92065

GASKET,10.5X16X1

92065-058

$3.96

92099

RIVET

92099-001

$3.89
