1995 Kawasaki Ninja® ZX™-6 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1995 Kawasaki Ninja® ZX™-6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

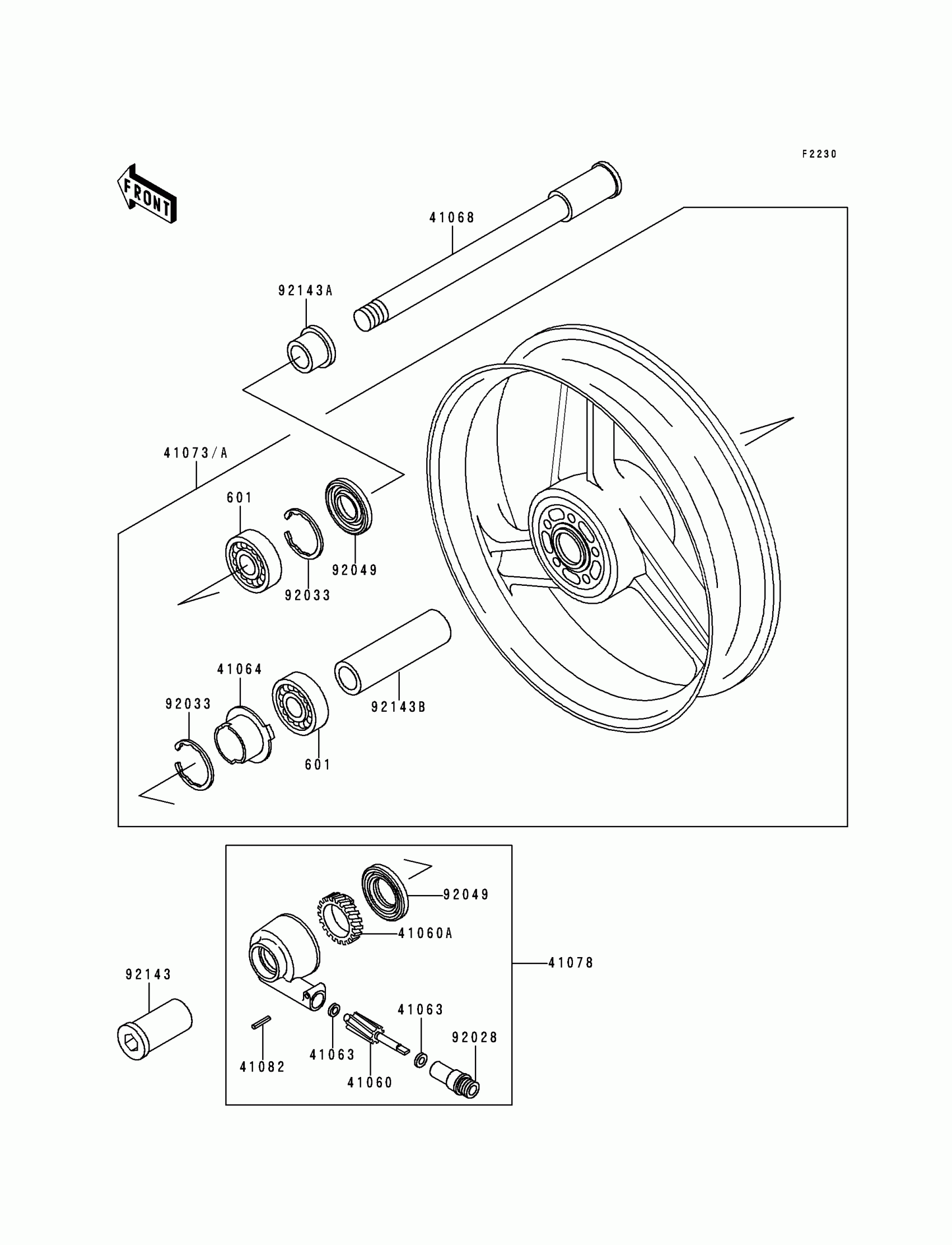

1995 Kawasaki Ninja® ZX™-6 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL,#6004UUC3

601B6004UU

1
Out of stock

41060

GEAR-METER SCREW,9T

41060-1123

1

$19.10

In stock

41060A

1

$31.49

In stock

41063

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

41064

1

$11.81

In stock

41068

AXLE,FR

41068-1311

1
Out of stock

41073

WHEEL-ASSY,FR,L.GREEN

41073-1518-CJ

1
Out of stock

41073A

WHEEL-ASSY,FR,G.GRAY

41073-1518-GE

1
Out of stock

41078

CASE-ASSY-METER GEAR

41078-1076

1
Out of stock

41082

PIN,SPRING

41082-001

1
Out of stock

92028

BUSHING,SPEEDOMETER

92028-1066

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92143

COLLAR,FR AXLE,L=43.5

92143-1301

1
Out of stock

92143A

COLLAR,FR AXLE,L=25.5

92143-1359

1
Out of stock

92143B

COLLAR,FR HUB,L=86.5

92143-1479

1
Out of stock
