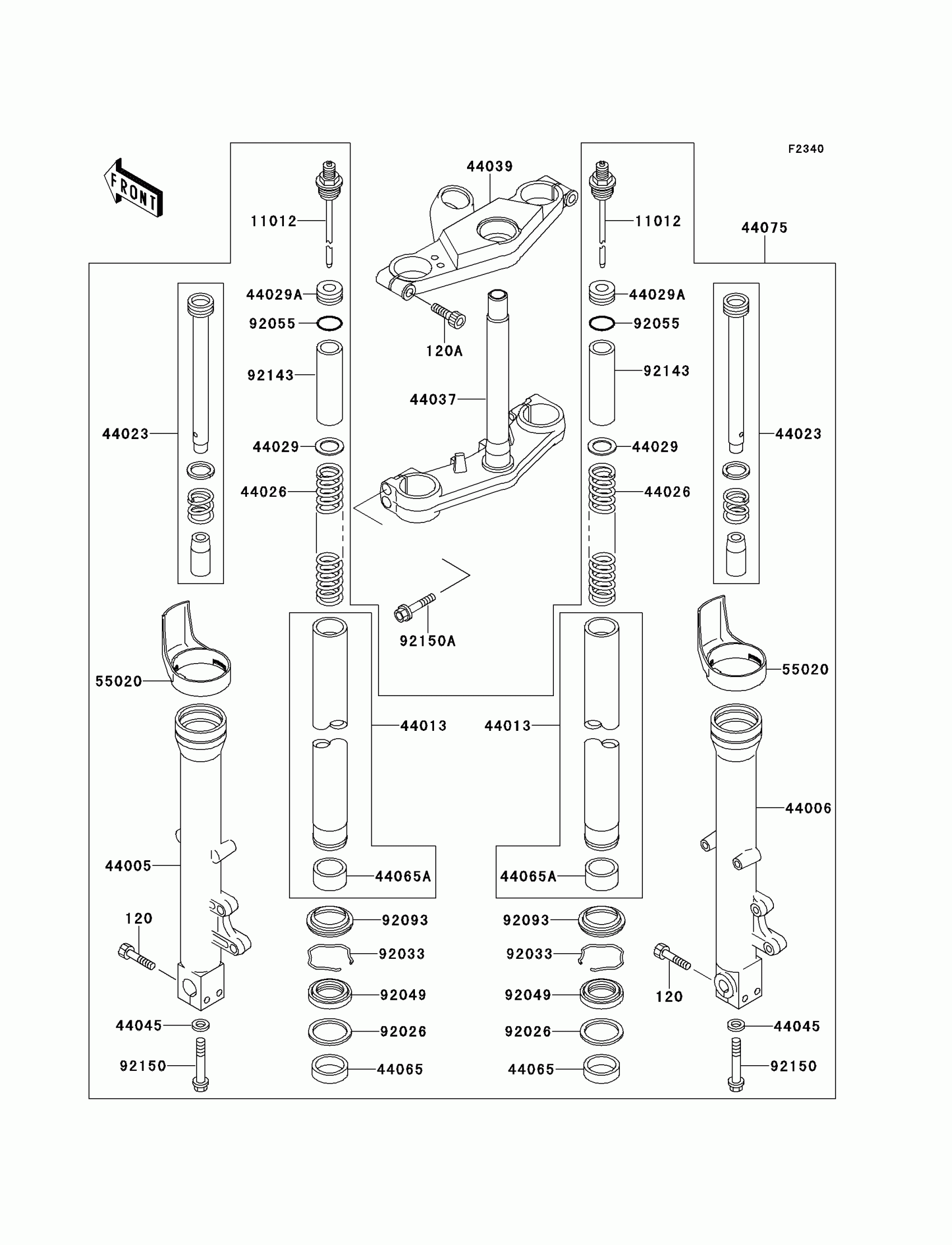

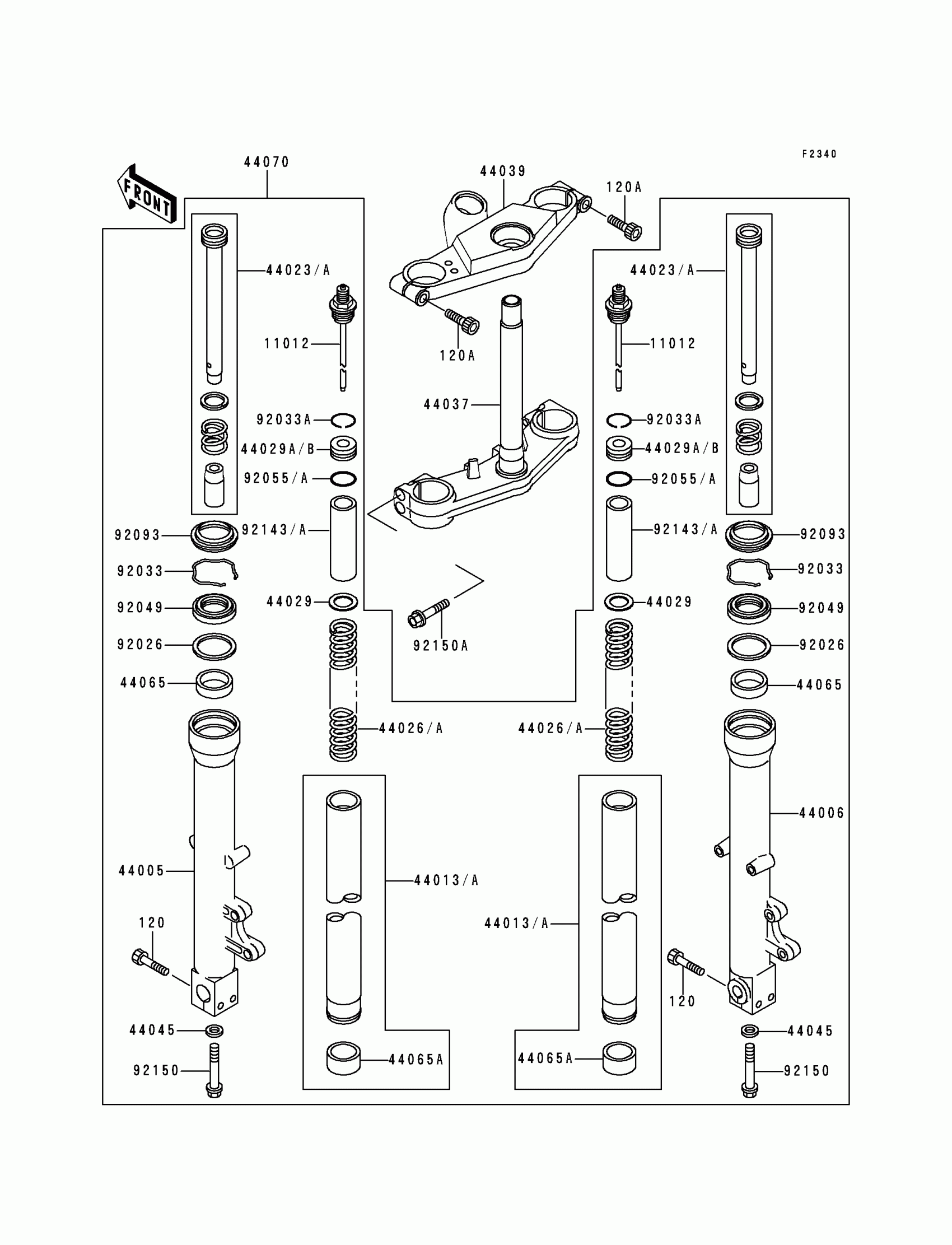

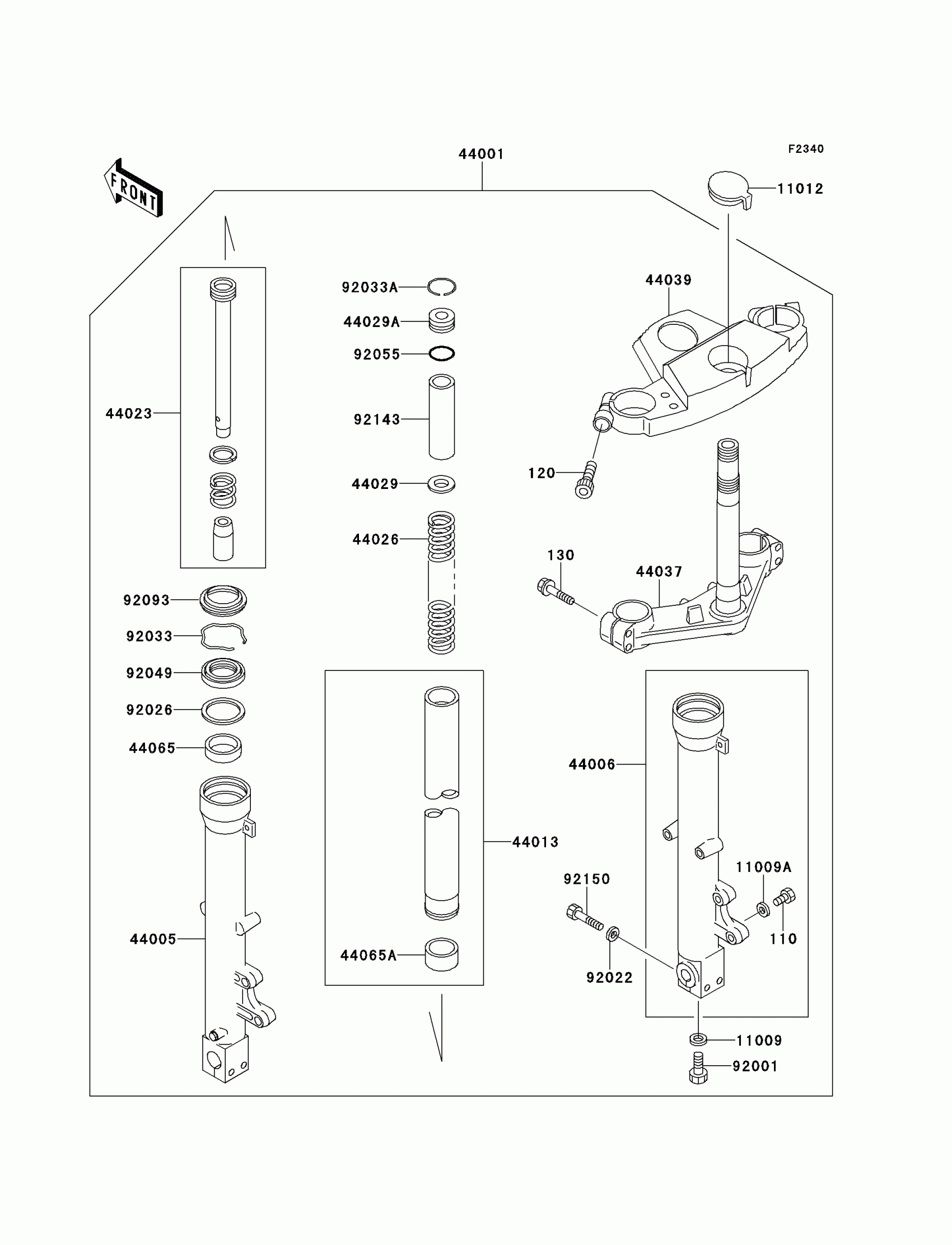

Kawasaki Ninja® ZX™-6 Front Fork Diagram

#

Description
Price

110

BOLT HEX HEAD 6X8

110B0608

Unavailable

120

BOLT-SOCKET,8X40

120P0840

Unavailable

130

BOLT-FLANGED,8X40

130J0840

Unavailable

11009

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

11009A

GASKET,DRAIN PLUG

44045-052

$7.12

11012

CAP,FORK,G.GRAY

11012-1733-GD

Unavailable

44001

FORK-FRONT,BLACK

44001-1757-10

$1,722.69

44005

PIPE-LEFT FORK OUTER,BLACK

44005-1303-10

$439.27

44006

PIPE-RIGHT FORK OUTER,BLACK

44006-1299-10

$439.27

44013

PIPE-FORK INNER

44013-1323

Unavailable

44023

CYLINDER-COMP-FORK

44023-1072

$166.91

44026

SPRING-FRONT FORK

44026-1468

$71.26

44029

SEAT-FORK SPRING

44029-1131

$10.00

44029A

SEAT-FORK SPRING

44029-1143

$39.50

44037

HOLDER-FORK UNDER

44037-1264

$350.93

44039

HOLDER-FORK UPPER,G.GRAY

44039-1197-GD

$254.14

44065

BUSHING-FRONT FORK

44065-1079

$20.25

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1087

$26.61

92001

BOLT,FORK CYLINDER

92001-1464

$4.67

92022

WASHER

92022-1969

Unavailable

92026

SPACER,FORK OUTER

92026-1276

$7.25

92033

RING-SNAP

92033-1222

$4.88

92033A

RING-SNAP

92033-1273

$3.85

92049

SEAL-OIL,FORK

92049-1363

$21.55

92055

RING-O,FORK TOP

92055-1420

$4.18

92093

SEAL,FORK

92093-1268

$20.76

92143

COLLAR,FORK

92143-1434

$15.07

92150

BOLT,SOCKET,8MM

92150-1183

$3.29
