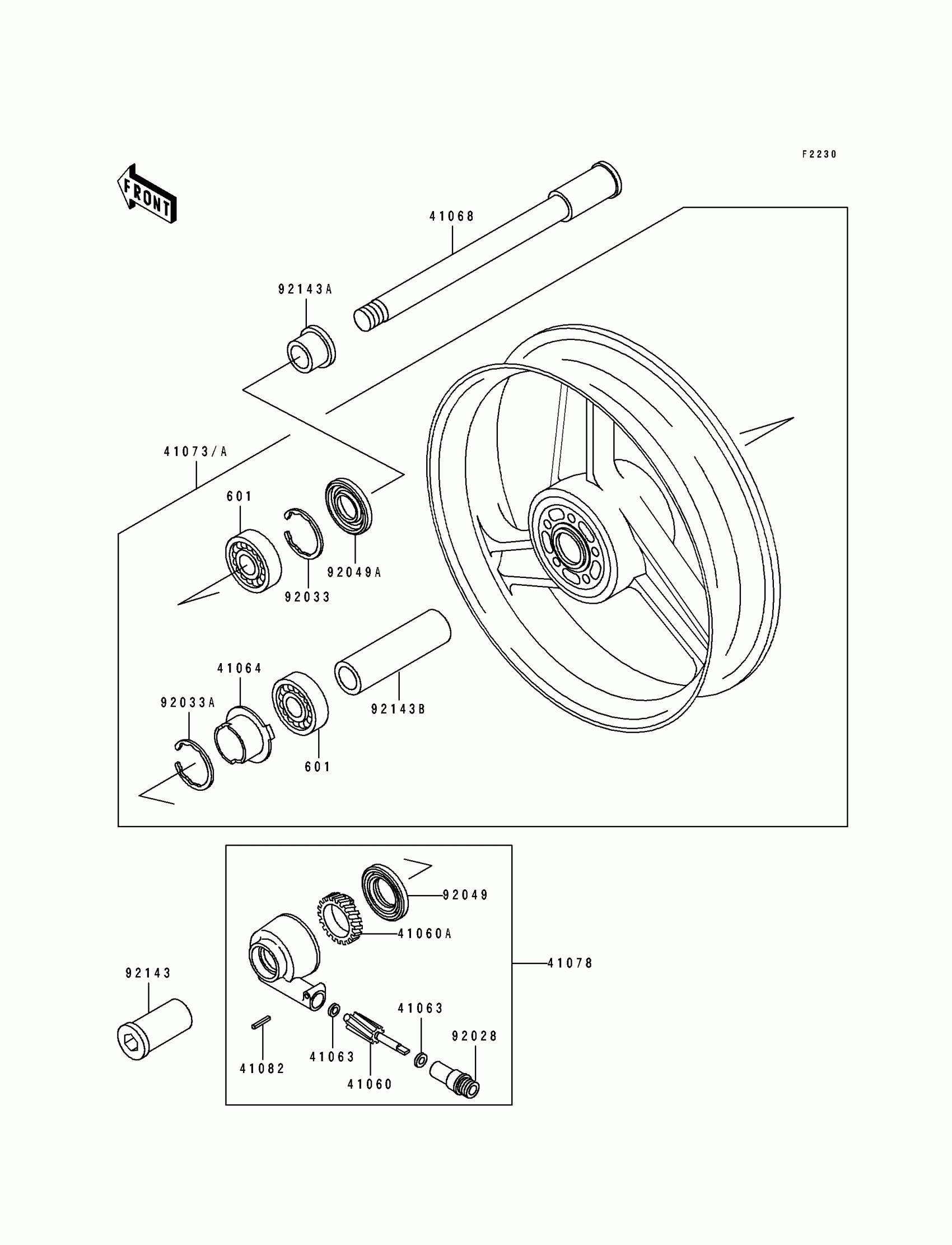

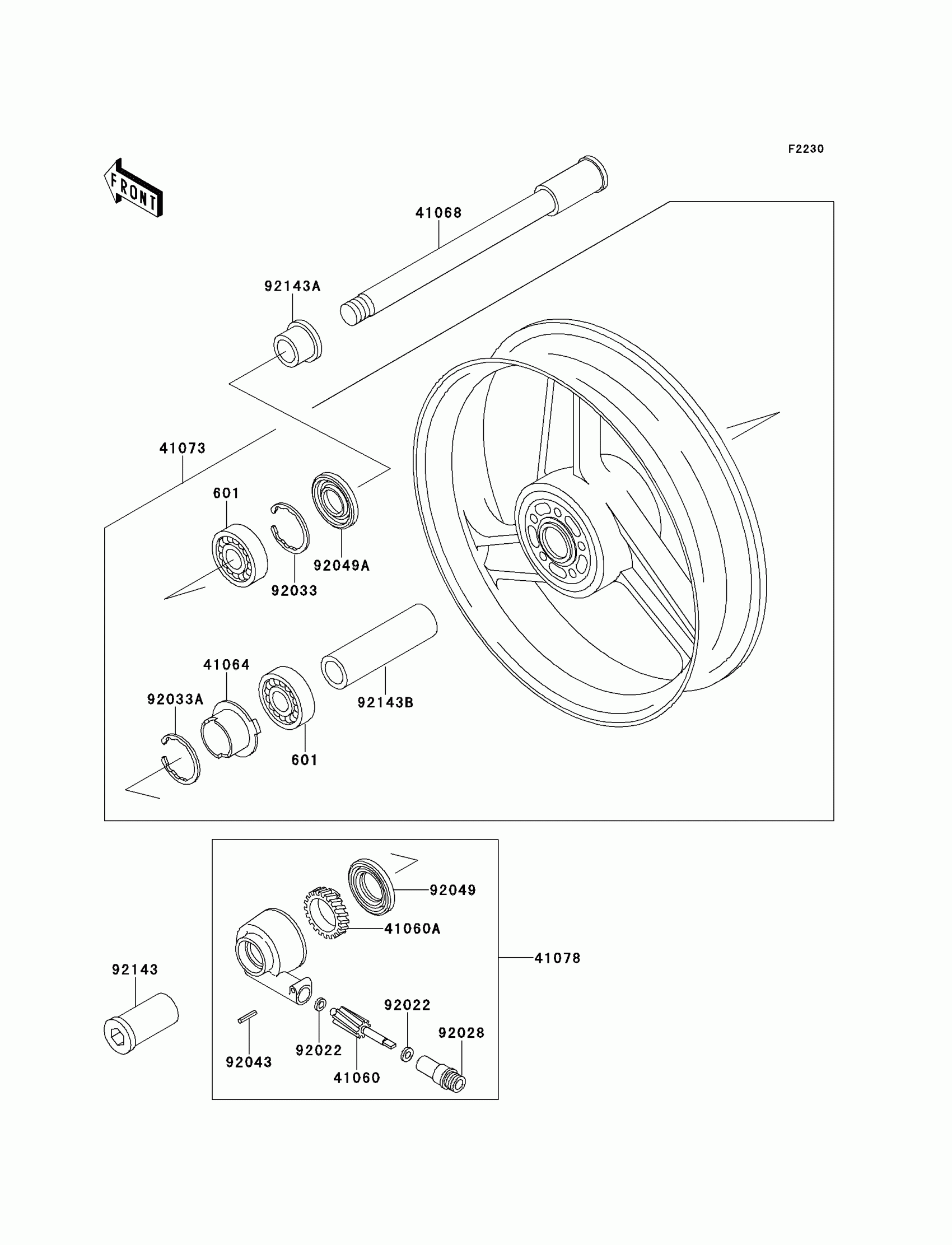

Kawasaki Ninja® ZX™-6 Front Hub Diagram

Description

Price

601

BEARING-BALL,#6203UUC3

601B6203UU

$22.99

41060

GEAR-METER SCREW,9T

41060-1123

$20.35

41060A

GEAR-METER SCREW,23T

41060-1124

$30.88

41064

RECEIVER-SPEEDOMETER

41064-1006

$14.92

41068

AXLE,FR

41068-1255

$83.86

41073

WHEEL-ASSY,FR,G.GRAY

41073-1467-GE

Unavailable

41078

CASE-ASSY-METER GEAR

41078-1070

$111.19

92022

WASHER,5.1X9X0.4

41063-001

$4.69

92028

BUSHING,SPEEDOMETER

92028-1066

$11.29

92033

RING-SNAP,40MM

92033-1040

$5.90

92033A

RING-SNAP,42MM

92033-1041

$6.16

92043

PIN,SPRING

41082-001

$3.92

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92049A

SEAL-OIL,AG1258AO

92049-1110

$9.28

92143

COLLAR,FR AXLE NUT,L=42.5

92143-1206

$32.96

92143A

COLLAR,FR AXLE,L=19.5

92143-1335

$27.35

92143B

COLLAR,FR HUB,L=87.5

92143-1392

Unavailable
