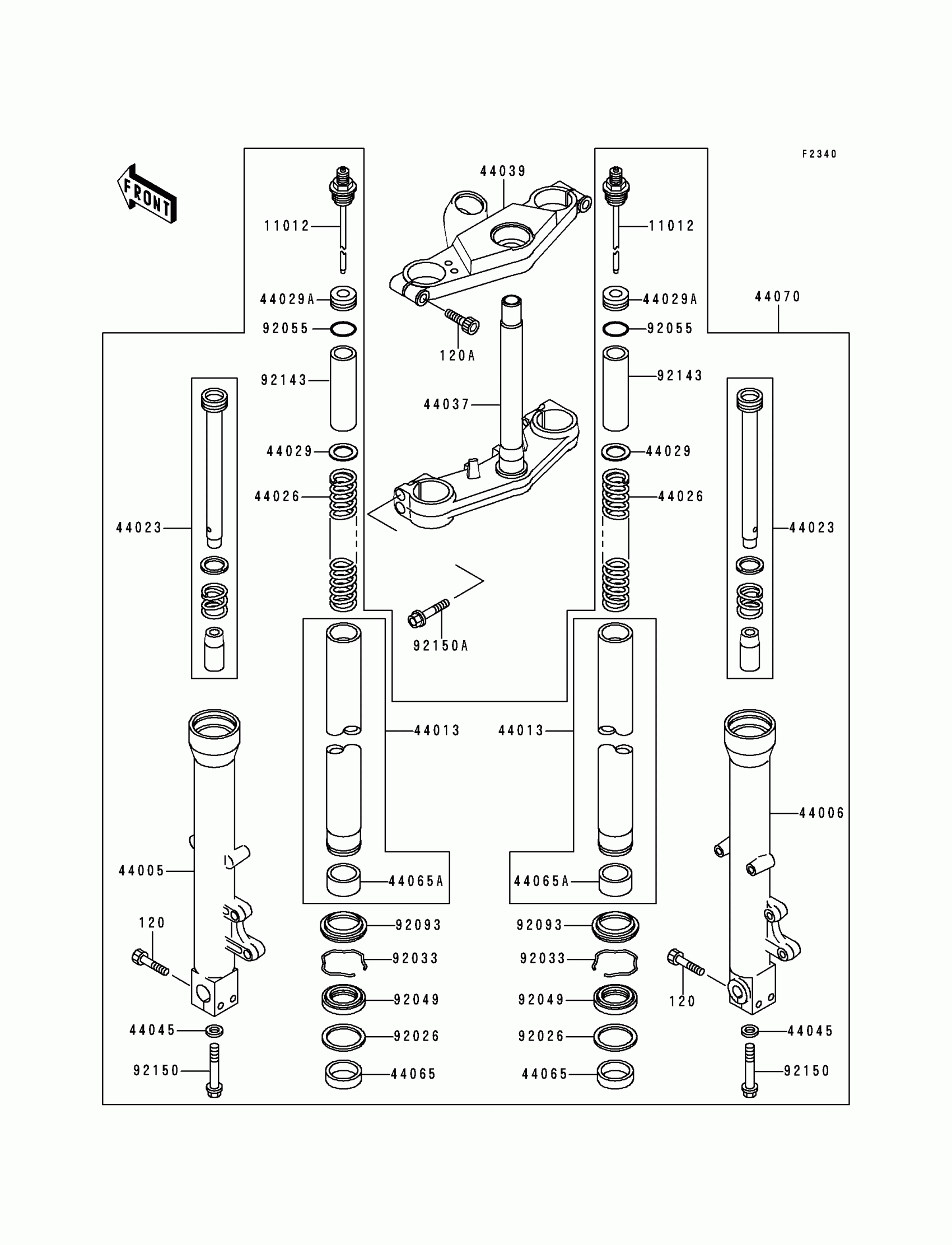

Kawasaki Ninja® ZX™-6 Front Fork(ZX600-E4/E5) Diagram

Description

Price

120

BOLT-SOCKET,8X40

120P0840

$2.62

120A

BOLT-SOCKET,8X40

120S0840

$4.44

11012

CAP,FORK BOLT

11012-1928

$15.59

44005

PIPE-LEFT FORK OUTER,G.GRAY

44005-1323-GD

Unavailable

44006

PIPE-RIGHT FORK OUTER,G.GRAY

44006-1321-GD

Unavailable

44013

PIPE-FORK INNER

44013-1409

$350.75

44023

CYLINDER-COMP-FORK

44023-1096

$169.22

44026

SPRING-FRONT FORK

44026-1583

$72.91

44029

SEAT-FORK SPRING

44029-1131

$10.36

44029A

SEAT-FORK SPRING

44029-1158

$26.61

44037

HOLDER-FORK UNDER

44037-1311

$387.35

44039

HOLDER-FORK UPPER,C.GRAY

44039-1251-EZ

$290.64

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK

44065-1079

$24.34

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1087

$30.09

44070

DAMPER-ASSY,FORK,G.GRAY

44070-1401-GD

Unavailable

92026

SPACER,FORK OUTER

92026-1276

$9.51

92033

RING-SNAP

92033-1222

$6.51

92049

SEAL-OIL,FORK

92049-1363

$25.52

92055

RING-O,FORK TOP

92055-1420

$5.52

92093

SEAL,FORK

92093-1268

$24.97

92143

COLLAR,FORK,L=100

92143-1758

$22.14

92150

BOLT,SOCKET,8X18

92150-1432

$9.91

92150A

BOLT,SOCKET,8MM

92150-1613

$4.76
