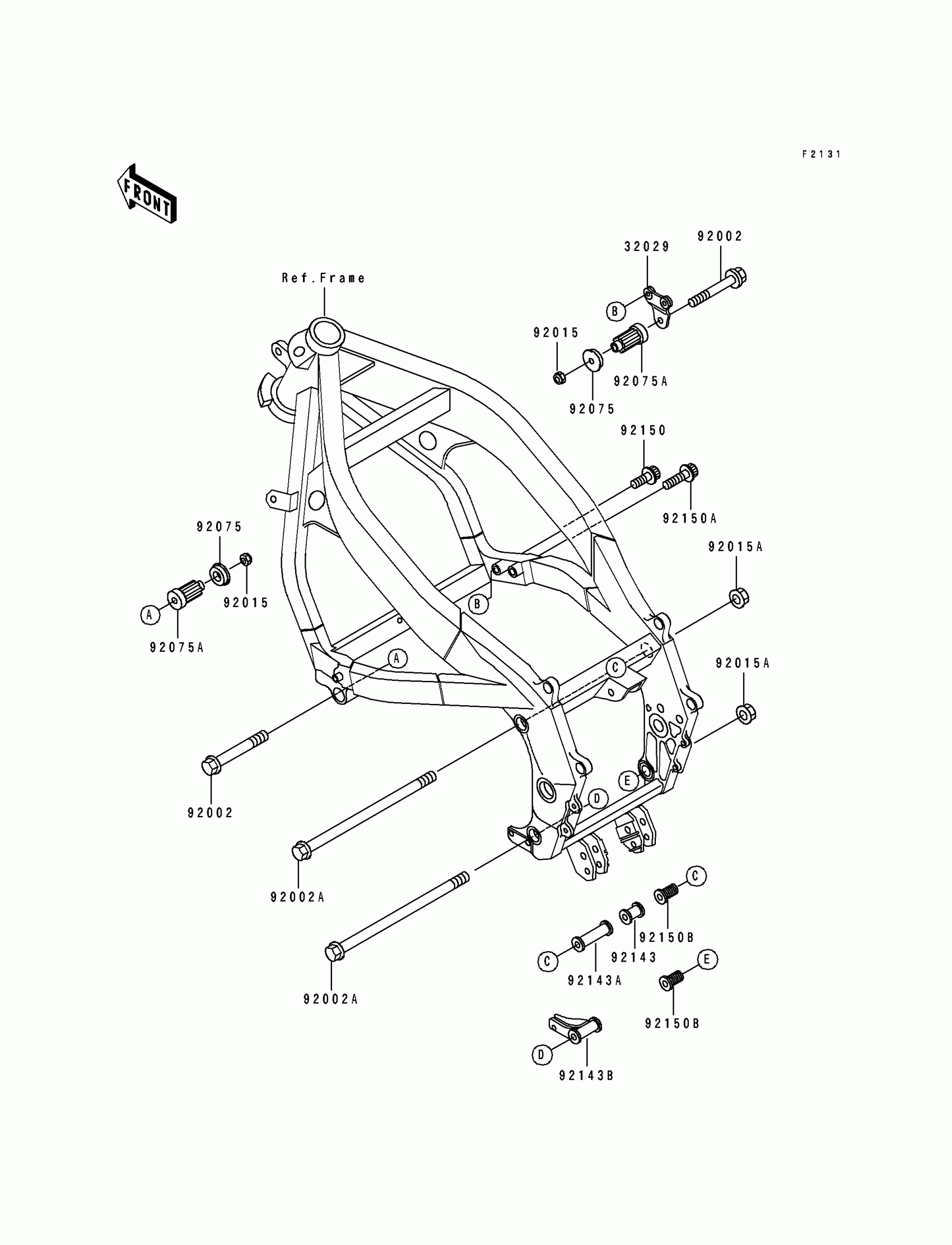

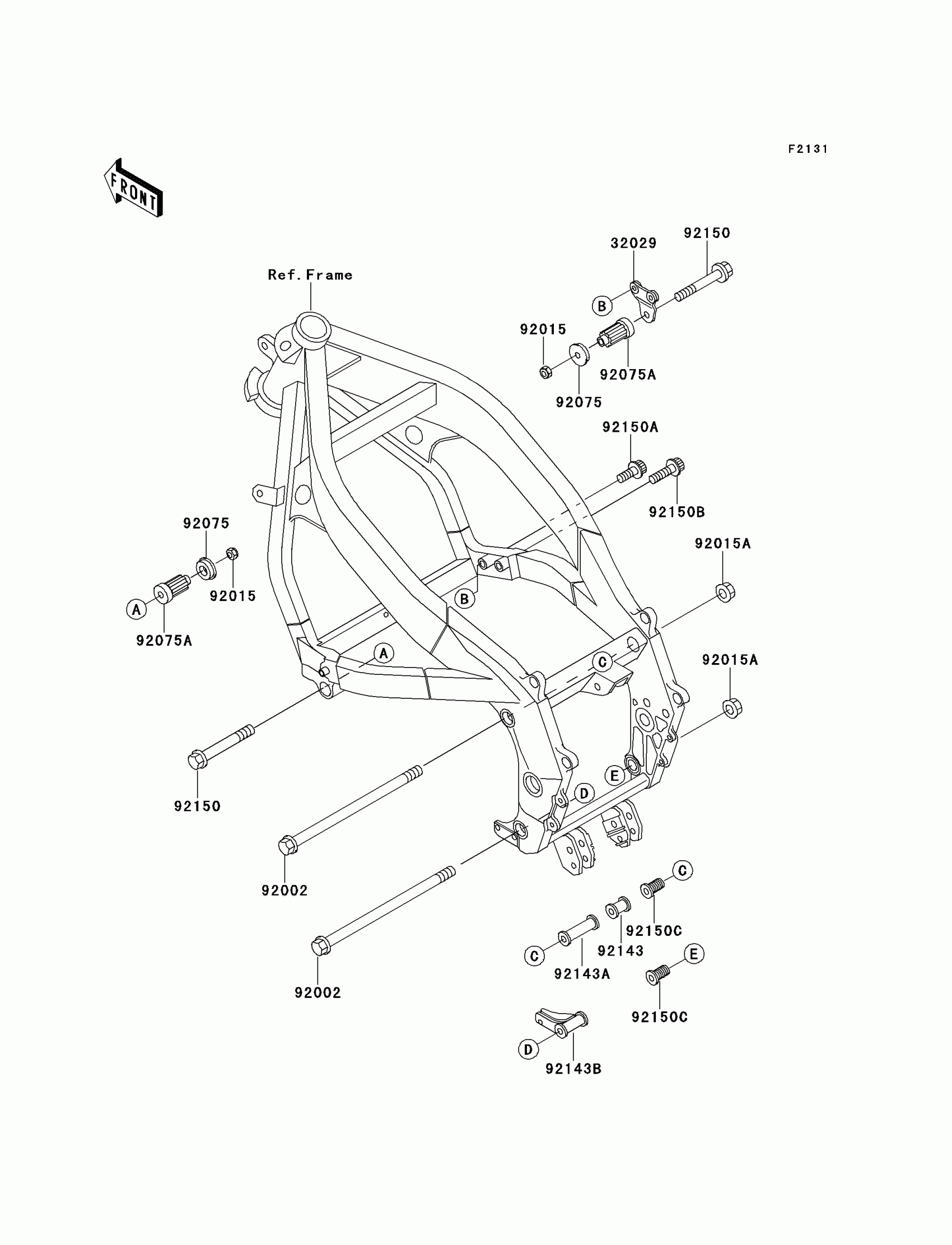

Kawasaki Ninja® ZX™-6 Frame Fitting Diagram

Description

Price

32029

BRACKET-ENGINE,FR,RH

32029-1713

$16.00

92002

BOLT,FLANGED,10X87

92002-1298

Unavailable

92002A

BOLT,FLANGED,10X280

92002-1530

$23.86

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT,FLANGED,10MM

92015-1428

$5.00

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$17.60

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$31.88

92143

COLLAR,L=34

92143-1276

$17.09

92143A

COLLAR,L=72.5

92143-1421

$19.30

92143B

COLLAR,ENGINE MOUNT

92143-1439

$26.49

92150

BOLT,SOCKET,8X20

92150-1155

$5.52

92150A

BOLT,SOCKET,8X30

92150-1156

$6.63

92150B

BOLT,20X30

92150-1264

$20.07
