1995 Kawasaki Ninja® ZX™-6 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1995 Kawasaki Ninja® ZX™-6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

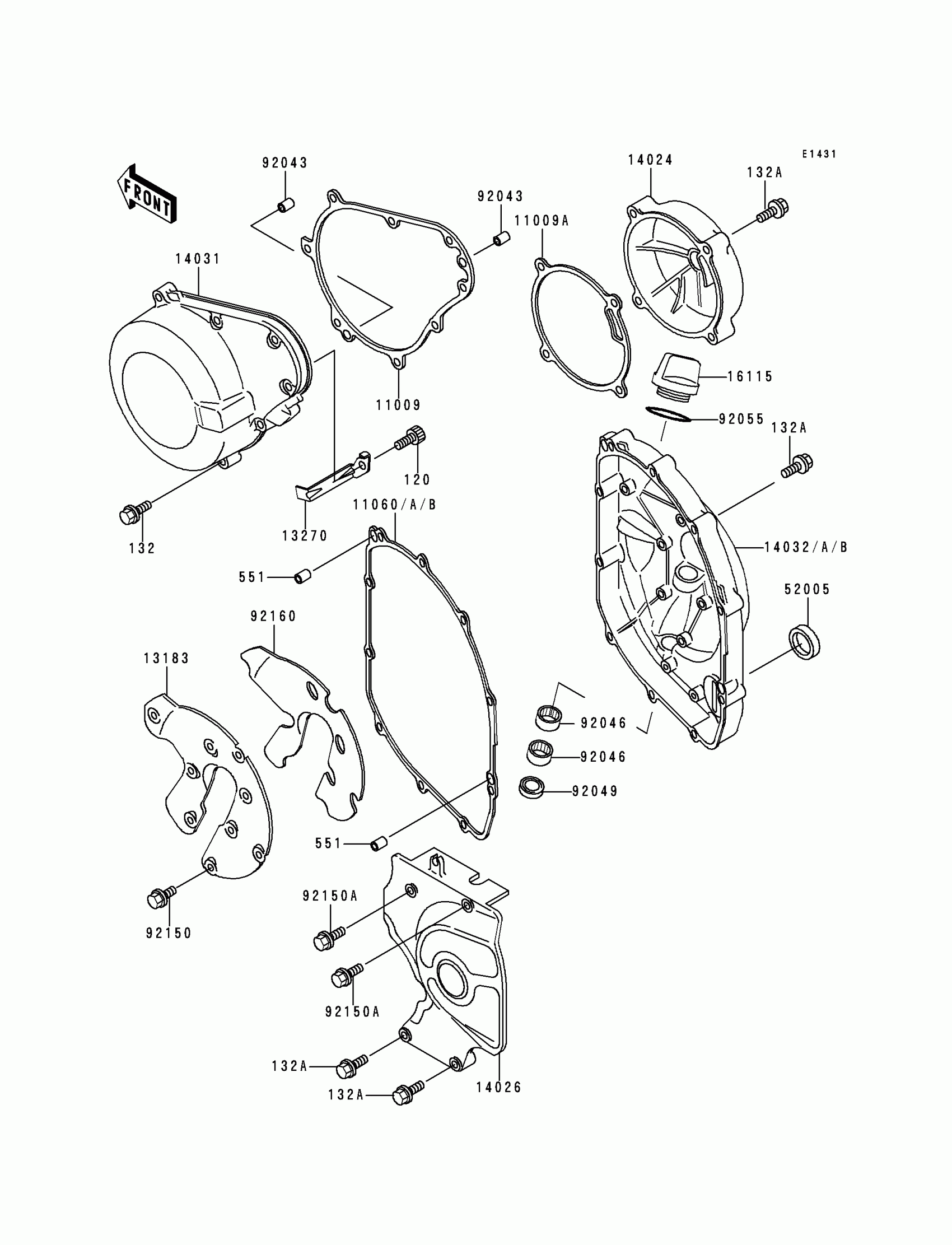

1995 Kawasaki Ninja® ZX™-6 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X10

120P0610

1
Out of stock

132

1

$5.42

In stock

132A

1

$4.61

In stock

551

PIN-DOWEL,8X14

551A0814

1
Out of stock

11009

GASKET,GENERATOR COVER

11009-1868

1
Out of stock

11009A

GASKET,PULSING COVER

11009-1869

1
Out of stock

11060

GASKET,CLUTCH COVER

11060-1639

1
Out of stock

13183

PLATE

13183-1532

1
Out of stock

13270

PLATE,LEAD WIRE

13270-1475

1

$4.92

In stock

14024

COVER,PULSING

14024-1881

1

$74.19

In stock

14026

COVER-CHAIN

14026-1216

1

$167.37

In stock

14031

COVER-GENERATOR

14031-1247

1

$151.66

In stock

14032A

COVER-CLUTCH

14032-1388

1

$232.53

In stock

16115

CAP-OIL FILLER

16115-1009

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1057

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92150

BOLT,5X8

92150-1406

1
Out of stock

92150A

BOLT,6X50

92150-1885

1
Out of stock

92160

DAMPER

92160-1195

1
Out of stock
