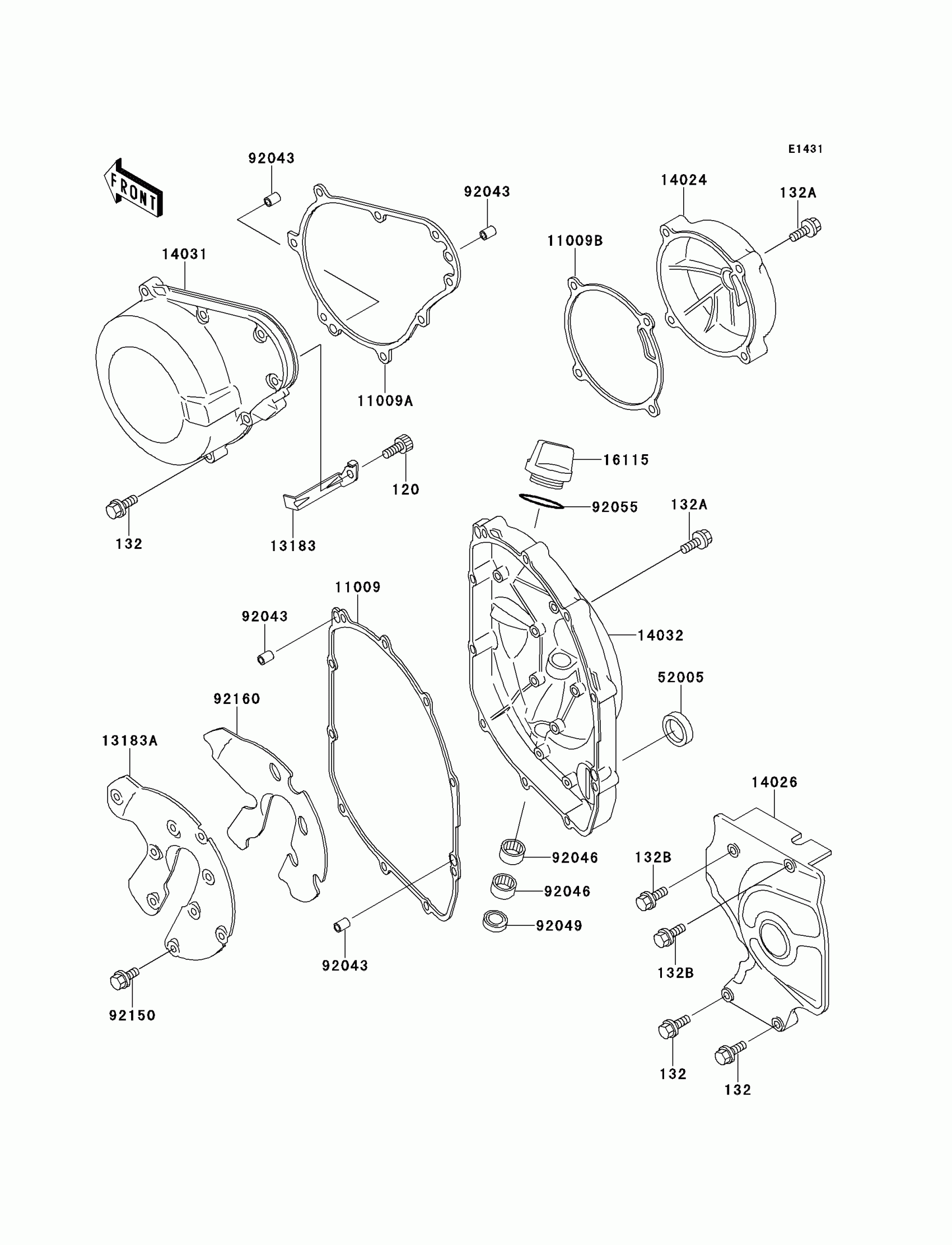

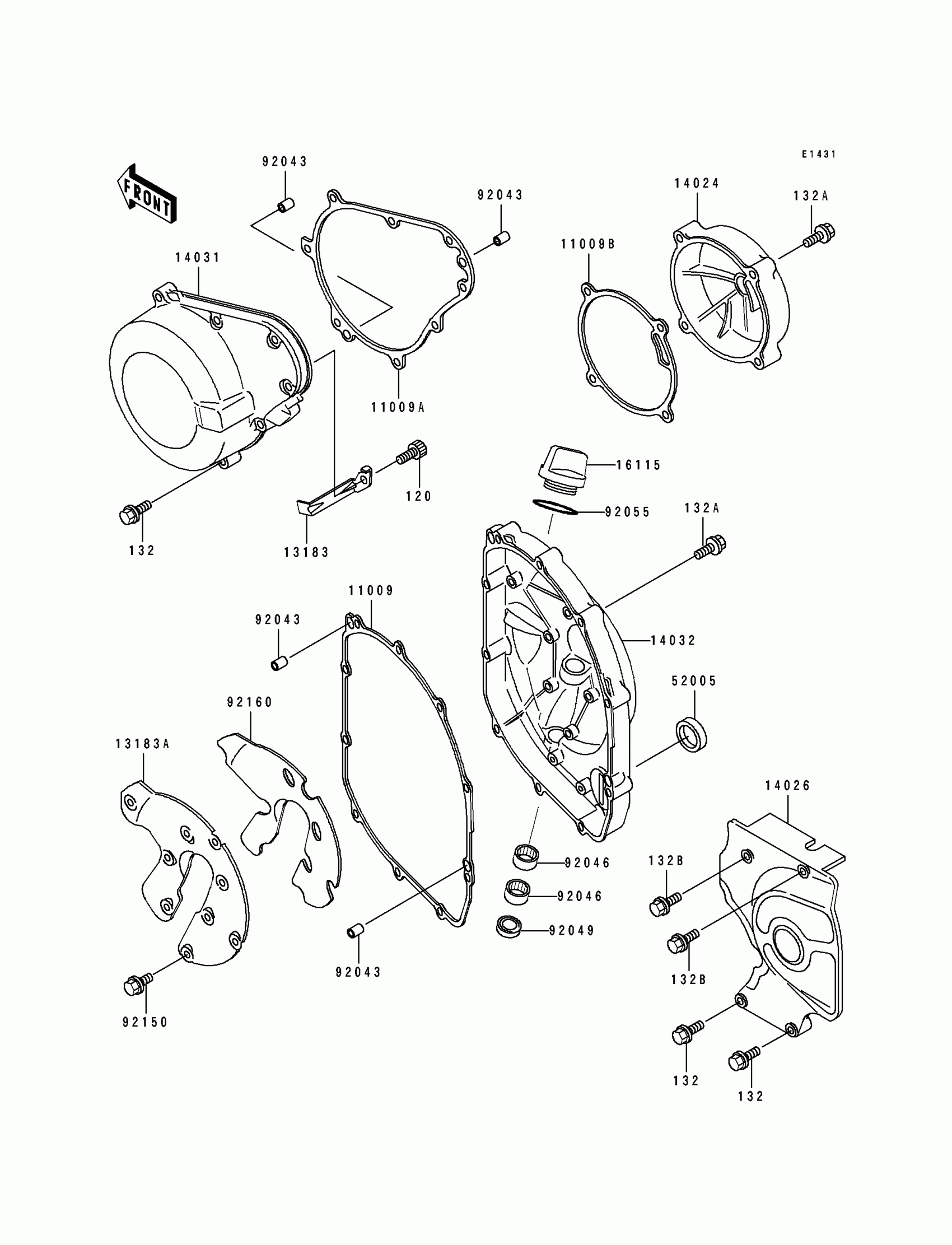

Kawasaki Ninja® ZX™-6 Engine Cover Diagram

Description

Price

120

BOLT-SOCKET,6X10

120P0610

$1.60

132

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

132A

BOLT-FLANGED-SMALL,6X35

132G0635

$1.92

132B

BOLT-FLANGED-SMALL,6X45

132G0645

$4.15

11009

GASKET,CLUTCH COVER

11009-1867

Unavailable

11009A

GASKET,GENERATOR COVER

11009-1868

$10.97

11009B

GASKET,PULSING COVER

11009-1869

$8.12

13183

PLATE,LEAD WIRE

13183-1529

Unavailable

13183A

PLATE

13183-1532

$13.32

14024

COVER,PULSING

14024-1881

$72.80

14026

COVER-CHAIN

14026-1160

Unavailable

14031

COVER-GENERATOR

14031-1247

$148.53

14032

COVER-CLUTCH

14032-1286

$293.41

16115

CAP-OIL FILLER

16115-1009

$14.30

52005

GAUGE,OIL LEVEL

52005-1057

$25.24

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,TB12205.5

92049-1271

$9.28

92055

RING-O,31.5X2.6

92055-049

$4.31

92150

BOLT,5X8

92150-1406

$3.94

92160

DAMPER

92160-1195

$36.23
