Description

Price

130

BOLT-FLANGED,6X10

130B0610

$0.48

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

670

O RING,14MM

670B2014

$1.19

11009

GASKET,14.3X20X1

11009-1238

$3.89

13183

PLATE,BREATHER

13183-1531

$75.63

14001

SET-CRANKCASE

14001-5281

Unavailable

14013

RING-POSITION

14013-004

$10.19

14013A

RING-POSITION,T=1.98

14013-1004

$4.96

14014

PLATE-POSITION

14014-1102

$14.64

26011

WIRE-LEAD

26011-1371

$21.29

27010

SWITCH,OIL PRESSURE

27010-1155

$40.13

32150

PIPE,OIL

32150-1619

$28.99

32150A

PIPE,OIL

32150-1620

$44.83

92002

BOLT,6X10

92002-1449

$4.11

92009

SCREW,TAPPING,5X8

92009-1603

$4.58

92037

CLAMP

92037-1724

$5.33

92043

PIN,DOWEL,6X16

92042-016

$5.00

92043A

PIN,8.2X10X14

92043-1264

$0.64

92046

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92049

SEAL-OIL,TC32528

92049-1307

$10.40

92049A

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,20X2

92055-1146

$8.58

92055A

RING-O,5.5X1.5

92055-1343

$0.64

92066

PLUG,18X9

92066-066

$10.97

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92066B

PLUG

92066-1110

$6.51

92066C

PLUG,PT3/8X12

92066-1252

$6.51

92066D

PLUG,14X8

92066-1273

$8.03

92170

CLAMP

92170-1159

$3.90

92170A

CLAMP

92170-2043

$1.19

92190

TUBE,L=127

92190-1107

$8.96

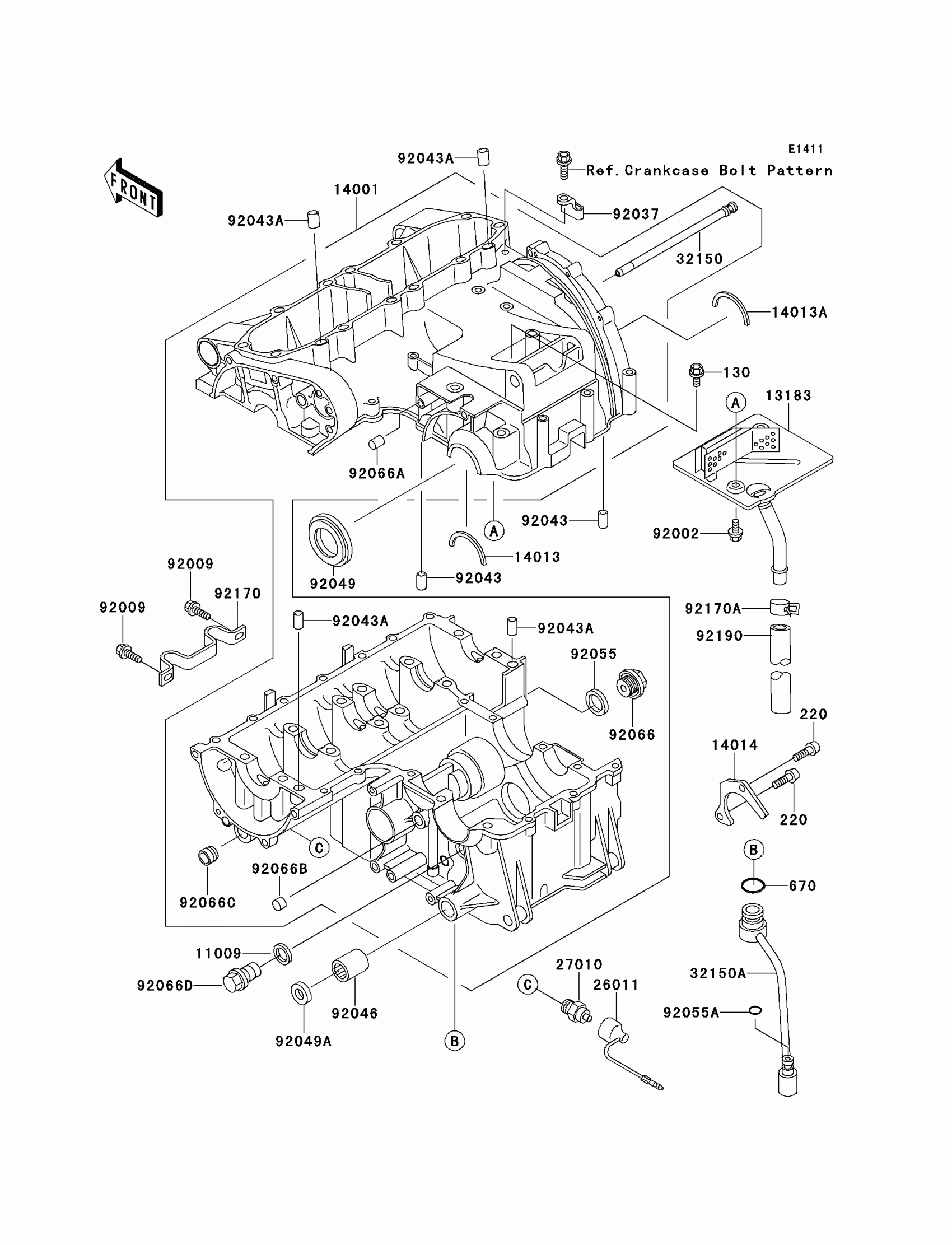

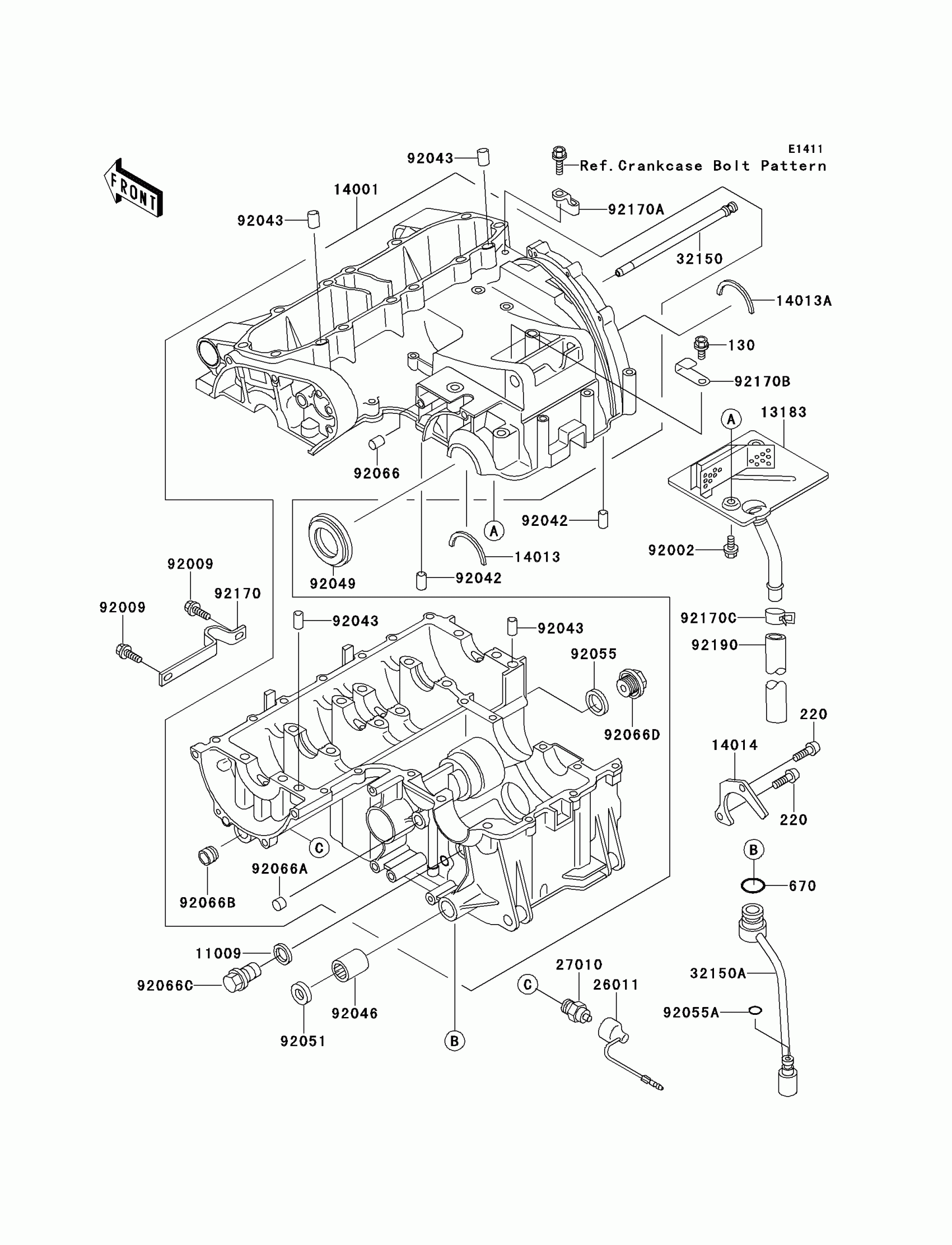

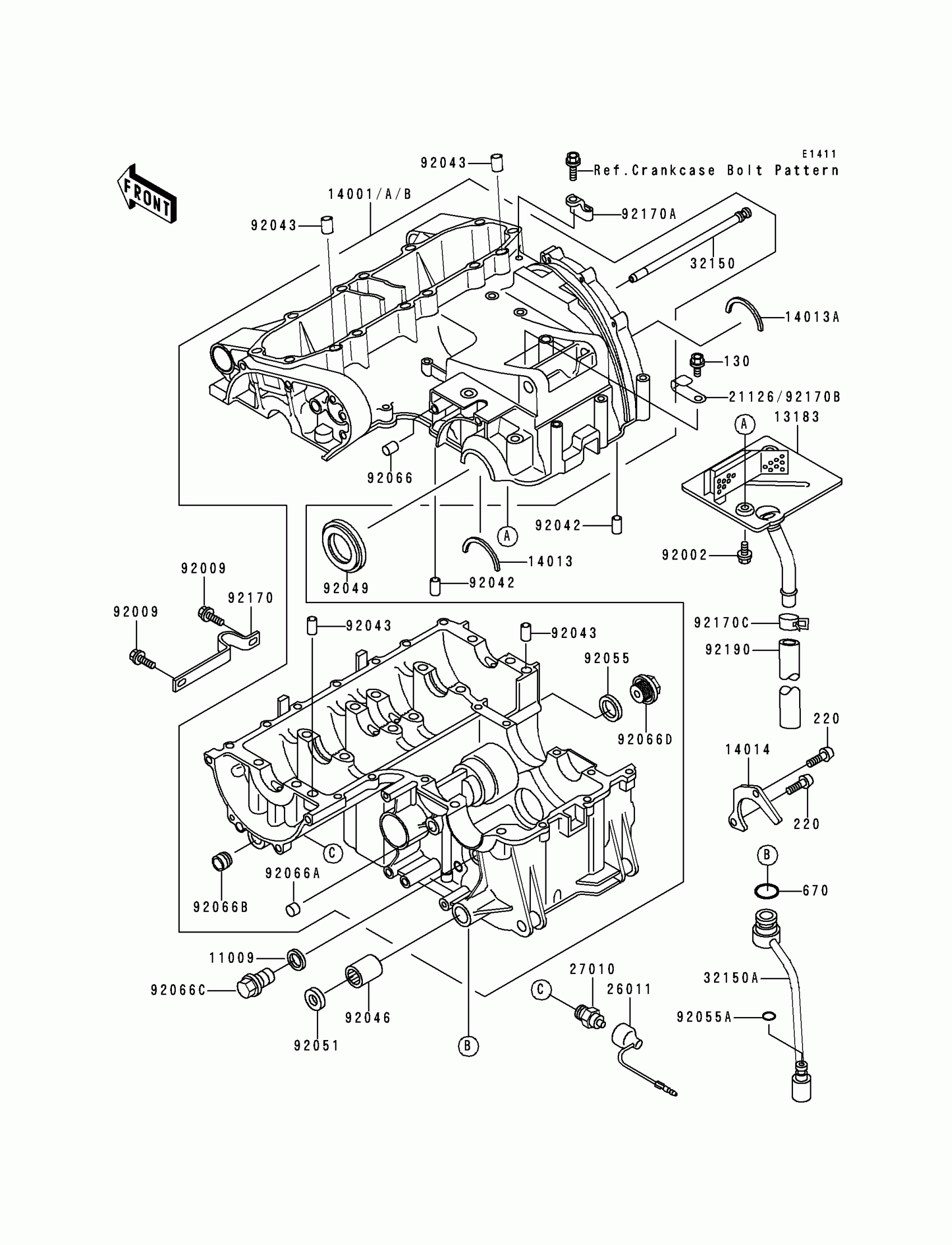

Kawasaki Ninja® ZX™-6 Crankcase Diagram

BOLT-FLANGED,6X10

SCREW-PAN-CROS,6X14

O RING,14MM

GASKET,14.3X20X1

PLATE,BREATHER

SET-CRANKCASE

RING-POSITION

RING-POSITION,T=1.98

PLATE-POSITION

WIRE-LEAD

SWITCH,OIL PRESSURE

PIPE,OIL

PIPE,OIL

BOLT,6X10

SCREW,TAPPING,5X8

CLAMP

PIN,DOWEL,6X16

PIN,8.2X10X14

BEARING-NEEDLE,HK1312

SEAL-OIL,TC32528

SEAL-OIL,TB13225.5

RING-O,20X2

RING-O,5.5X1.5

PLUG,18X9

PLUG,OIL LINE,7.2X8

PLUG

PLUG,PT3/8X12

PLUG,14X8

CLAMP

CLAMP

TUBE,L=127
