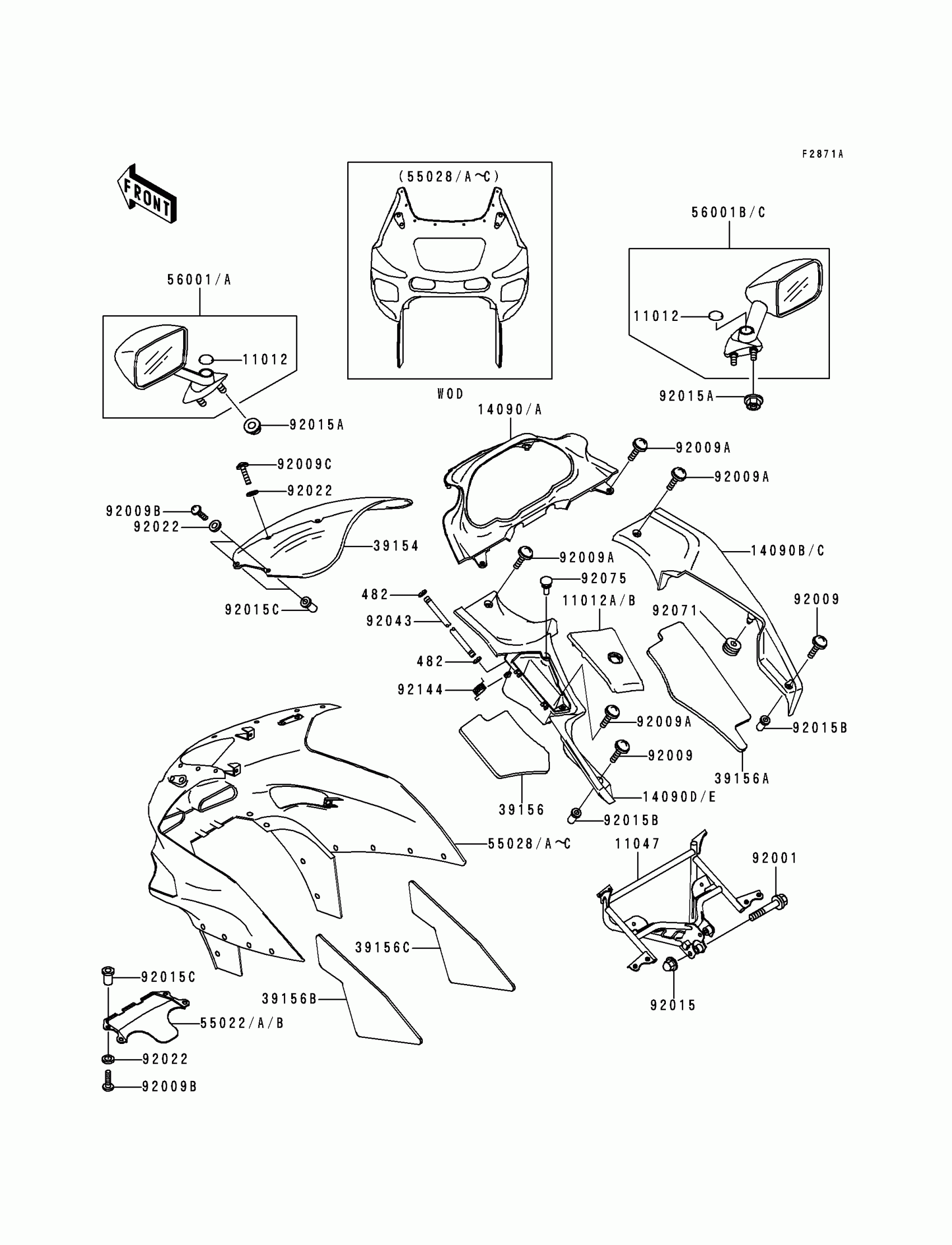

Kawasaki Ninja® ZX™-6 Cowling(ZX600-E5) Diagram

#

Description
Price

11012

CAP,MIRROR,BLACK

11012-1751-6Z

$4.74

11047

BRACKET,UPP COWLING

11047-1935

$266.14

39154

WINDSHIELD

39154-1121

$246.53

39156

PAD,INNER COWLING,LH

39156-1364

Unavailable

39156A

PAD,INNER COWLING,RH

39156-1365

Unavailable

39156B

PAD,UPP COWLING,LH

39156-1366

Unavailable

39156C

PAD,UPP COWLING,RH

39156-1367

Unavailable

55022

COVER-HEAD LAMP,L.W.GREEN

55022-1075-DS

Unavailable

482

CIRCLIP-TYPE-E,3MM

482L3000

$4.01

56001

MIRROR-ASSY,LH,L.W.GREEN

56001-1394-DS

Unavailable

56001A

MIRROR-ASSY,LH,C.W.RED

56001-1394-H3

Unavailable

56001B

MIRROR-ASSY,RH,L.W.GREEN

56001-1395-DS

Unavailable

56001C

MIRROR-ASSY,RH,C.W.RED

56001-1395-H3

Unavailable

92001

BOLT,FLANGED,8X45

92001-1613

$5.24

92009

SCREW,6X22,BLACK

92009-1256

$2.78

92009A

SCREW,6X16

92009-1621

Unavailable

92009B

SCREW,5X16,BLACK

92009-1654

$3.13

92009C

SCREW,5X20,BLACK

92009-1656

$3.96

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015A

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015B

NUT

92015-1700

$8.58

92015C

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92043

PIN,4X124.7

92043-1477

$11.07

92071

GROMMET

92071-056

$4.26

92075

DAMPER,6X10X15

92075-1808

$1.39

92144

SPRING

92144-1697

$8.68

11012A

CAP,INNER COWLING COVER,LH,GRA

11012-1862-11

Unavailable

11012B

CAP,INNER COWLING COVER,LH,GRA

11012-1862-12

$27.43

14090

COVER,INNER COWLING,CNT,GRAY

14090-1289-11

Unavailable

14090A

COVER,INNER COWLING,CNT,GRAY

14090-1289-12

$48.45

14090B

COVER,INNER COWLING,RH,GRAY

14090-1291-11

Unavailable

14090C

COVER,INNER COWLING,RH,GRAY

14090-1291-12

$93.55

14090D

COVER,INNER COWLING,LH,GRAY

14090-1358-11

Unavailable

14090E

COVER,INNER COWLING,LH,GRAY

14090-1358-12

$93.55

55022A

COVER-HEAD LAMP,C.W.RED

55022-1075-H3

Unavailable

55022B

COVER-HEAD LAMP,C.W.RED

55022-1075-TF

Unavailable

55028

COWLING,UPP,L.W.GREEN

55028-1292-DS

Unavailable

55028A

COWLING,UPP,C.W.RED

55028-1292-H3

Unavailable

55028B

COWLING,UPP,C.W.RED

55028-1292-TF

Unavailable

55028C

COWLING,UPP,L.W.GREEN

55028-1292-24

Unavailable
