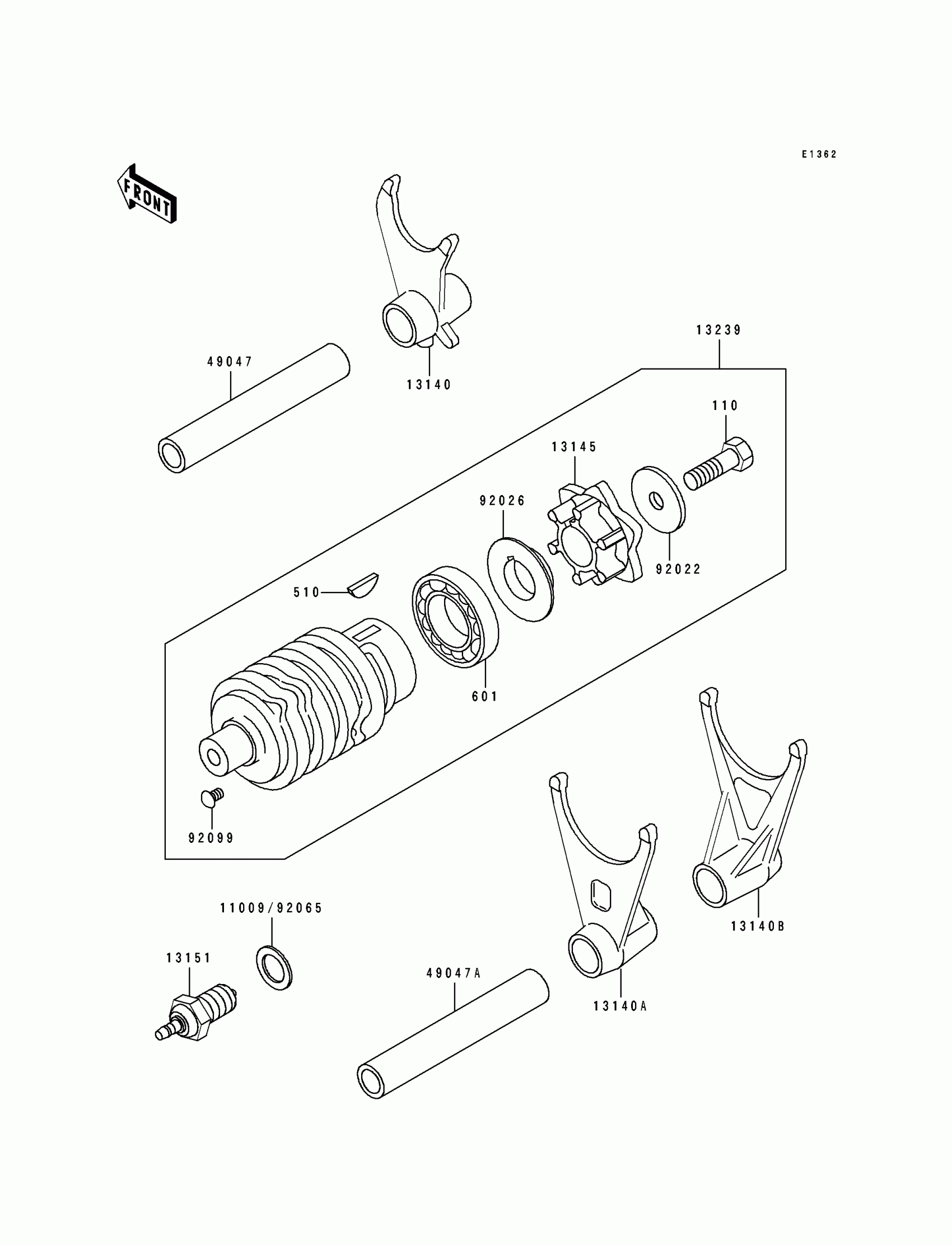

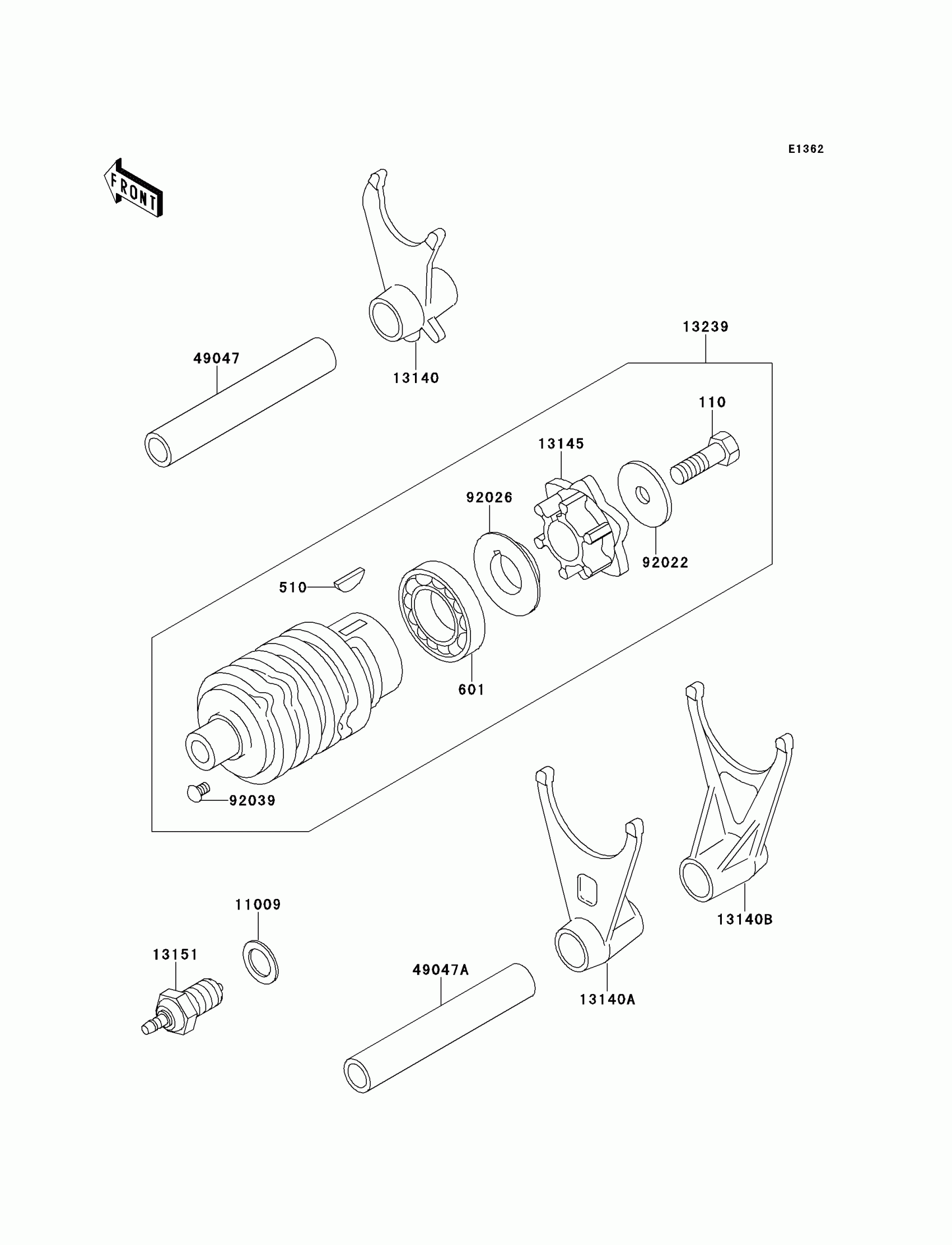

Kawasaki Ninja® ZX™-6 Change Drum/Shift Fork Diagram

Description

Price

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

13140

FORK-SHIFT,INPUT

13140-1153

$109.79

13140A

FORK-SHIFT,OUTPUT

13140-1154

$109.79

13140B

FORK-SHIFT,OUTPUT

13140-1191

$109.79

13145

CAM-CHANGE DRUM

13145-1059

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1167

Unavailable

49047

ROD-SHIFT

49047-1070

$29.43

49047A

ROD-SHIFT

49047-1076

$28.37

92022

WASHER,6.5X24X2

92022-1690

$3.92

92026

SPACER,CHANGE DRUM

92026-1380

$15.39

92065

GASKET,10.5X16X1

92065-058

$3.96

92099

RIVET

92099-001

$3.89

110

BOLT,6X20

110P0620

$4.46

510

KEY-WOODRUFF

510A3200

$2.70

601

BEARING-BALL

601A6005

$13.82
