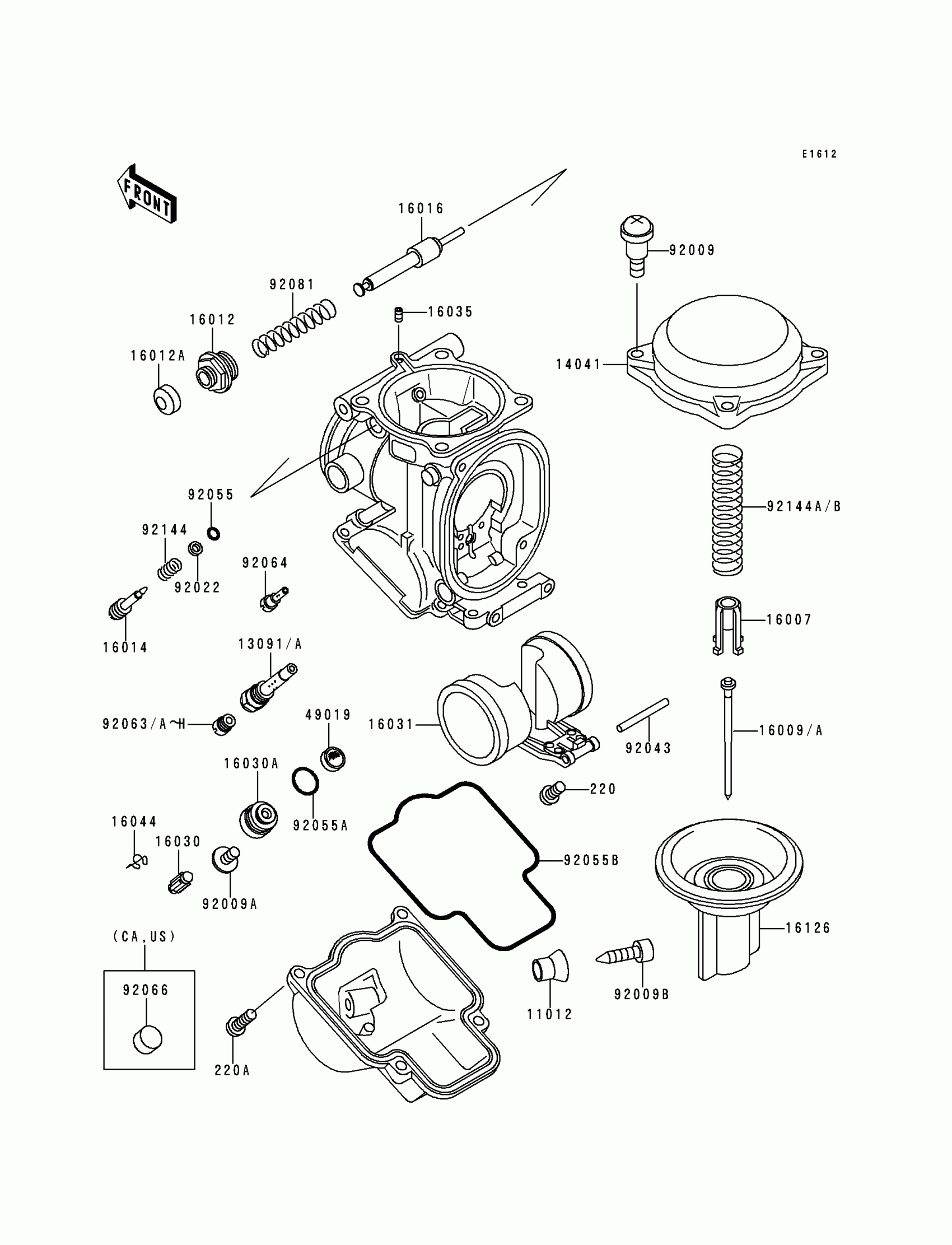

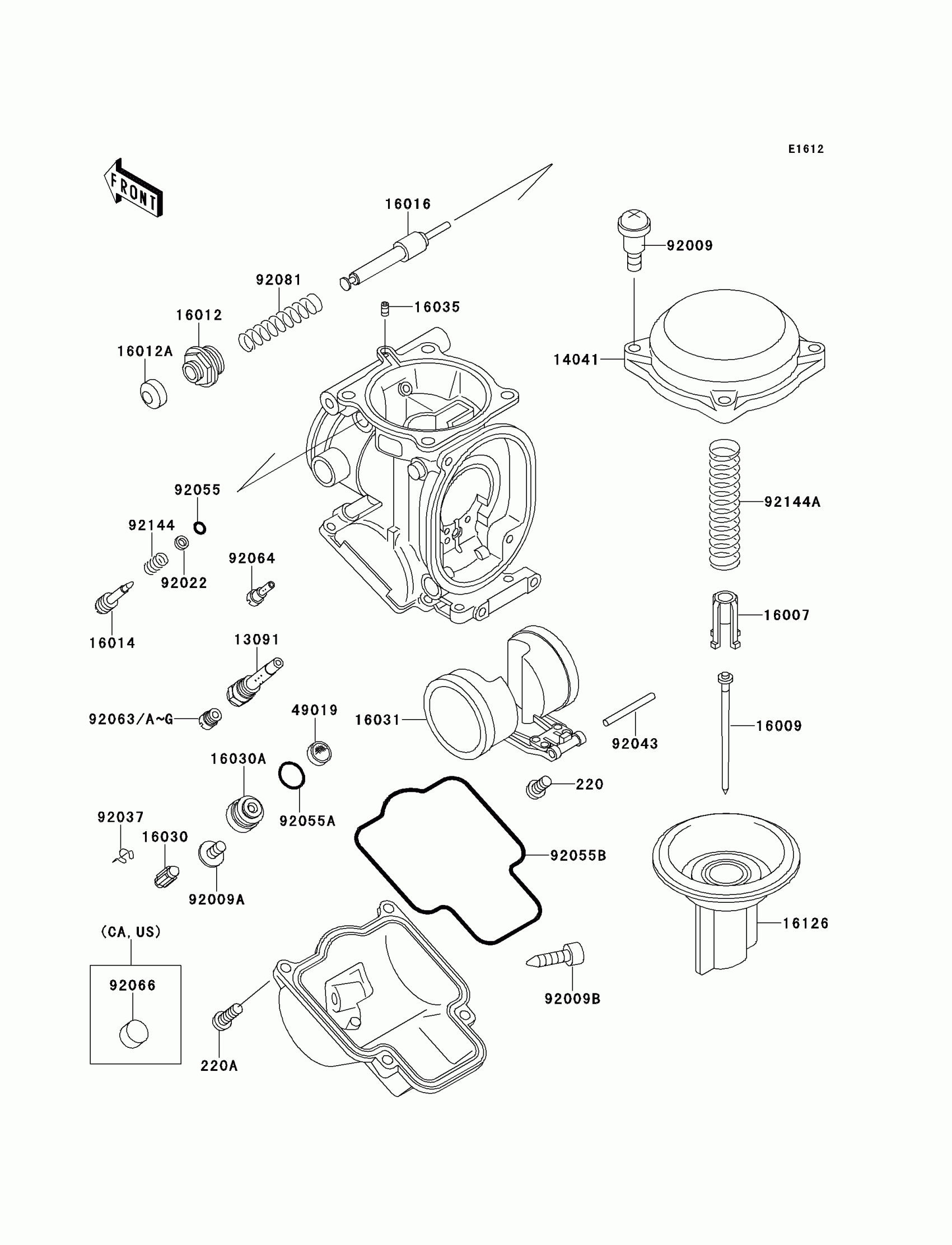

Kawasaki Ninja® ZX™-6 Carburetor Parts Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1701

$36.81

14041

CAP-CHAMBER,MIXING

14041-1091

$60.62

16007

SEAT-SPRING,VALVE

16007-1117

$20.29

16009

NEEDLE-JET,N14G

16009-1622

Unavailable

16012

CAP-STARTER PLUNGER

16012-1051

$8.50

16012A

CAP-STARTER PLUNGER

16012-1052

$11.72

16014

SCREW-PILOT AIR

16014-1062

$18.64

16016

PLUNGER,STARTER

16016-1061

$45.45

16030

VALVE-FLOAT

16030-1007

$42.48

16030A

SEAT-VALVE,FLOAT

16030-1072

$57.25

16031

FLOAT

16031-1070

$61.13

16035

JET-AIR,LEAK

16035-1055

$11.94

16126

VALVE,VACUUM

16126-1253

$215.60

49019

FILTER-FUEL,STRAINER

49019-3707

$6.21

92009

SCREW,4X4.4

92009-1549

$3.98

92009A

SCREW,4X8

92009-1550

$3.92

92009B

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92022

WASHER,PLAIN

92022-1003

$3.29

92037

CLAMP,FLOAT VALVE

16044-007

$6.04

92043

PIN,FLOAT

92043-1207

$10.71

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

92055A

RING-O,VALVE SEAT

92055-1425

$5.81

92055B

RING-O,FLOAT CHAMBER

92055-1426

$16.99

92063

JET-MAIN,#140

92063-1013

$10.71

92063C

JET-MAIN,#142

92063-1016

$13.39

92063E

JET-MAIN,#145

92063-1017

$10.71

92063F

JET-MAIN,#148

92063-1324

$13.39

220

SCREW-PAN-CROS,4X8

220D0408

$0.63

220A

SCREW-PAN-CROS

220D0410

Unavailable

92064

JET-PILOT,#35

92064-1101

$12.84

92081

SPRING,STARTER PLUNGER

92081-1761

$9.31

92144

SPRING,PILOT AIR SCREW

92144-1349

$9.47

92144A

SPRING,VACUUM VALVE

92144-1538

$21.44

92063A

JET-MAIN,#138

92063-1015

$10.71

92063B

JET-MAIN,#142

92063-1016

$13.39

92063D

JET-MAIN,#145

92063-1017

$10.71

92063G

JET-MAIN,#150

92063-1330

$13.39

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85
