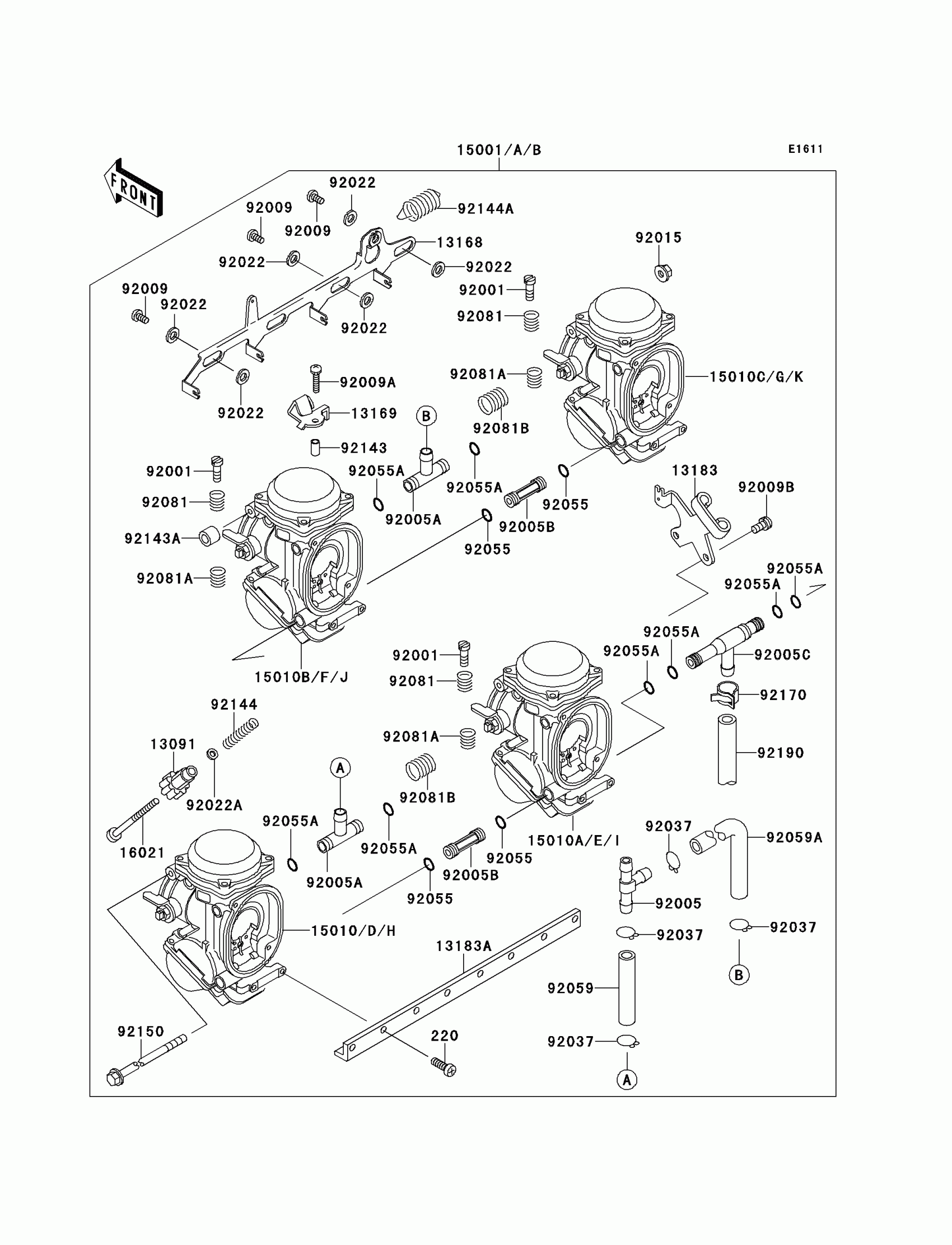

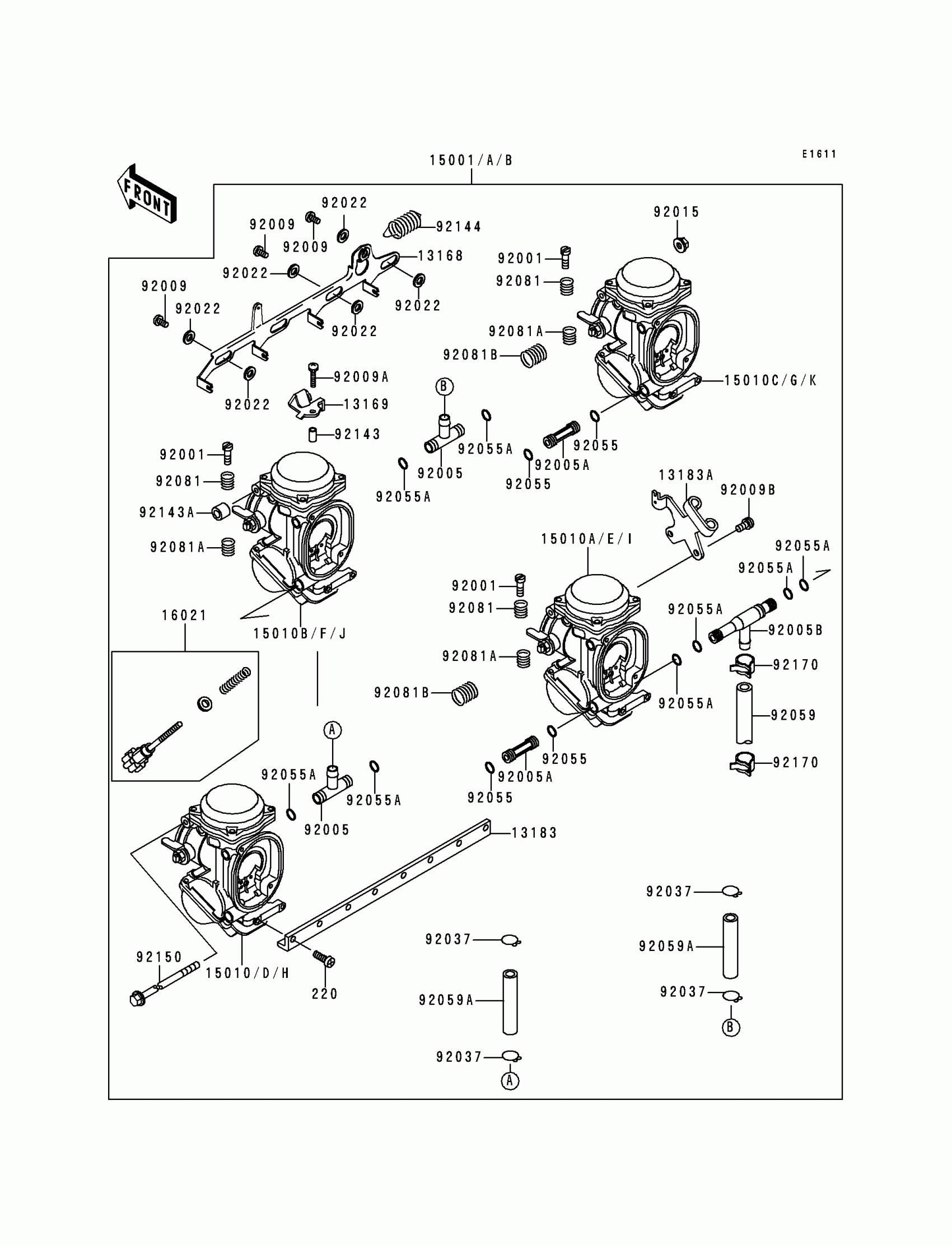

Kawasaki Ninja® ZX™-6 Carburetor Diagram

#

Description
Price

13091

HOLDER,THROTTLE STOP SCREW

13091-1382

$17.39

13168

LEVER,CHOKE

13168-1448

$20.56

13169

PLATE,STARTER CABLE

13169-1965

$37.44

13183

PLATE,THROTTLE CABLE

13183-1498

Unavailable

13183A

PLATE,CARBURETOR STAY

13183-1608

$87.77

16021

SCREW-THROTTLE STOP

16021-1122

Unavailable

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92005

FITTING,T-TYPE

92005-1119

$24.61

92005A

FITTING,T-TYPE

92005-1125

$25.81

92005B

FITTING

92005-1157

$33.74

92005C

FITTING,T-TYPE

92005-1214

$27.10

92009

SCREW

92009-1262

$6.61

220

SCREW-PAN-CROS,5X14

220D0514

$4.04

92009A

SCREW,4X18

92009-1446

$6.15

92009B

SCREW

92009-1597

$8.19

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,TUBE

92037-1194

$6.15

92055

RING-O

92055-1004

$4.31

92055A

RING-O

92055-1223

$5.52

92059

TUBE,7X11X55

92059-1612

$27.08

92059A

TUBE,7X11X220

92059-1863

Unavailable

92081

SPRING

92081-1620

$4.96

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.67

92143

COLLAR,4X5.2X9.6

92143-1265

$7.35

92143A

COLLAR

92143-1438

$10.62

92144

SPRING,THROTTLE ADJUST

92144-1539

Unavailable

92144A

SPRING

92144-1540

$24.34

92150

BOLT

92150-1416

$33.67

92170

CLAMP,TUBE

92170-1054

$9.91

92190

TUBE,7.3X12.5X380

92190-1063

$37.85

15001

CARBURETOR-ASSY

15001-1591

$1,796.34

15001A

CARBURETOR-ASSY

15001-1593

$1,796.34

15001B

CARBURETOR-ASSY

15001-1594

Unavailable

15010

CARBURETOR,LH,OUTSIDE

15010-1113

Unavailable

15010A

CARBURETOR,LH,INSIDE

15010-1114

Unavailable

15010B

CARBURETOR,RH,INSIDE

15010-1115

Unavailable

15010C

CARBURETOR,RH,OUTSIDE

15010-1116

Unavailable

15010D

CARBURETOR,LH,OUTSIDE

15010-1117

$361.82

15010E

CARBURETOR,LH,INSIDE

15010-1118

$579.54

15010F

CARBURETOR,RH,INSIDE

15010-1119

$579.54

15010G

CARBURETOR,RH,OUTSIDE

15010-1120

$618.34

15010H

CARBURETOR,LH,OUTSIDE

15010-1121

$579.54

15010I

CARBURETOR,LH,INSIDE

15010-1122

$579.54

15010J

CARBURETOR,RH,INSIDE

15010-1123

$579.54

15010K

CARBURETOR,RH,OUTSIDE

15010-1124

$579.54
