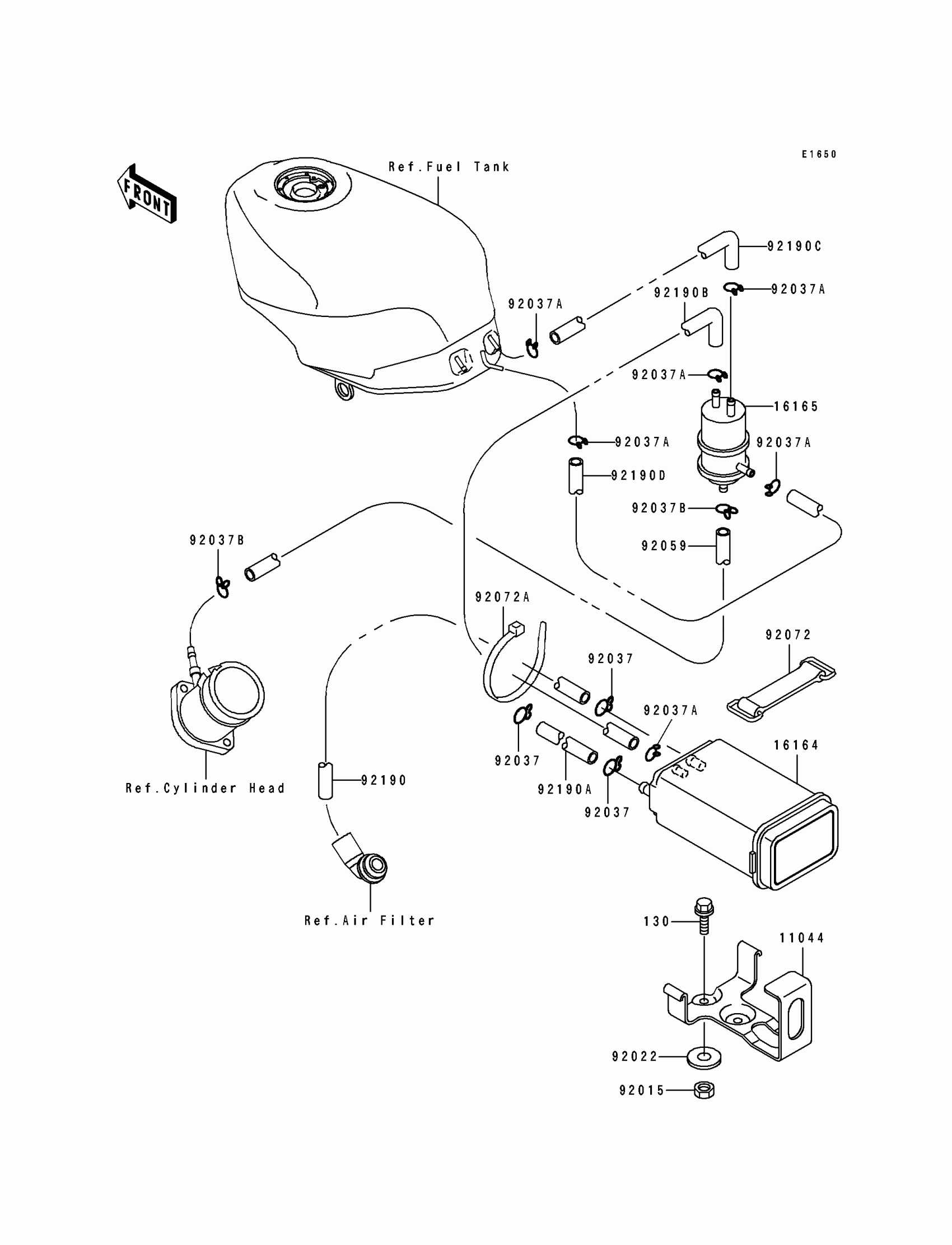

Kawasaki Ninja® ZX™-6 Canister Diagram

Description

Price

131

BOLT-FLANGED

131C0612

$2.19

11045

BRACKET,CANISTER

11044-1876

Unavailable

16164

CANISTER

16164-1052

$131.28

16165

SEPARATOR

16165-1001

$90.01

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP

92037-1712

$5.00

92059

TUBE,4X9X500,WHITE

92059-1533

$19.09

92072

BAND,L=100

92072-071

$9.53

92072A

BAND,L=250

92072-1237

$2.14

92190

TUBE,7X12X1180,GREEN

92190-1108

$41.13

92190A

TUBE,7X12X1180,YELLOW

92190-1109

$41.13

92190B

TUBE,5X10X750,BLUE

92190-1110

$15.59

92190C

TUBE,5X10X140,BLUE

92190-1111

$9.30

92190D

TUBE,5X10X200,RED

92190-1112

$8.08
