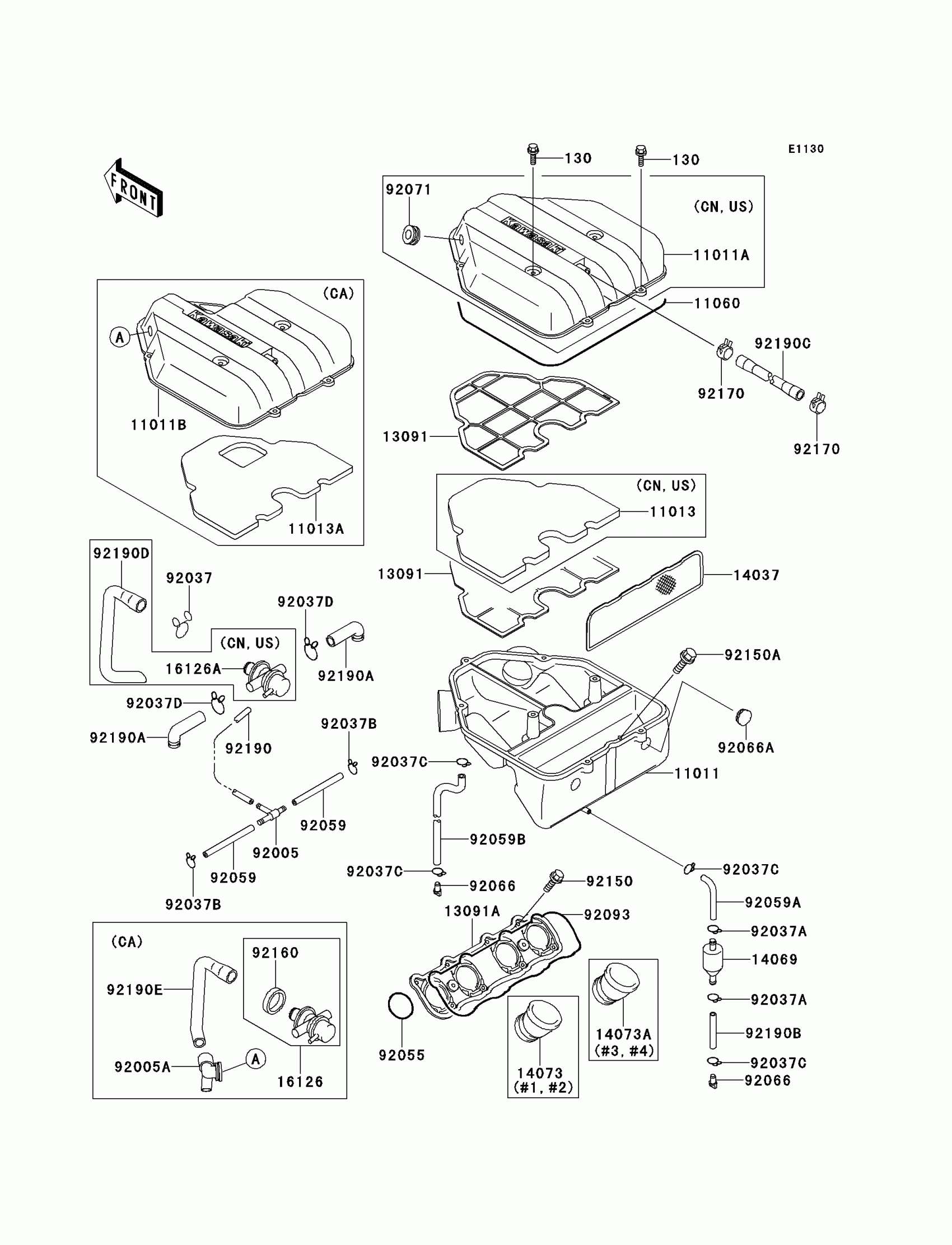

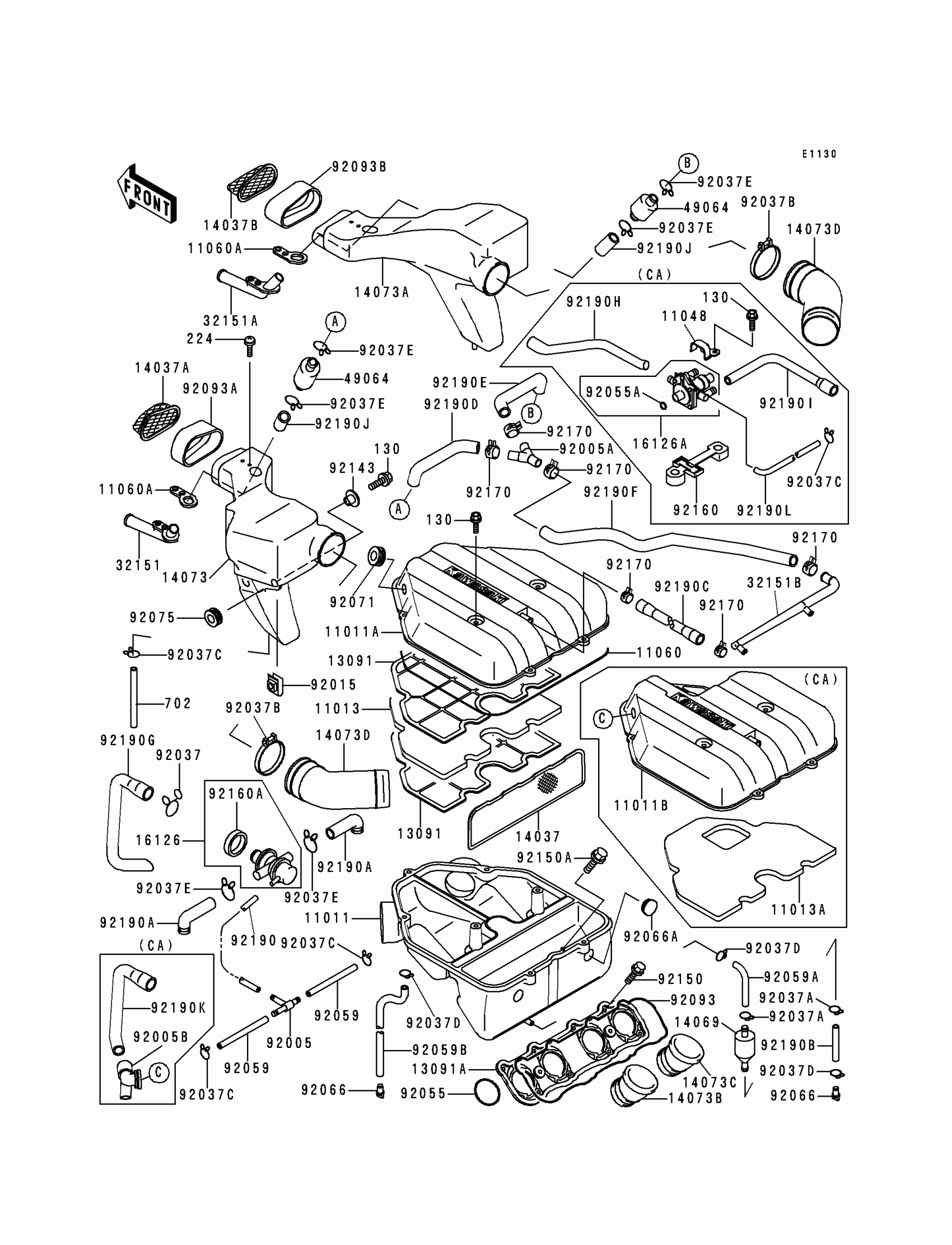

Kawasaki Ninja® ZX™-6 Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER,LWR

11011-1394

Unavailable

11060

GASKET,AIR FILTER CASE

11060-1317

Unavailable

11060A

GASKET

11060-1343

$4.58

13091

HOLDER,ELEMENT

13091-1815

$16.75

13091A

HOLDER,DUCT

13091-1816

Unavailable

14037

SCREEN,AIR FILTER

14037-1165

$29.19

14037A

SCREEN,AIR DUCT,LH

14037-1166

$24.03

14037B

SCREEN,AIR DUCT,RH

14037-1167

$24.03

14069

BREATHER

14069-1051

$7.76

14073

DUCT,AIR INTAKE,LH

14073-1549

$69.78

14073A

DUCT,AIR INTAKE,RH

14073-1550

$69.78

14073B

DUCT,CARBURETOR,#1

14073-1562

$36.81

14073C

DUCT,CARBURETOR,#3

14073-1563

$36.81

14073D

DUCT,DUCT-AIR FILTER

14073-1574

$44.84

16126

VALVE,AIR SWITCH

16126-1144

$204.57

32151

PIPE,LH

32151-1462

$16.75

32151A

PIPE,RH

32151-1463

$16.75

32151B

PIPE

32151-1540

$84.95

49064

FILTER-AIR

49064-1055

$21.88

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING,Y-TIPE

92005-1250

$10.54

92015

NUT,6MM

92015-1602

$5.61

92037

CLAMP,TUBE

92037-1076

$7.14

92037A

CLAMP,12.5MM

92037-1271

$1.73

92037B

CLAMP,AIR FILTER

92037-1409

Unavailable

92037D

CLAMP,TUBE

92037-1972

$3.29

92037E

CLAMP,TUBE

92037-213

$3.29

92055

RING-O,67.7X3.1

92055-1434

$7.52

92059

TUBE,4X9X80

92059-1365

$12.97

92059A

TUBE,7X12X230

92059-1750

$12.36

92059B

TUBE,7X12X435,GREEN

92059-1761

$21.78

92066

PLUG,DRAIN

92066-1211

$6.48

92066A

PLUG

92066-1389

$3.25

92075

DAMPER

92075-1634

$3.57

92093

SEAL,DUCT HOLDER

92093-1346

$9.22

92093A

SEAL,LH

92093-1347

$10.54

92093B

SEAL,RH

92093-1348

$10.54

92143

COLLAR,L=9.6

92143-1016

$4.67

92150

BOLT,5X12

92150-1661

$3.36

92150A

BOLT,6X20

92150-1662

Unavailable

92160A

DAMPER,VALVE

92160-1454

$15.95

92170

CLAMP

92170-1060

$7.93

92190

TUBE,4X9X220

92190-1091

$14.40

92190A

TUBE,AIR SWITCH VALVE

92190-1168

Unavailable

92190B

TUBE,7X12X45

92190-1200

$12.36

92190C

TUBE,BREATHER

92190-1346

$21.78

92190D

TUBE,14X20X158,LH

92190-1413

Unavailable

92190E

TUBE,14X20X158,RH

92190-1414

Unavailable

92190J

TUBE,14X20X28

92190-1429

$3.92

130

BOLT-FLANGED,6X25

130H0625

Unavailable

224

SCREW-PAN-WP-CROS,5X12

224C0512

Unavailable

702

TUBE-RUBBER,7X10X120

702A07120

$10.11

11011A

CASE-AIR FILTER,UPP

11011-1395

$121.03

11011B

CASE-AIR FILTER,UPP

11011-1412

$107.79

11013

ELEMENT-AIR FILTER

11013-1226

$24.47

11013A

ELEMENT-AIR FILTER

11013-1230

$24.47

11048

BRACKET,VALVE

11048-1179

$8.54

16126A

VALVE,CANISTER

16126-1274

$204.57

92005B

FITTING,CANISTER

92005-1253

$11.39

92037C

CLAMP

92037-1712

$3.81

92037C

CLAMP

92037-1712

$3.81

92055A

RING-O

92055-1524

$4.10

92071

GROMMET,AIR FILTER

92071-1028

$5.55

92160

DAMPER

92160-1431

$8.69

92190F

TUBE,14X20X525

92190-1415

$41.11

92190G

TUBE,VALVE-AIR FILTER

92190-1416

$32.45

92190H

TUBE,VALVE-FITTING

92190-1422

$29.88

92190I

TUBE,VALVE-FITTING

92190-1423

$20.49

92190K

TUBE,AIR SWITCH-FITTING

92190-1435

$23.41

92190L

TUBE,4X9X336

92190-1444

$14.12
