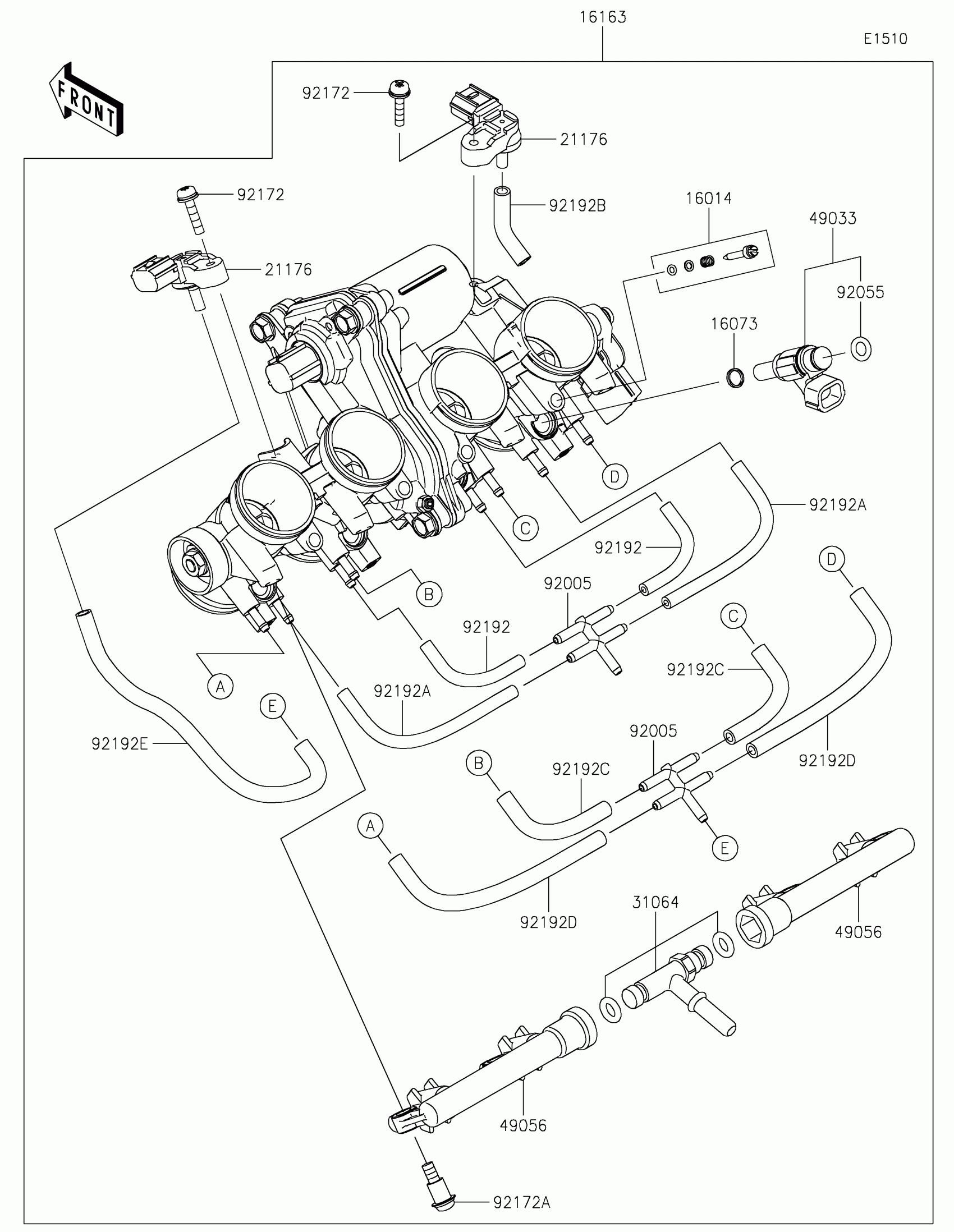

Kawasaki Ninja ZX-4RR Throttle Diagram

Description

Price

16014

SCREW-PILOT AIR

16014-0023

$23.27

16073

INSULATOR

16073-0884

$1.94

16163

THROTTLE-ASSY

16163-1304

$1,786.22

21176

SENSOR,PRESSURE

21176-0906

$222.28

31064

PIPE-COMP

31064-0730

$84.91

49033

NOZZLE-INJECTION

49033-0584

$104.69

49056

PIPE-INJECTION

49056-0565

$96.66

92005

FITTING

92005-0989

$16.15

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92172

SCREW

92172-1383

$5.86

92172A

SCREW

92172-1384

$4.07

92192

TUBE

92192-2355

$43.01

92192A

TUBE

92192-2356

$66.07

92192B

TUBE

92192-2357

$2.38

92192C

TUBE

92192-2358

$14.15

92192D

TUBE

92192-2359

$13.23

92192E

TUBE

92192-2360

$31.80
