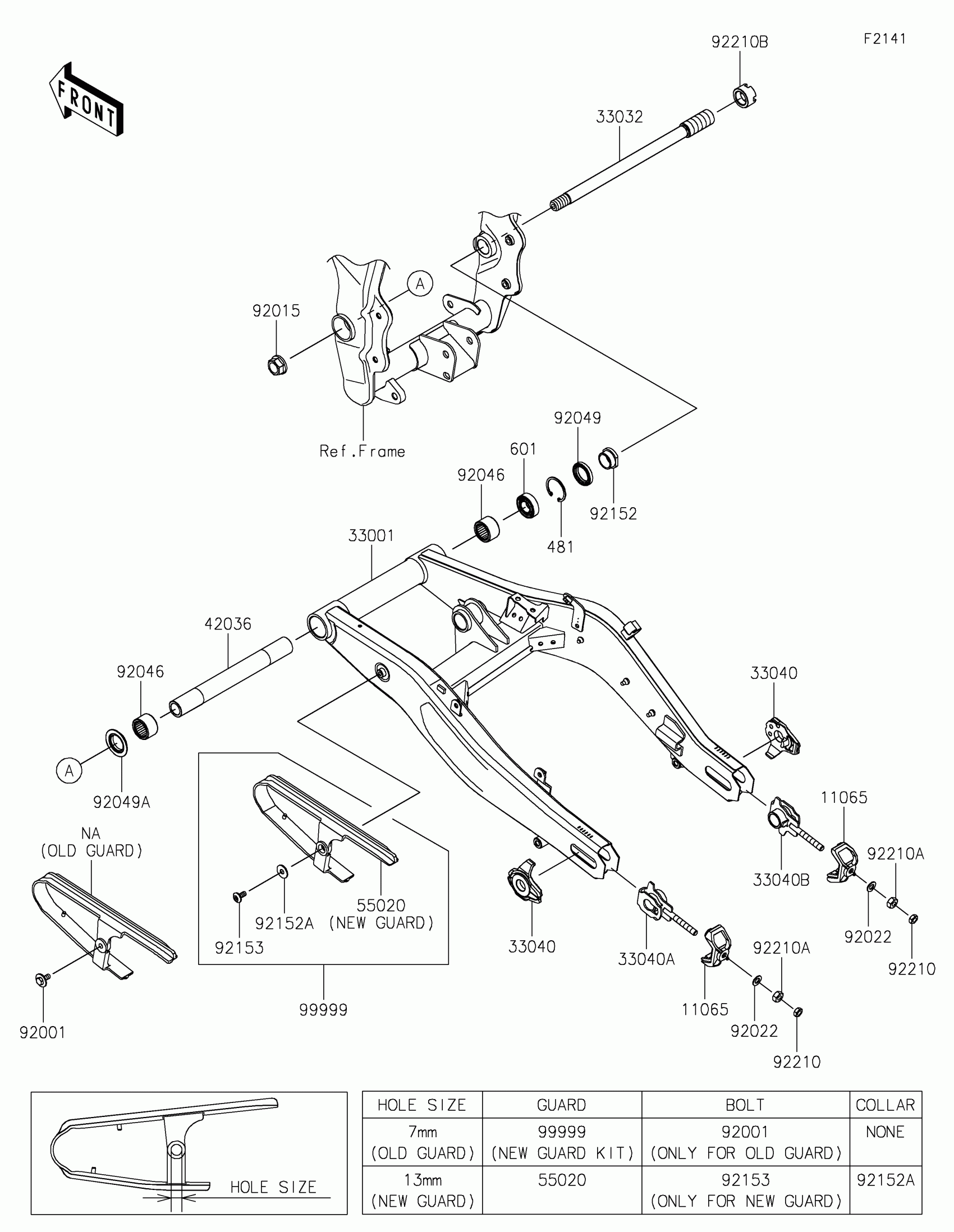

Kawasaki Ninja ZX-4RR Swingarm(SPFNN/SPFNL) Diagram

Description

Price

11065

CAP,CHAIN ADJUSTER,F.S.BLACK

11065-1329-18R

$11.47

33001

ARM-COMP-SWING,F.S.BLACK

33001-0765-18R

$632.38

33032

SHAFT-SWING ARM

33032-0062

$99.42

33040

ADJUSTER-CHAIN,F.S.BLACK

33040-0096-18R

$10.93

33040A

ADJUSTER-CHAIN,LH

33040-0102

$16.51

33040B

ADJUSTER-CHAIN,RH

33040-0103

$16.51

42036

SLEEVE,17.5X25X224

42036-0866

$76.09

55020

GUARD,CHAIN

55020-2359

$44.48

92001

BOLT,6X16

92001-1950

$3.29

92015

NUT,FLANGED,16MM

92015-1946

$12.17

92022

WASHER,8.5X16X1.2

92022-1582

$0.81

92046

BEARING-NEEDLE,BM2520

92046-1228

$19.92

92049

SEAL-OIL

92049-0827

$4.17

92049A

SEAL-OIL,MF025N1

92049-1426

$9.92

92152

COLLAR

92152-2874

$13.90

92152A

COLLAR

92152-3814

$5.56

92153

BOLT,SOCKET,6X14

92153-1361

$2.15

92210

NUT,8MM

92210-0116

$1.43

92210A

NUT,8MM

92210-0117

$1.62

92210B

NUT,CASTLE,22MM

92210-1902

$22.47

99999

KIT,CHAIN GUARD,ZX-25R/ZX-4R

99999-0897

$50.27

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

601

BEARING-BALL,#6003G

601B6003G

$16.78
