2024 Kawasaki Ninja ZX-4RR Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

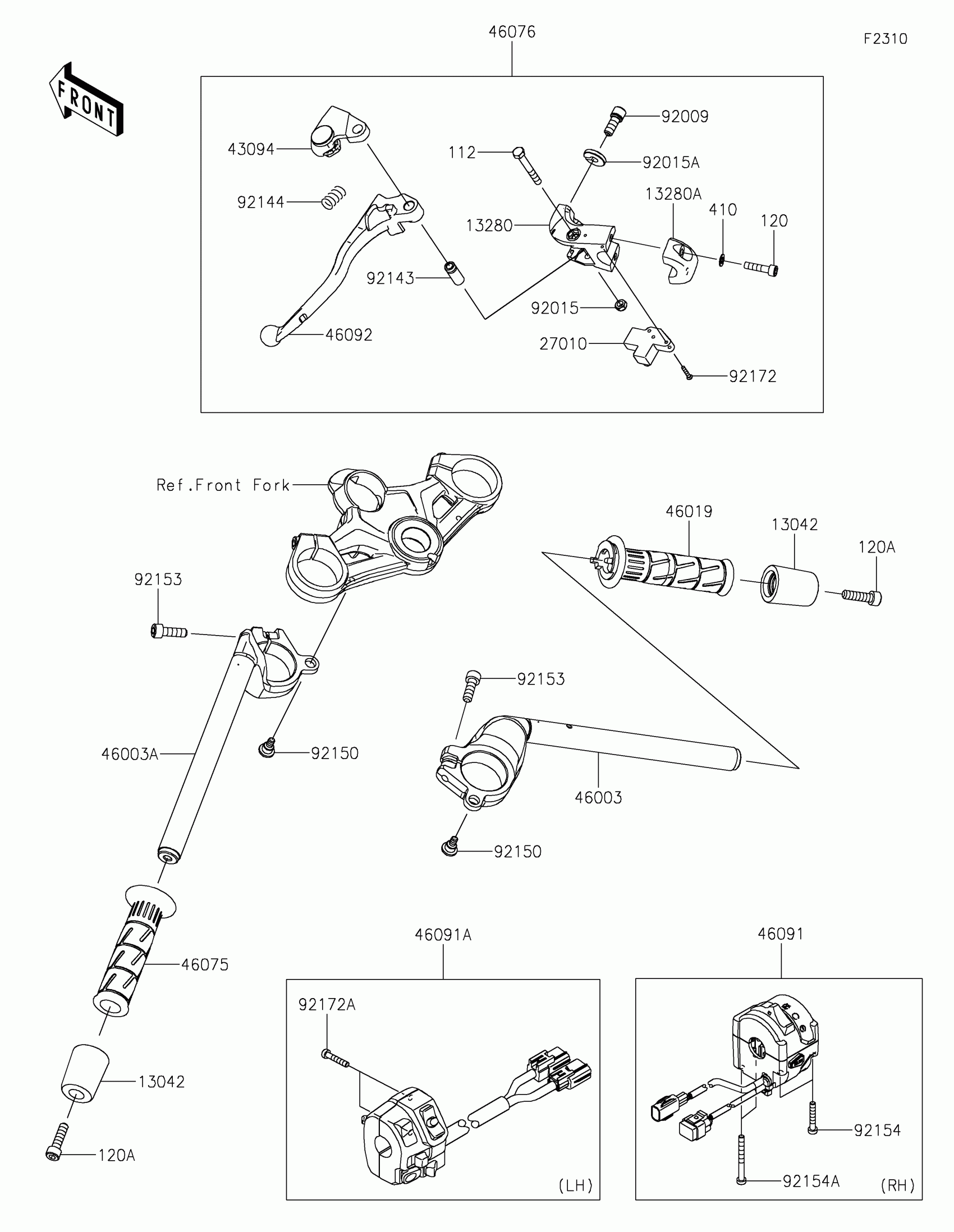

2024 Kawasaki Ninja ZX-4RR Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-5040

1
Out of stock

13280

HOLDER,CLUTCH LEVER

13280-0306

1

$48.50

In stock

13280A

HOLDER,CLUTCH LEVER

13280-0319

1

$37.15

In stock

27010

SWITCH,CLUTCH

27010-0933

1
Out of stock

43094

ADJUSTER

43094-0013

1
Out of stock

46003

HANDLE,RH

46003-0762

1
Out of stock

46003A

HANDLE,LH

46003-0822

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-0100

1
Out of stock

46075

GRIP,HANDLE,LH

46075-0564

1

$18.54

In stock

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0174

1
Out of stock

46091

HOUSING-ASSY-CONTROL,RH

46091-0586

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,LH

46091-0587

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-0578

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92143

COLLAR

92143-1379

1
Out of stock

92144

SPRING

92144-1467

1
Out of stock

92150

BOLT,6MM

92150-1090

1
Out of stock

92153

BOLT,SOCKET,8X25

92153-1625

1
Out of stock

92154

BOLT,5X30

92154-3921

1
Out of stock

92154A

BOLT,5X50

92154-3922

1
Out of stock

92172

SCREW,3X16

92172-0183

1
Out of stock

92172A

SCREW-PAN-CROS,5X25

92172-1140

1
Out of stock

112

BOLT-UPSET,6X45

112BB0645

1
Out of stock

120

BOLT-SOCKET,6X25

120CB0625

1
Out of stock

120A

BOLT-SOCKET,8X30

120CB0830

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410AB0600

1
Out of stock
