Rear Master Cylinder

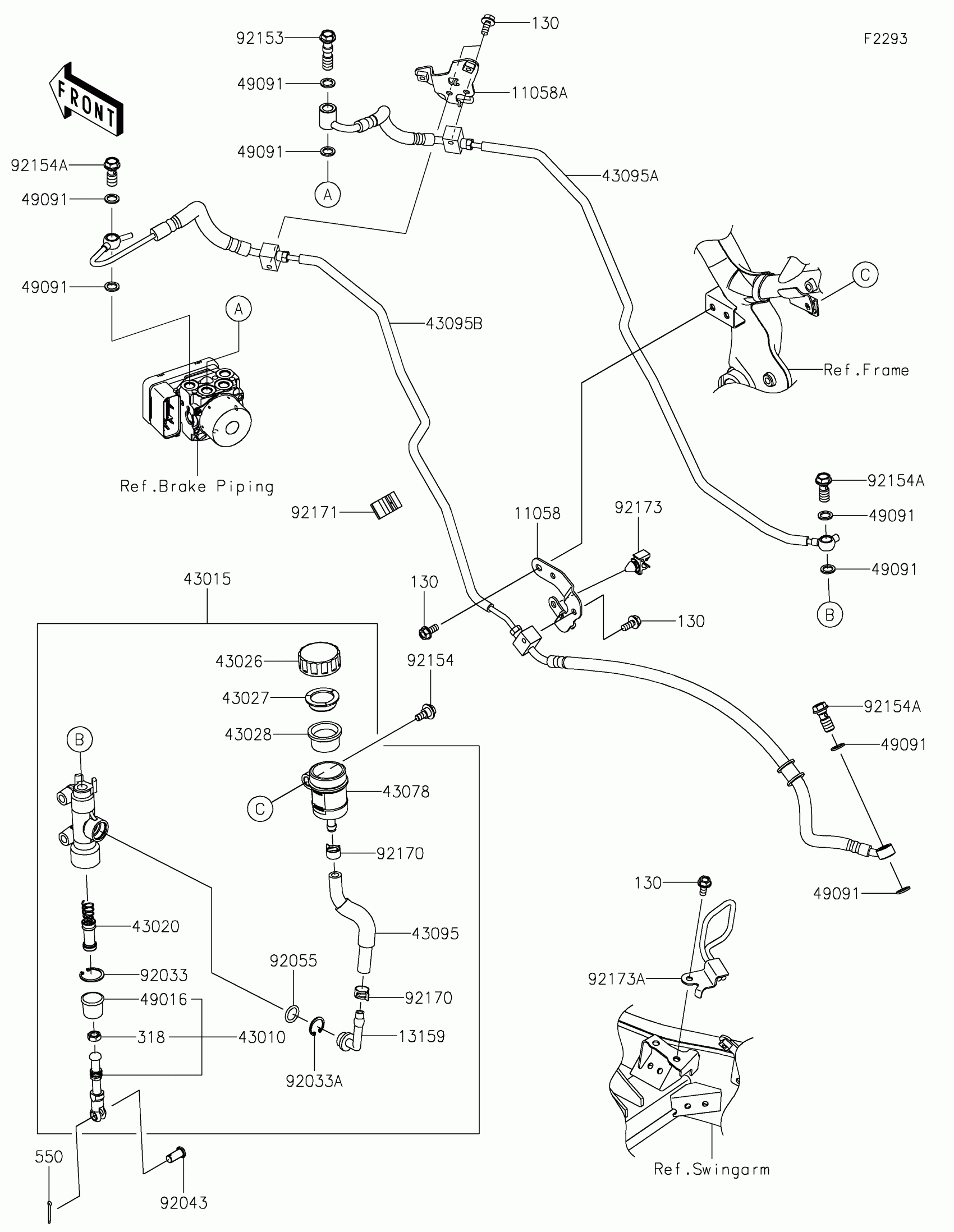

Kawasaki Ninja ZX-4RR Rear Master Cylinder Diagram
#
Description
Price
11058
BRACKET,BRAKE HOSE
11058-0609
$3.28
11058A
BRACKET,BRAKE HOSE
11058-1022
$17.83
13159
CONNECTOR
13159-1056
$14.10
43010
ROD-ASSY-BRAKE
43010-0030
$66.42
43015
CYLINDER-ASSY-MASTER,RR
43015-0784
$246.33
43020
PISTON-COMP-BRAKE
43020-1094
$65.22
43026
CAP-BRAKE
43026-0009
$37.51
43027
PLATE-DIAPHRAGM
43027-1053
$5.67
43028
DIAPHRAGM
43028-1065
$19.09
43078
RESERVOIR
43078-0060
$32.45
43095
HOSE-BRAKE
43095-1755
$13.17
43095A
HOSE-BRAKE,ABS PUMP-RR M/C
43095-1889
$261.28
43095B
HOSE-BRAKE,ABS PUMP-RR CALIPER
43095-1891
$210.14
49016
COVER-SEAL,BRAKE PISTON
49016-1103
$13.37
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92043
PIN
92043-0904
$3.90
92055
RING-O,14.8X2.4
92055-0741
$3.71
92153
BOLT,OIL,L=37
92153-0628
$11.83
92154
BOLT
92154-0929
$3.71
92154A
BOLT,BANJO,10X23
92154-1712
$3.94
92170
CLAMP,HOSE
92170-1091
$5.00
92171
CLAMP
92171-0818
$4.41
92173
CLAMP,FUEL PIPE
92173-1213
$1.48
92173A
CLAMP,RR HUGGER
92173-2179
$8.80
130
BOLT-FLANGED,6X14
130BA0614
$1.20
318
NUT-HEX-SMALL
318BB0800
$3.94
550
PIN-COTTER,2.0X15
550AA2015
$1.12
