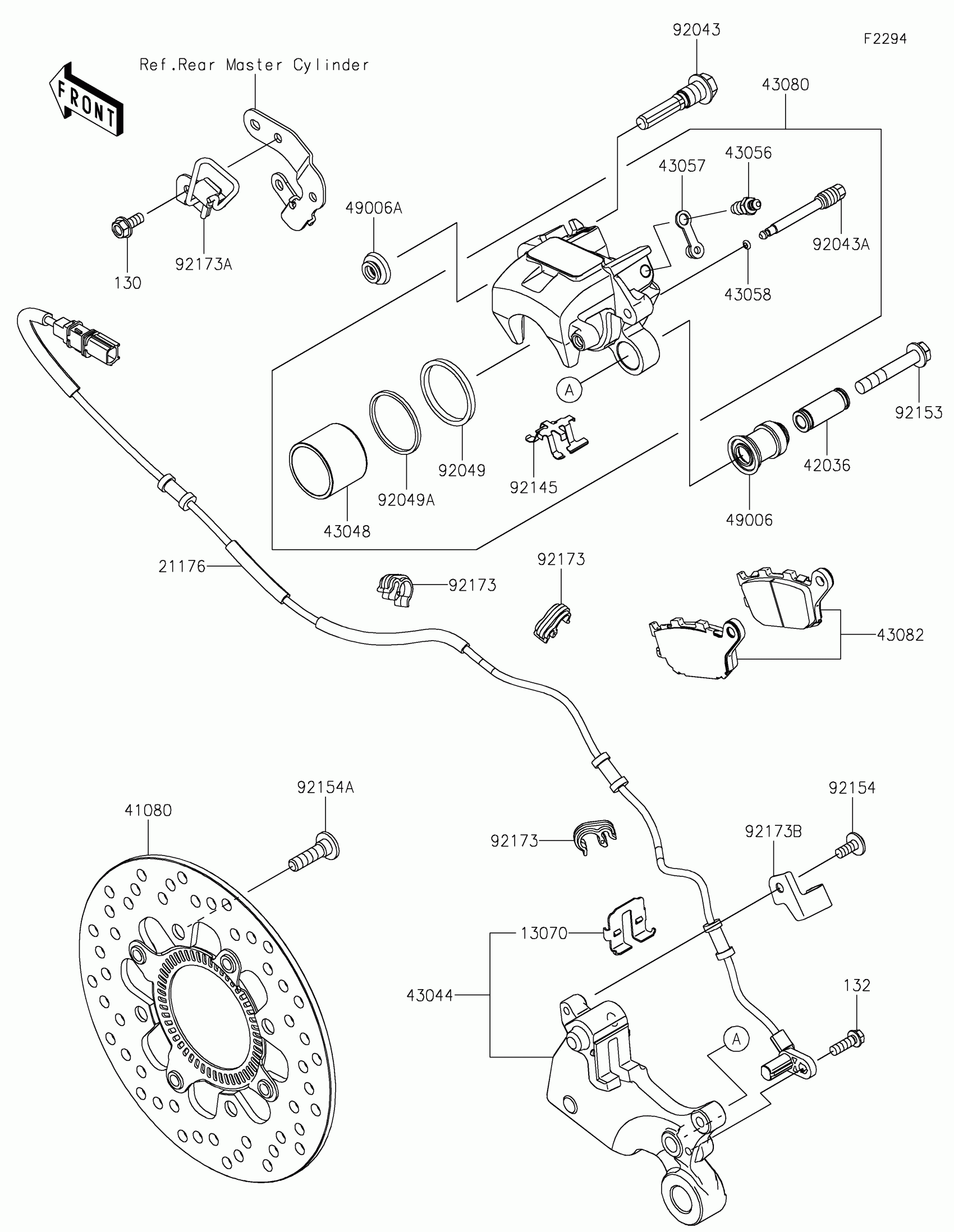

Kawasaki Ninja ZX-4RR Rear Brake Diagram

#

Description
Price

13070

GUIDE

13070-0810

$7.61

21176

SENSOR,SPEED,RR

21176-0926

$133.13

41080

DISC,RR

41080-0736

$269.22

42036

SLEEVE

42036-0050

$7.61

43044

HOLDER-COMP-CALIPER

43044-0092

$118.49

43048

PISTON-CALIPER

43048-0008

$31.05

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43058

RING,STOPPER

43058-1100

$11.22

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0156-DJ

$318.75

43082

PAD-ASSY-BRAKE

43082-0185

$46.38

49006

BOOT

49006-0058

$12.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92043

PIN

92043-0137

$10.34

92043A

PIN,HANGER

92043-0820

$7.24

92049

SEAL-OIL

92049-1449

$3.81

92049A

SEAL-OIL

92049-1450

$3.85

92145

SPRING,PAD

92145-0493

$5.87

92153

BOLT,FLANGED

92153-1826

$7.84

92154

BOLT,SOCKET,6X14

92154-0907

$1.44

92154A

BOLT,SOCKET,8X30

92154-1865

$3.57

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

$1.27

92173A

CLAMP

92173-2177

$7.31

92173B

CLAMP

92173-2178

$2.31

130

BOLT-FLANGED,6X14

130BA0614

$0.97

132

BOLT-FLANGED-SMALL,6X18

132BC0618

$1.57
