2024 Kawasaki Ninja ZX-4RR Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

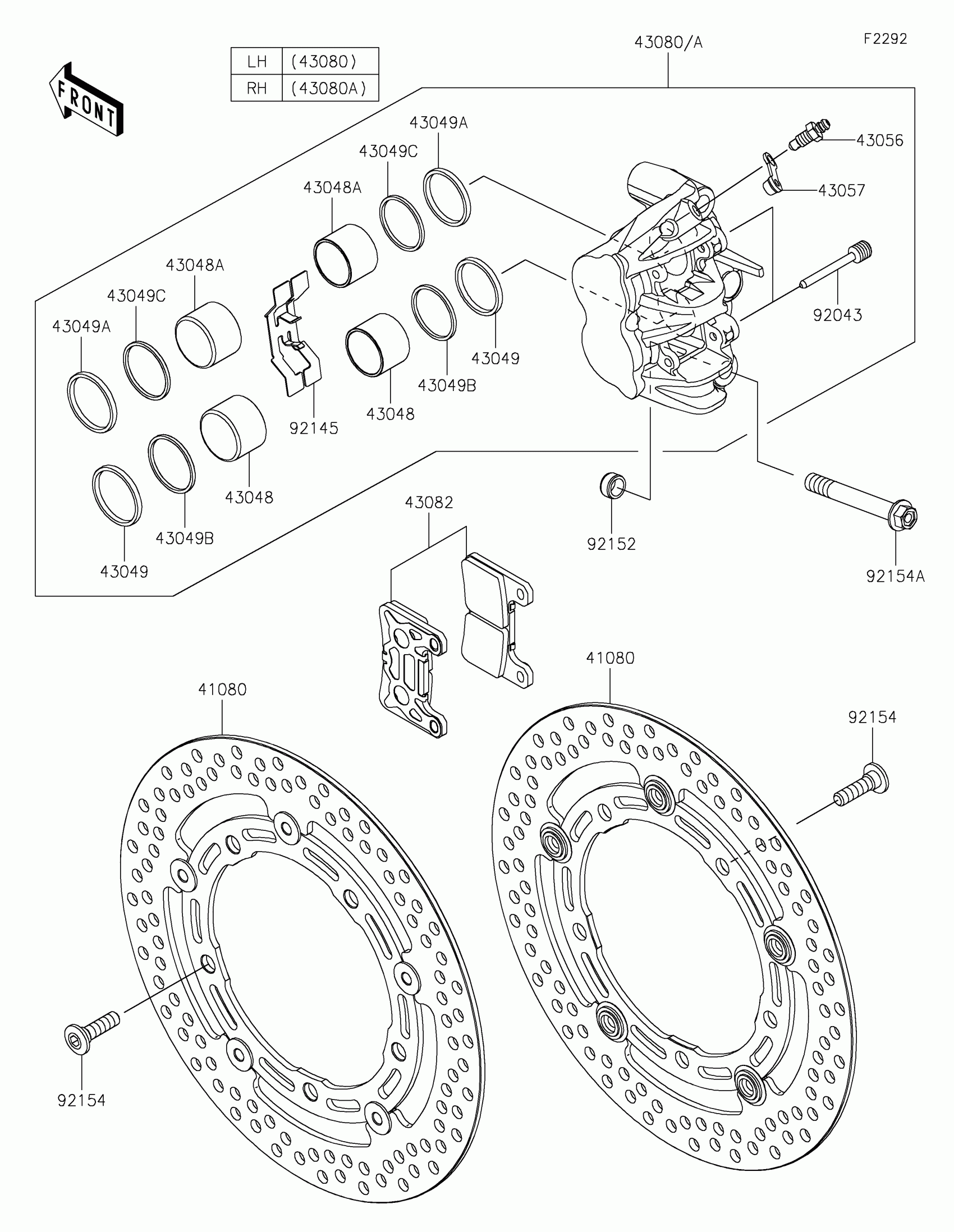

2024 Kawasaki Ninja ZX-4RR Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,BLACK+BLK

41080-0741-32L

1

$399.15

In stock

43048

PISTON-CALIPER

43048-0023

1

$70.45

In stock

43048A

PISTON-CALIPER

43048-0024

1

$70.45

In stock

43049

PACKING,PISTON

43049-0012

1

$10.62

In stock

43049A

PACKING,PISTON

43049-0013

1

$12.78

In stock

43049B

PACKING

43049-1068

1

$7.79

In stock

43049C

PACKING,WIPER

43049-1107

1

$6.37

In stock

43056

BREATHER-BRAKE

43056-0007

1

$22.39

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43080

1

$480.11

In stock

43080A

1

$480.11

In stock

43082

PAD-ASSY-BRAKE

43082-0206

1

$79.08

In stock

92043

PIN,PAD

92043-1709

1

$6.65

In stock

92145

SPRING,PAD

92145-1873

1

$17.63

In stock

92152

COLLAR,DOWEL PIN

92152-2877

1

$10.24

In stock

92154

BOLT,SOCKET,8X30

92154-1865

1

$3.72

In stock

92154A

BOLT

92154-4379

1

$10.05

In stock
