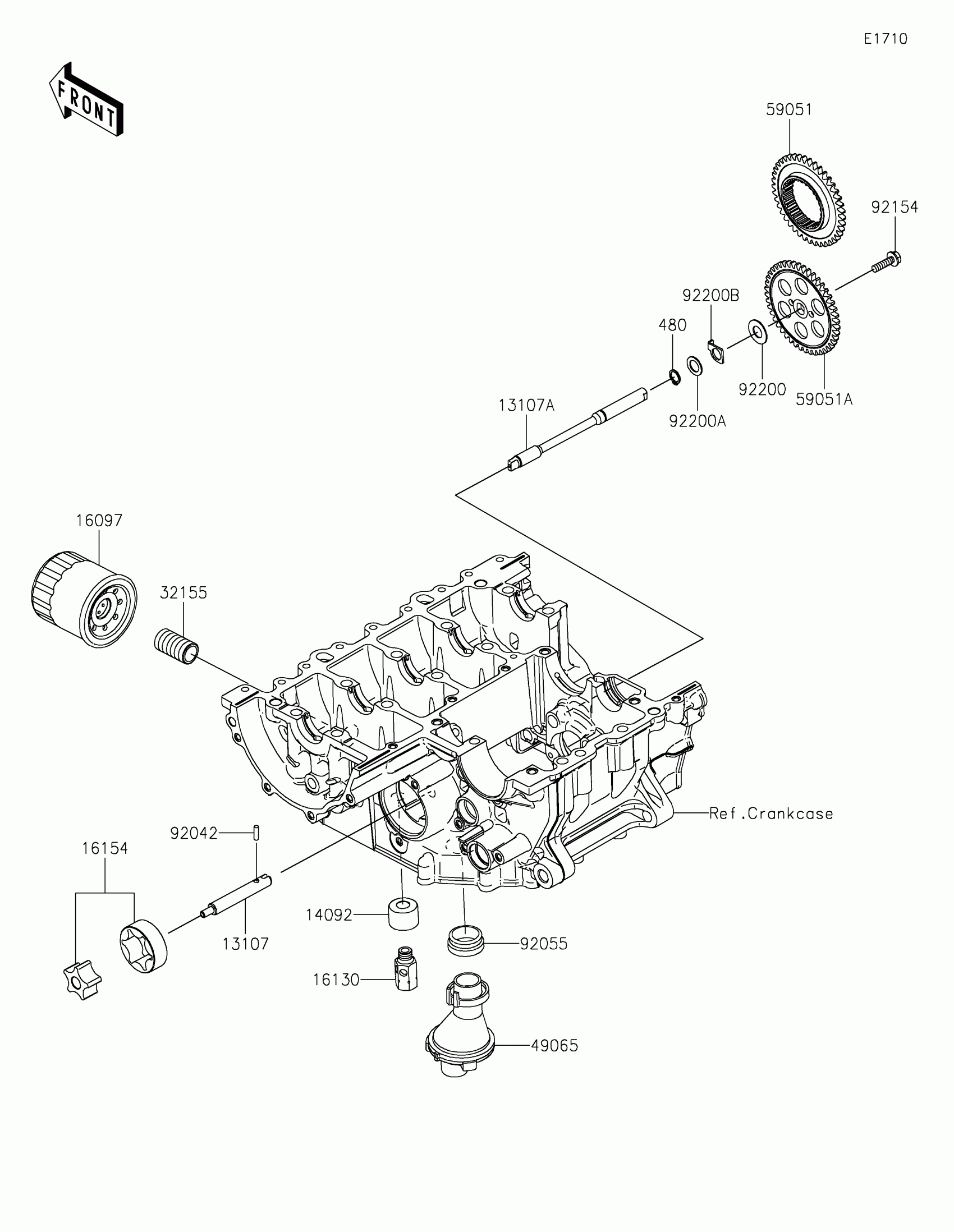

Kawasaki Ninja ZX-4RR Oil Pump/Oil Filter Diagram

Description

Price

13107

SHAFT,OIL PUMP,LH

13107-0903

$21.58

13107A

SHAFT,OIL PUMP,RH

13107-0920

$58.08

14092

COVER,RELIEF VALVE

14092-1002

$2.17

16097

FILTER-ASSY-OIL

16097-0552

Unavailable

16130

VALVE-ASSY-RELIEF

16130-0006

$42.78

16154

ROTOR-PUMP

16154-0753

$66.81

32155

PIPE,OIL FILTER

32155-0029

$14.17

49065

FILTER-OIL

49065-0715

$19.59

59051

GEAR-SPUR,41T

59051-0873

$99.55

59051A

GEAR-SPUR,44T

59051-0874

$134.55

92042

PIN,DOWEL,4X13.8

92042-030

$2.99

92055

RING-O,OIL FILTER

92055-1503

$7.25

92154

BOLT,FLANGED,6X22

92154-1525

$1.47

92200

WASHER,11.3X23X1

92200-0719

$2.19

92200A

WASHER

92200-1009

$4.47

92200B

WASHER

92200-2558

$1.64

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.95
