Description

Price

11065

CAP,FORK

11065-1372

$83.98

11065A

CAP,FORK

11065-1410

$242.88

13116

ROD-PUSH

13116-0753

$25.49

13235

GUIDE-COMP

13235-0015

$85.58

16007

SEAT-SPRING

16007-0780

$25.27

32085

STOPPER

32085-0883

$7.55

32085A

STOPPER

32085-0884

$7.28

44008

PIPE-FORK OUTER

44008-0092

$343.73

44013

PIPE-FORK INNER,LH

44013-0401

$563.68

44013A

PIPE-FORK INNER,RH

44013-0405

$563.68

44023

CYLINDER-SET-FORK,RH

44023-0184

$50.31

44023A

CYLINDER-SET-FORK,LH

44023-0191

$84.52

44026

SPRING-FRONT FORK

44026-0265

$6.53

44026A

SPRING-FRONT FORK

44026-0291

$26.18

44026B

SPRING-FRONT FORK

44026-0293

$36.66

44037

HOLDER-FORK UNDER

44037-0194

$701.28

44039

HOLDER-FORK UPPER

44039-0196

$278.41

44065

BUSHING-FRONT FORK

44065-0069

$18.91

44065A

BUSHING-FRONT FORK

44065-0070

$12.18

44071

DAMPER-ASSY,FORK,LH

44071-1577

$818.01

44071A

DAMPER-ASSY,FORK,RH

44071-1590

$972.15

92026

SPACER

92026-0905

$7.49

92033

RING-SNAP

92033-0829

$4.69

92033A

RING-SNAP

92033-0830

$11.88

92033B

RING-SNAP

92033-1286

$8.03

92049

SEAL-OIL

92049-0870

$21.20

92055

RING-O

92055-0994

$5.73

92066

PLUG

92066-0032

$11.66

92093

SEAL,FORK OUTER

92093-0789

$21.57

92153

BOLT,SOCKET,8X30

92153-0500

$10.86

92153A

BOLT,SOCKET,8X35

92153-0854

$7.83

92154

BOLT

92154-4220

$2.36

92161

DAMPER

92161-2369

$6.47

92210

NUT

92210-1839

$4.08

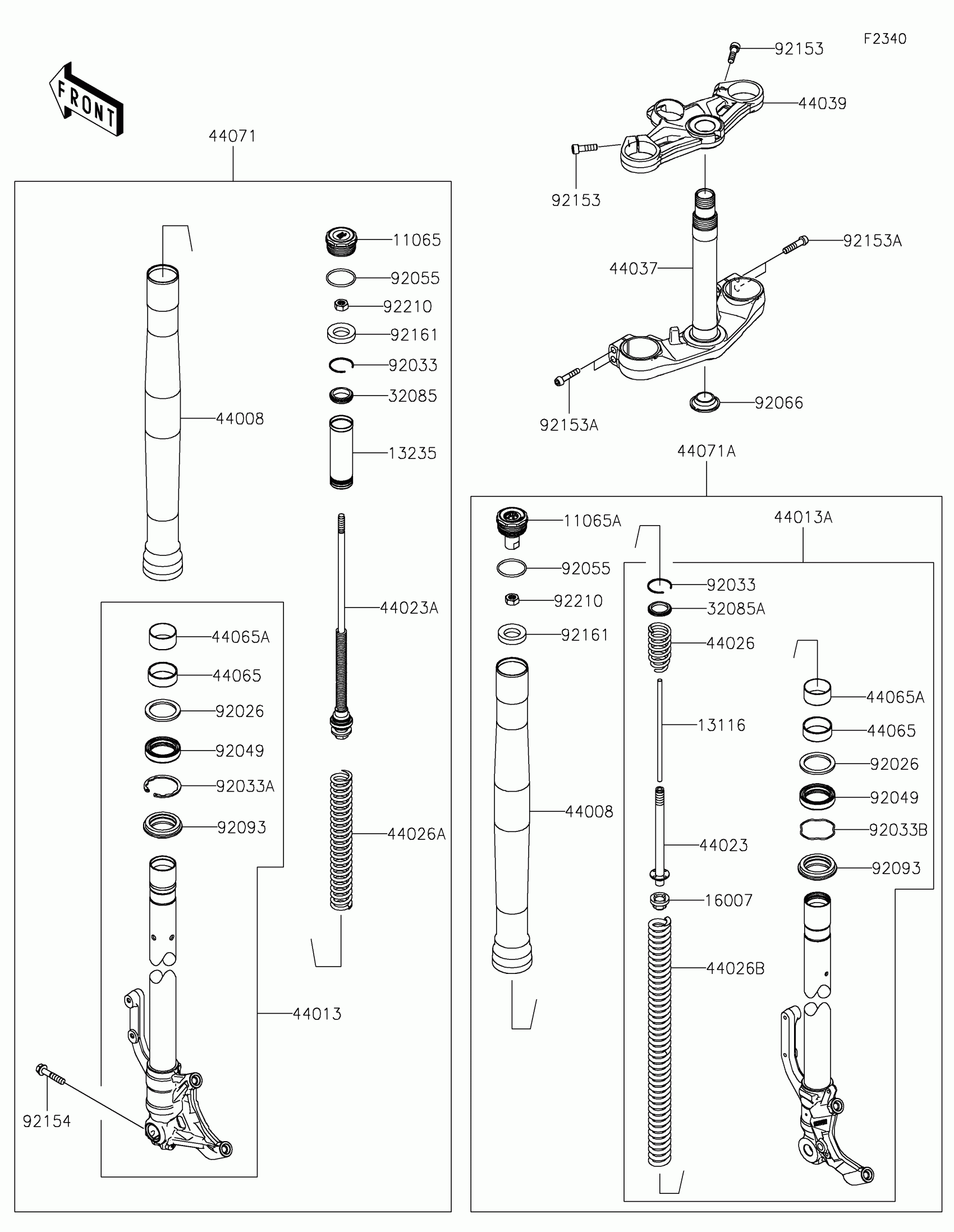

Kawasaki Ninja ZX-4RR Front Fork Diagram

CAP,FORK

CAP,FORK

ROD-PUSH

GUIDE-COMP

SEAT-SPRING

STOPPER

STOPPER

PIPE-FORK OUTER

PIPE-FORK INNER,LH

PIPE-FORK INNER,RH

CYLINDER-SET-FORK,RH

CYLINDER-SET-FORK,LH

SPRING-FRONT FORK

SPRING-FRONT FORK

SPRING-FRONT FORK

HOLDER-FORK UNDER

HOLDER-FORK UPPER

BUSHING-FRONT FORK

BUSHING-FRONT FORK

DAMPER-ASSY,FORK,LH

DAMPER-ASSY,FORK,RH

SPACER

RING-SNAP

RING-SNAP

RING-SNAP

SEAL-OIL

RING-O

PLUG

SEAL,FORK OUTER

BOLT,SOCKET,8X30

BOLT,SOCKET,8X35

BOLT

DAMPER

NUT
