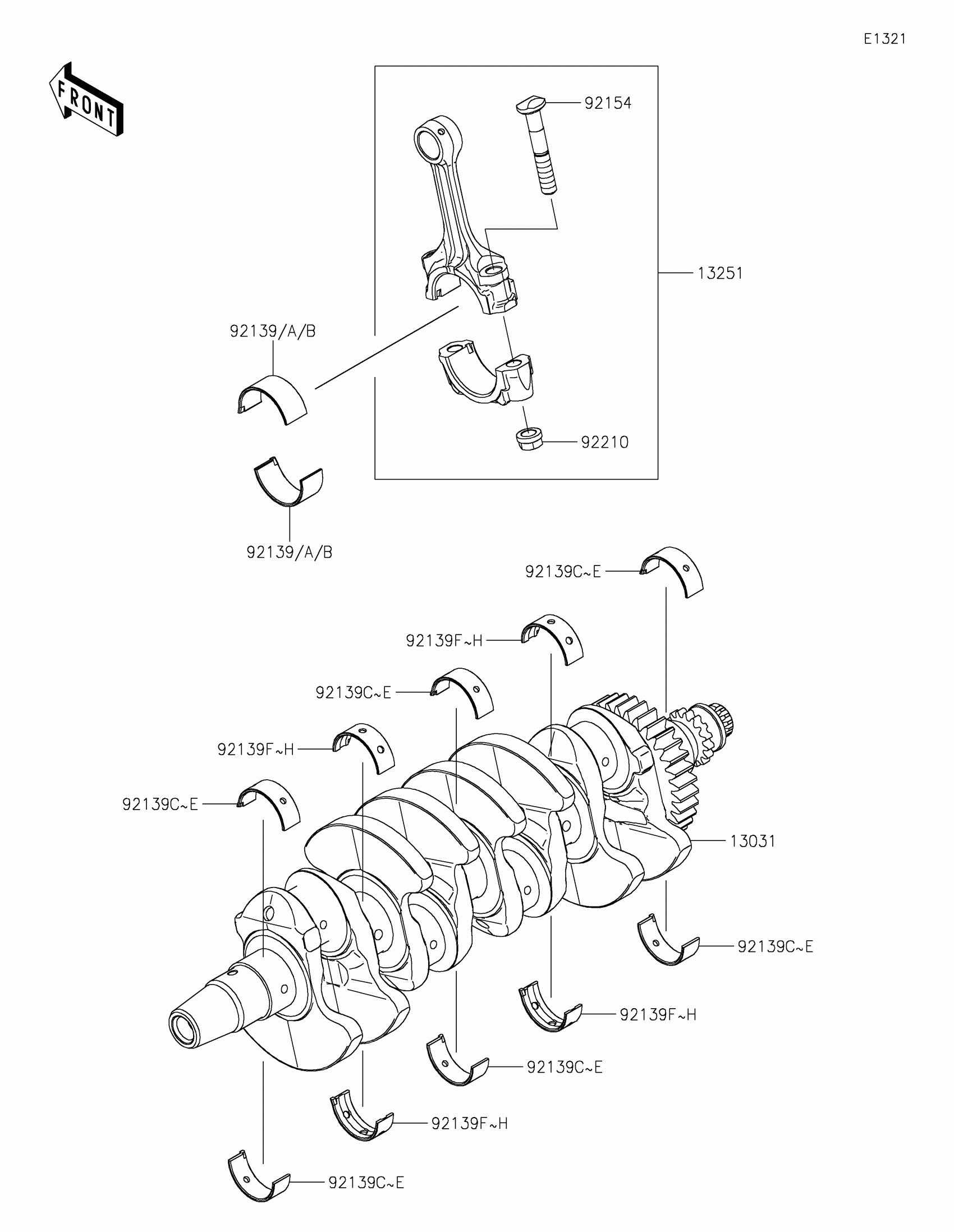

Kawasaki Ninja ZX-4RR Crankshaft Diagram

Description

Price

13031

CRANKSHAFT-COMP

13031-1532

$1,082.61

13251

ROD-ASSY-CONNECTING,H

13251-0748-HH

$174.85

92139

BUSHING,CRANK PIN,BLUE

92139-1179

Unavailable

92139A

BUSHING,CRANK PIN,BLACK

92139-1180

$9.75

92139B

BUSHING,CRANK PIN,BROWN

92139-1181

Unavailable

92139C

BUSHING,#1,BLUE

92139-1182

Unavailable

92139D

BUSHING,#1,BLACK

92139-1183

$8.08

92139E

BUSHING,#1,BROWN

92139-1184

Unavailable

92139F

BUSHING,#2,BLUE

92139-1185

Unavailable

92139G

BUSHING,#2,BLACK

92139-1186

$10.13

92139H

BUSHING,#2,BROWN

92139-1187

Unavailable

92154

BOLT,7MM

92154-7075

$2.78

92210

NUT,CONNECTING ROD,7MM

92210-0384

$6.75

Kawasaki Ninja ZX-4RR Crankshaft Diagram

CRANKSHAFT-COMP

ROD-ASSY-CONNECTING,H

BUSHING,CRANK PIN,BLUE

BUSHING,CRANK PIN,BLACK

BUSHING,CRANK PIN,BROWN

BUSHING,#1,BLUE

BUSHING,#1,BLACK

BUSHING,#1,BROWN

BUSHING,#2,BLUE

BUSHING,#2,BLACK

BUSHING,#2,BROWN

BOLT,7MM

NUT,CONNECTING ROD,7MM

BUSHING,#1,BLUE

BUSHING,#1,BLACK

BUSHING,#1,BROWN
