Description

Price

11058

BRACKET

11058-1060

$2.29

13272

PLATE,BREATHER,UPP

13272-2748

$3.52

13272A

PLATE,BREATHER,SIDE

13272-2749

$0.60

14001

SET-CRANKCASE

14001-0740

$1,074.31

14013

RING-POSITION

14013-004

$10.19

14013A

RING-POSITION

14013-1051

$3.96

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

39193

PIPE-OIL

39193-0595

$43.22

92005

FITTING

92005-1447

$37.51

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92043A

PIN,3.5X6X16

92043-1309

$5.52

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$17.22

92049

SEAL-OIL,TC32578

92049-1474

$18.44

92049A

SEAL-OIL,TC14245

92049-1520

$13.87

92055

RING-O,6.8X1.9

92055-0039

$4.97

92055A

RING-O,4.8MM

92055-0845

Unavailable

92062

NOZZLE

92062-0010

$5.33

92062A

NOZZLE

92062-0568

$5.64

92066

PLUG

92066-0836

$4.87

92154

BOLT,SOCKET,6X16

92154-0235

$2.95

92154A

BOLT,FLANGED,6X14

92154-1426

$2.00

92173

CLAMP

92173-2552

$1.36

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

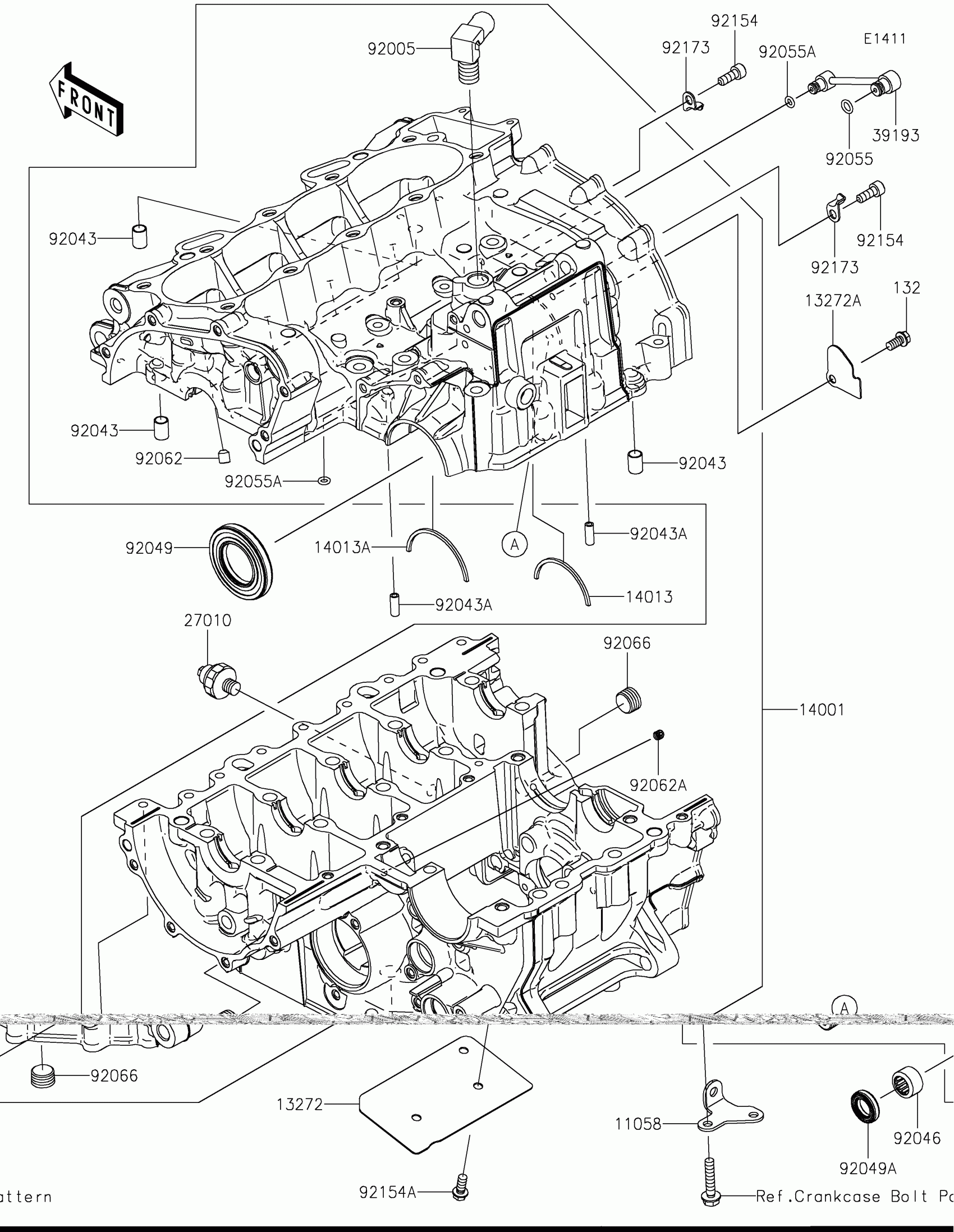

Kawasaki Ninja ZX-4RR Crankcase Diagram

BRACKET

PLATE,BREATHER,UPP

PLATE,BREATHER,SIDE

SET-CRANKCASE

RING-POSITION

RING-POSITION

SWITCH,OIL PRESSURE

PIPE-OIL

FITTING

PIN,DOWEL,10X14

PIN,3.5X6X16

BEARING-NEEDLE,HK1412FM

SEAL-OIL,TC32578

SEAL-OIL,TC14245

RING-O,6.8X1.9

RING-O,4.8MM

NOZZLE

NOZZLE

PLUG

BOLT,SOCKET,6X16

BOLT,FLANGED,6X14

CLAMP

BOLT-FLANGED-SMALL,6X12
