2025 Kawasaki Ninja ZX-4R ABS Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2025 Kawasaki Ninja ZX-4R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

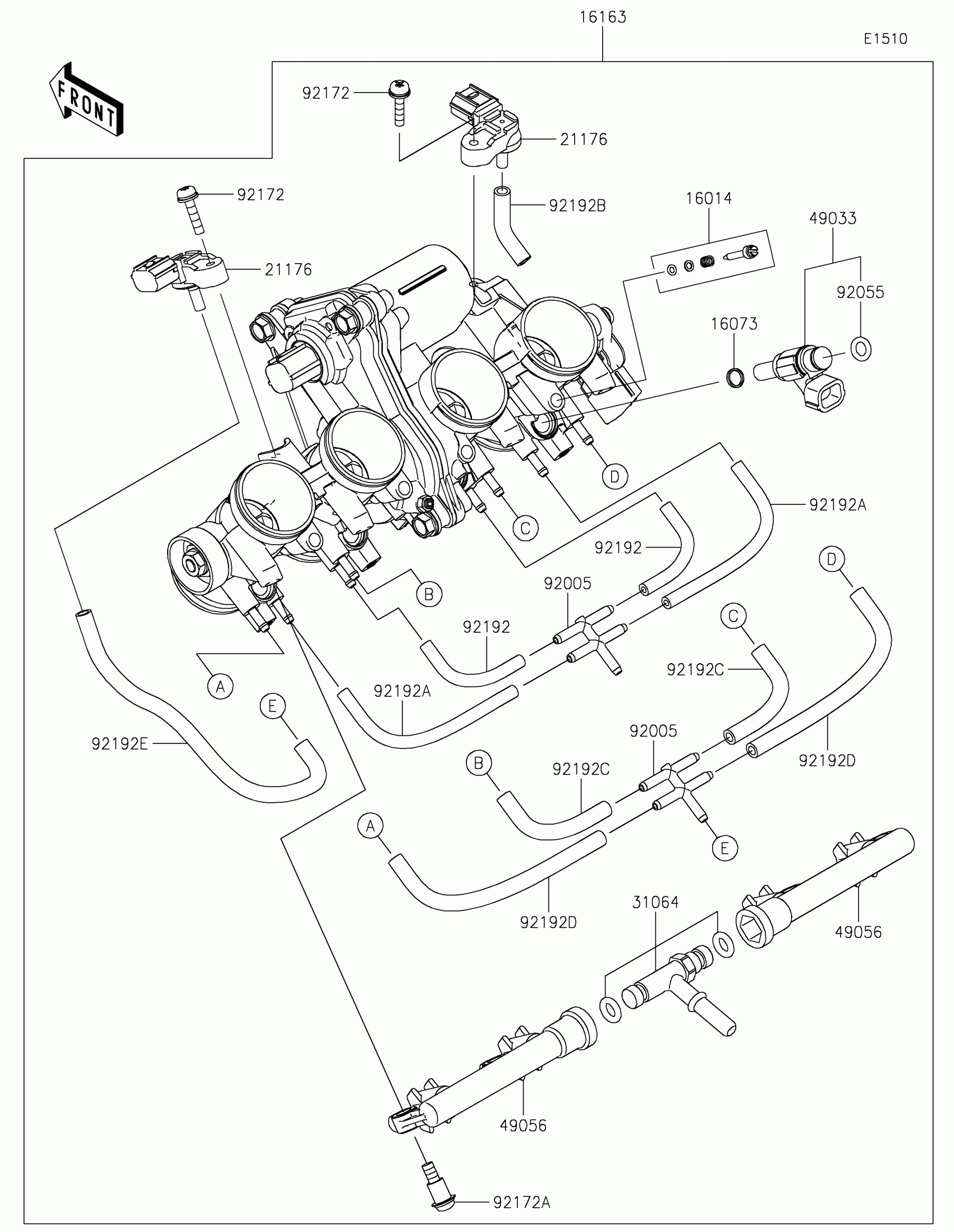

2025 Kawasaki Ninja ZX-4R ABS Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16014

SCREW-PILOT AIR

16014-0023

1
Out of stock

16073

INSULATOR

16073-0884

1
Out of stock

16163

THROTTLE-ASSY

16163-1304

1
Out of stock

21176

SENSOR,PRESSURE

21176-0906

1
Out of stock

31064

PIPE-COMP

31064-0730

1
Out of stock

49033

NOZZLE-INJECTION

49033-0584

1
Out of stock

49056

PIPE-INJECTION

49056-0565

1
Out of stock

92005

FITTING

92005-0989

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-0124

1
Out of stock

92172

SCREW

92172-1383

1
Out of stock

92172A

SCREW

92172-1384

1
Out of stock

92192

TUBE

92192-2355

1
Out of stock

92192A

TUBE

92192-2356

1
Out of stock

92192B

TUBE

92192-2357

1
Out of stock

92192C

TUBE

92192-2358

1
Out of stock

92192D

TUBE

92192-2359

1
Out of stock

92192E

TUBE

92192-2360

1
Out of stock
