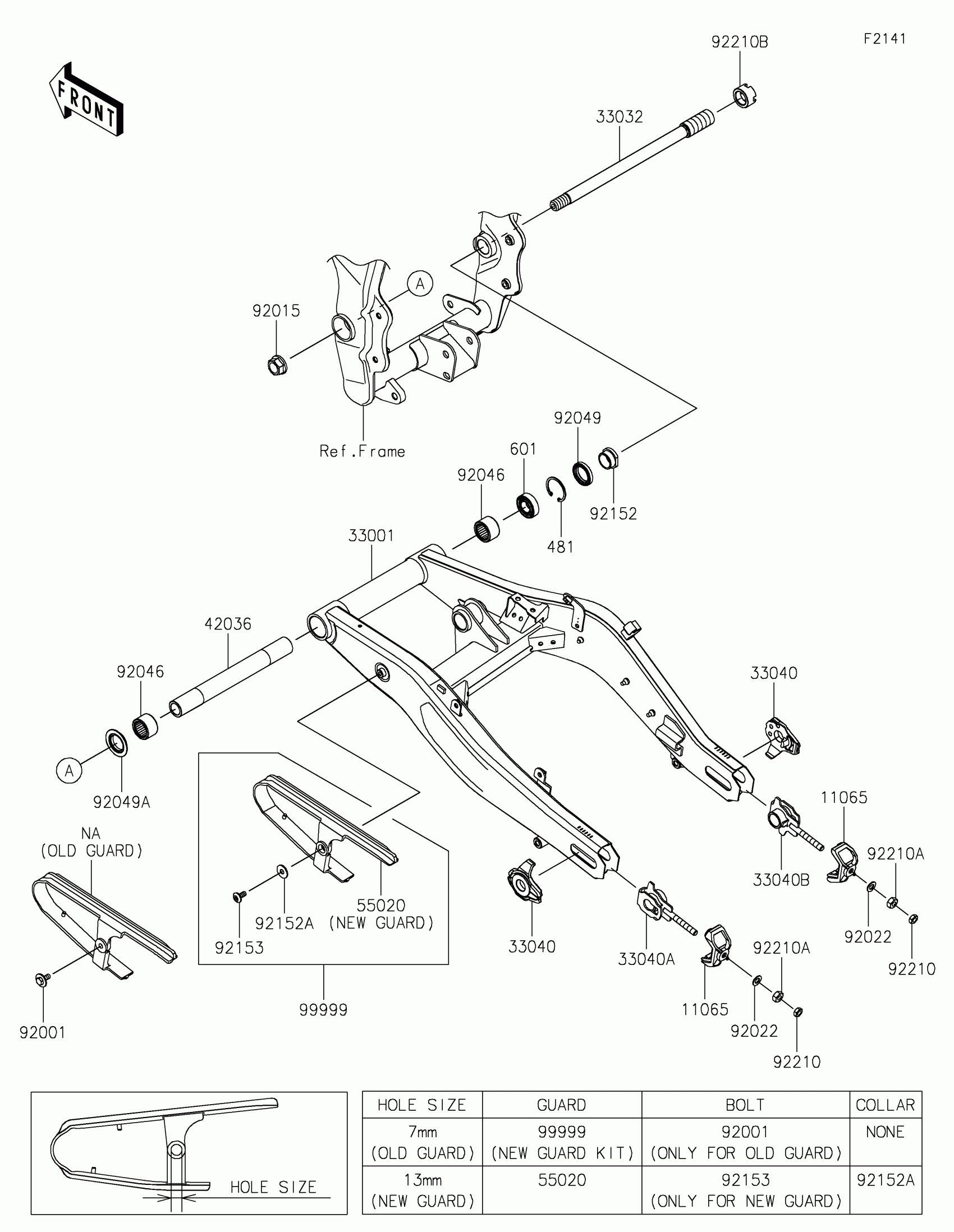

Kawasaki Ninja ZX-4R ABS Swingarm(PPFNN/PRFNN/PRFNL) Diagram

Description

Price

11065

CAP,CHAIN ADJUSTER,F.S.BLACK

11065-1329-18R

$15.11

33001

ARM-COMP-SWING,F.S.BLACK

33001-0765-18R

$618.32

33032

SHAFT-SWING ARM

33032-0062

$97.53

33040

ADJUSTER-CHAIN,F.S.BLACK

33040-0096-18R

$14.38

33040A

ADJUSTER-CHAIN,LH

33040-0102

$17.62

33040B

ADJUSTER-CHAIN,RH

33040-0103

$17.62

42036

SLEEVE,17.5X25X224

42036-0866

$74.67

55020

GUARD,CHAIN

55020-2359

$43.64

92001

BOLT,6X16

92001-1950

$4.31

92015

NUT,FLANGED,16MM

92015-1946

$12.74

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92046

BEARING-NEEDLE,BM2520

92046-1228

$21.24

92049

SEAL-OIL

92049-0827

$4.69

92049A

SEAL-OIL,MF025N1

92049-1426

$10.28

92152

COLLAR

92152-2874

$14.65

92152A

COLLAR

92152-3814

$6.38

92153

BOLT,SOCKET,6X14

92153-1361

$2.61

92210

NUT,8MM

92210-0116

$2.26

92210A

NUT,8MM

92210-0117

$2.26

92210B

NUT,CASTLE,22MM

92210-1902

$23.86

99999

KIT,CHAIN GUARD,ZX-25R/ZX-4R

99999-0897

$50.69

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

601

BEARING-BALL,#6003G

601B6003G

$17.91
