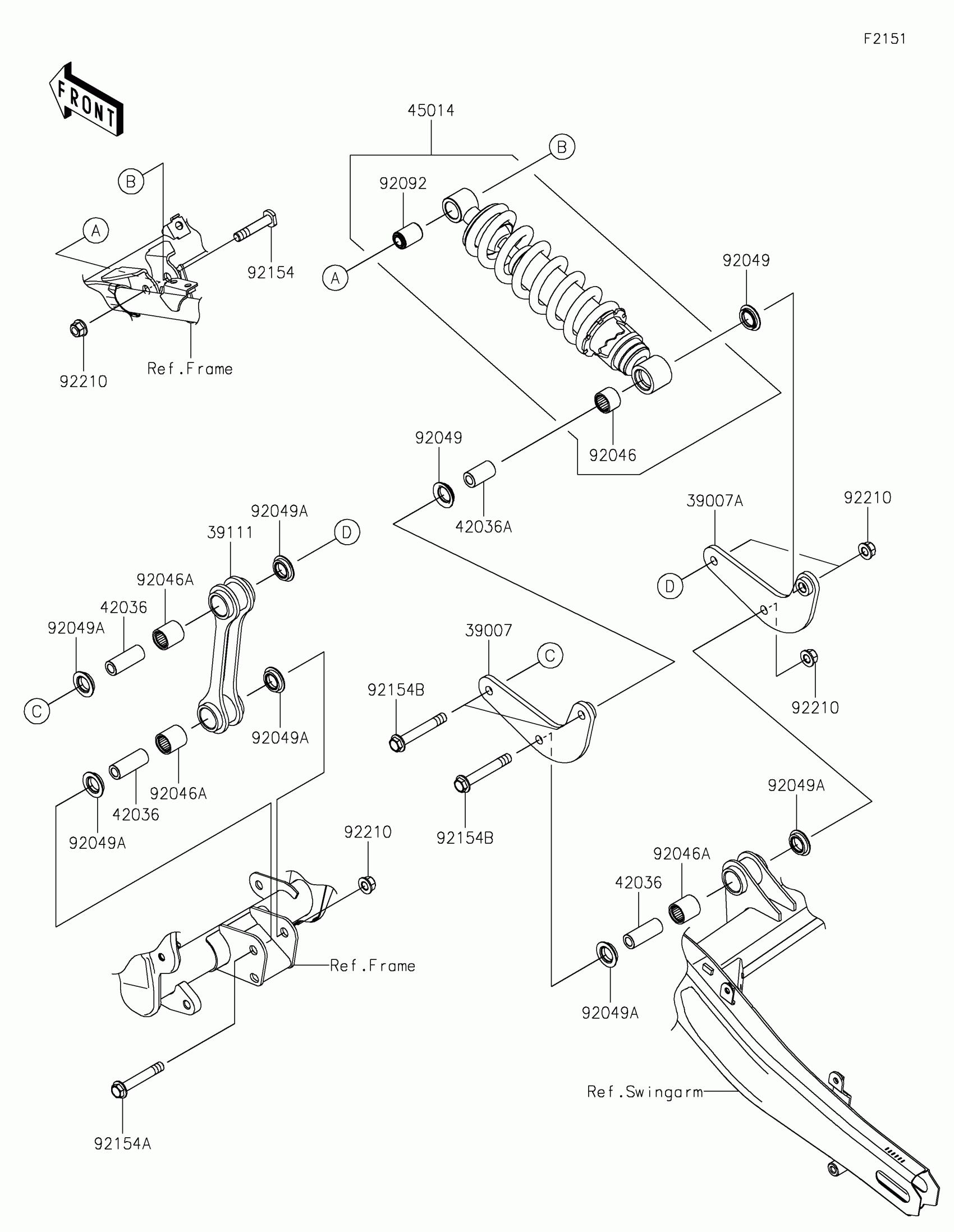

Kawasaki Ninja ZX-4R ABS Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,LH

39007-0507

$29.67

39007A

ARM-SUSP,RH

39007-0508

$29.67

39111

ROD-TIE

39111-0392

$93.22

42036

SLEEVE,10.1X17X44.5

42036-0718

$22.61

42036A

SLEEVE,10.1X18X32

42036-1344

$10.83

45014

SHOCKABSORBER

45014-0782

$444.74

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

$12.45

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

$13.34

92049

SEAL-OIL

92049-0133

$9.71

92049A

SEAL-OIL,MHA17245.7F

92049-0850

Unavailable

92092

BUSHING-RUBBER

92092-0041

$31.16

92154

BOLT,10X50

92154-2165

$5.14

92154A

BOLT,FLANGED,10X63

92154-4256

$8.41

92154B

BOLT,FLANGED,10X70

92154-4434

$10.08

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
