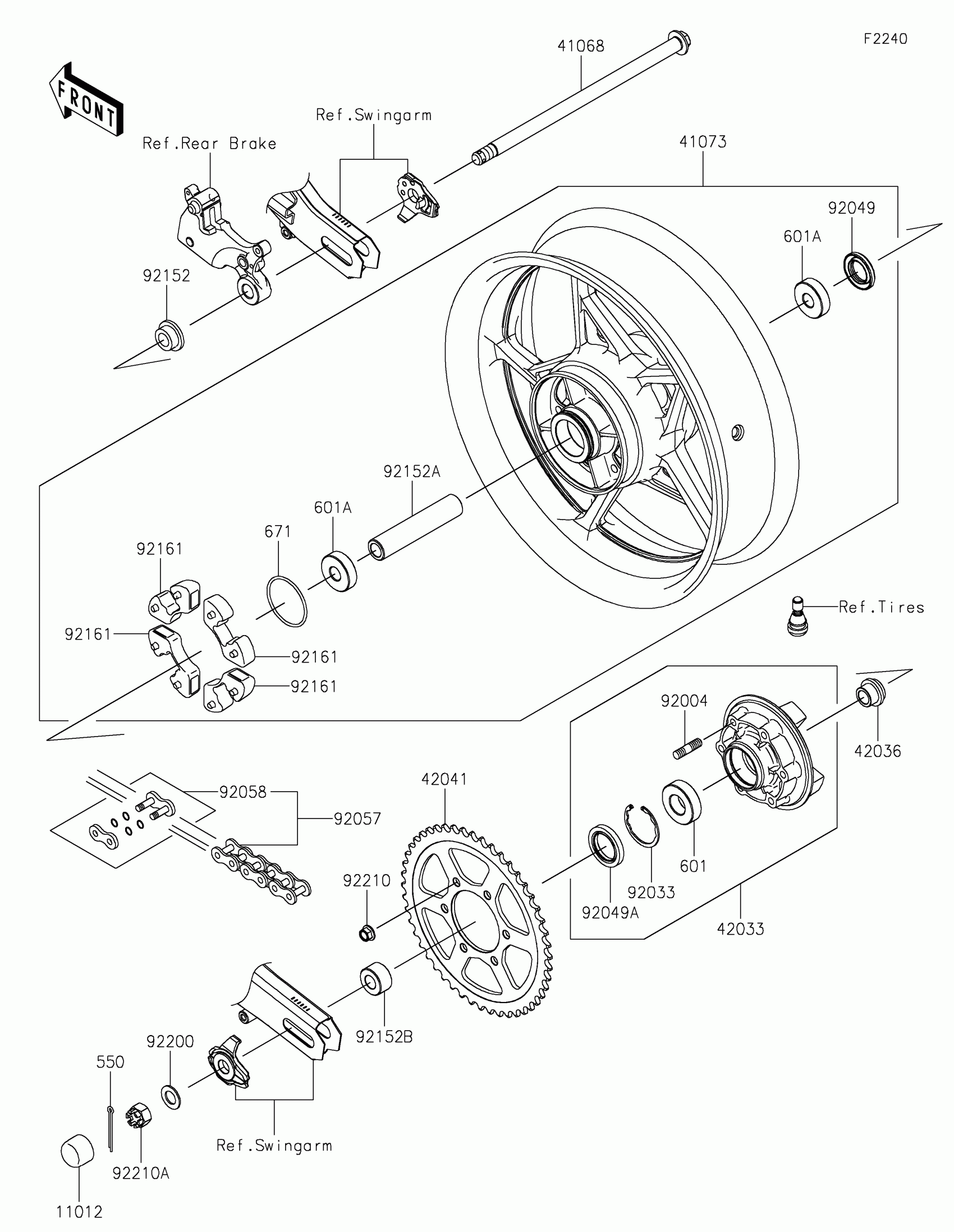

Kawasaki Ninja ZX-4R ABS Rear Wheel/Chain Diagram

Description

Price

11012

CAP,AXLE NUT

11012-1592

$7.54

41068

AXLE,RR

41068-0652

$64.88

41073

WHEEL-ASSY,RR,G.BLACK

41073-0804-QT

$909.77

42033

COUPLING-ASSY,RR HUB

42033-0570

$239.47

42036

SLEEVE

42036-0874

$11.97

42041

SPROCKET-HUB,48T

42041-0178

$123.22

92004

STUD,10X19

92004-0048

$8.51

92033

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,27X47X7

92049-0802

$7.29

92049A

SEAL-OIL

92049-1287

$13.08

92057

CHAIN,DRIVE,DID520VM5X114L

92057-0904

$148.37

92058

JOINT-CHAIN

92058-0088

$13.53

92152

COLLAR,17X28(38)X15

92152-0844

$30.68

92152A

COLLAR,25X27.2X133

92152-2873

$27.07

92152B

COLLAR,17X35X19.5

92152-2876

$11.17

92161

DAMPER,SHOCK,RR HUB

92161-0303

$15.87

92200

WASHER,17.3X30X2

92200-1916

$1.17

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,CASTLE,16X19

92210-1585

$6.63

550

PIN-COTTER,4.0X35

550AA4035

$2.17

601

BEARING-BALL

601B6205UU

$29.62

601A

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

$33.26

671

O RING,60MM

671B2560

$6.91
