Description

Price

11058

BRACKET,BRAKE HOSE

11058-0609

$3.28

11058A

BRACKET,BRAKE HOSE

11058-1022

$17.83

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-0030

$66.42

43015

CYLINDER-ASSY-MASTER,RR

43015-0784

$246.33

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0060

$32.45

43095

HOSE-BRAKE

43095-1755

$13.17

43095A

HOSE-BRAKE,ABS PUMP-RR M/C

43095-1889

$261.28

43095B

HOSE-BRAKE,ABS PUMP-RR CALIPER

43095-1891

$210.14

49016

COVER-SEAL,BRAKE PISTON

49016-1103

$13.37

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN

92043-0904

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92153

BOLT,OIL,L=37

92153-0628

$11.83

92154

BOLT

92154-0929

$3.71

92154A

BOLT,BANJO,10X23

92154-1712

$3.94

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP

92171-0818

$4.41

92173

CLAMP,FUEL PIPE

92173-1213

$1.48

92173A

CLAMP,RR HUGGER

92173-2179

$8.80

130

BOLT-FLANGED,6X14

130BA0614

$1.20

318

NUT-HEX-SMALL

318BB0800

$3.94

550

PIN-COTTER,2.0X15

550AA2015

$1.12

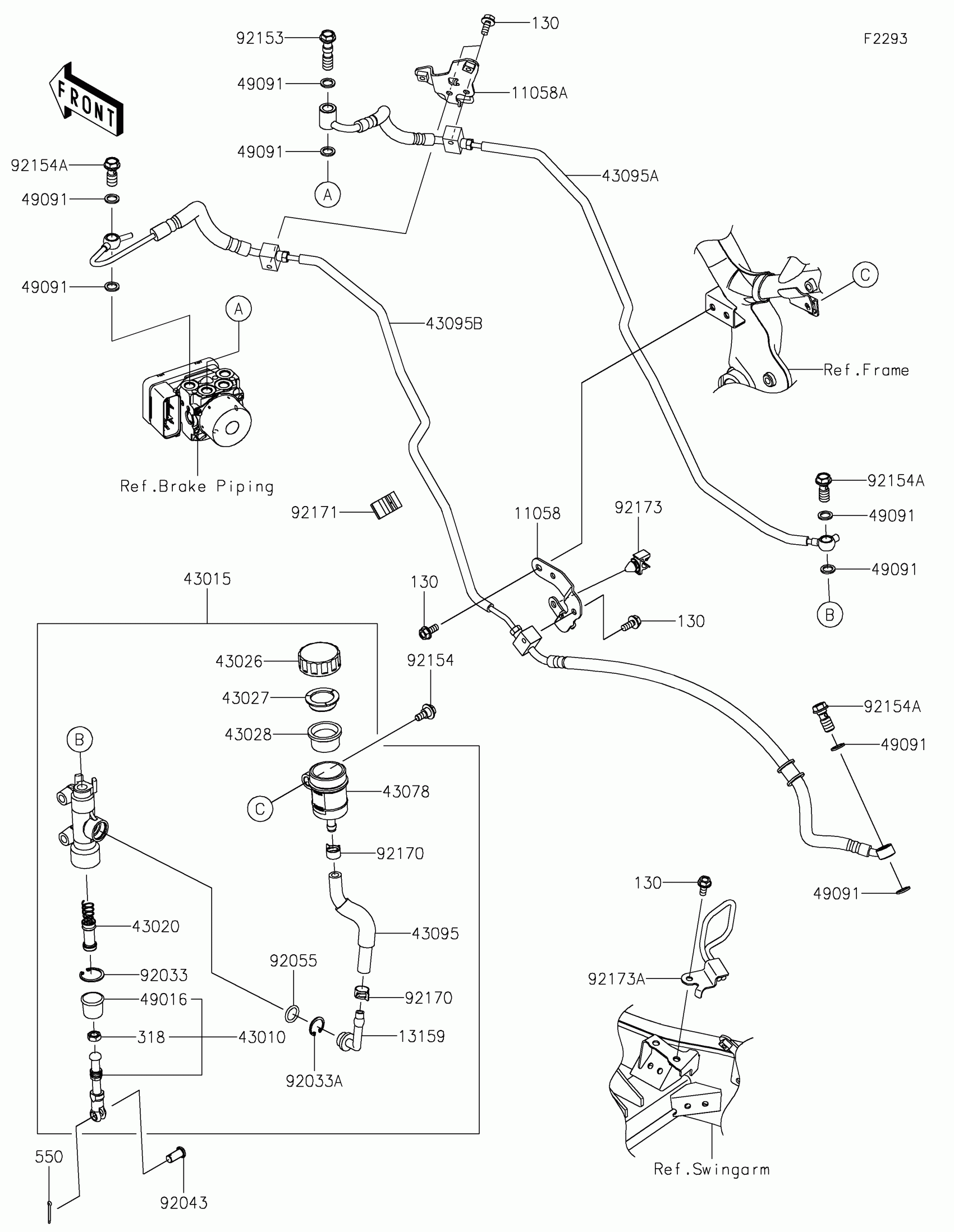

Kawasaki Ninja ZX-4R ABS Rear Master Cylinder Diagram

BRACKET,BRAKE HOSE

BRACKET,BRAKE HOSE

CONNECTOR

ROD-ASSY-BRAKE

CYLINDER-ASSY-MASTER,RR

PISTON-COMP-BRAKE

CAP-BRAKE

PLATE-DIAPHRAGM

DIAPHRAGM

RESERVOIR

HOSE-BRAKE

HOSE-BRAKE,ABS PUMP-RR M/C

HOSE-BRAKE,ABS PUMP-RR CALIPER

COVER-SEAL,BRAKE PISTON

WASHER-SEAL,10.1X14.5X1.5

RING-SNAP,20.9X24.6X1.2

RING-SNAP,20.5MM

PIN

RING-O,14.8X2.4

BOLT,OIL,L=37

BOLT

BOLT,BANJO,10X23

CLAMP,HOSE

CLAMP

CLAMP,FUEL PIPE

CLAMP,RR HUGGER

BOLT-FLANGED,6X14

NUT-HEX-SMALL

PIN-COTTER,2.0X15
