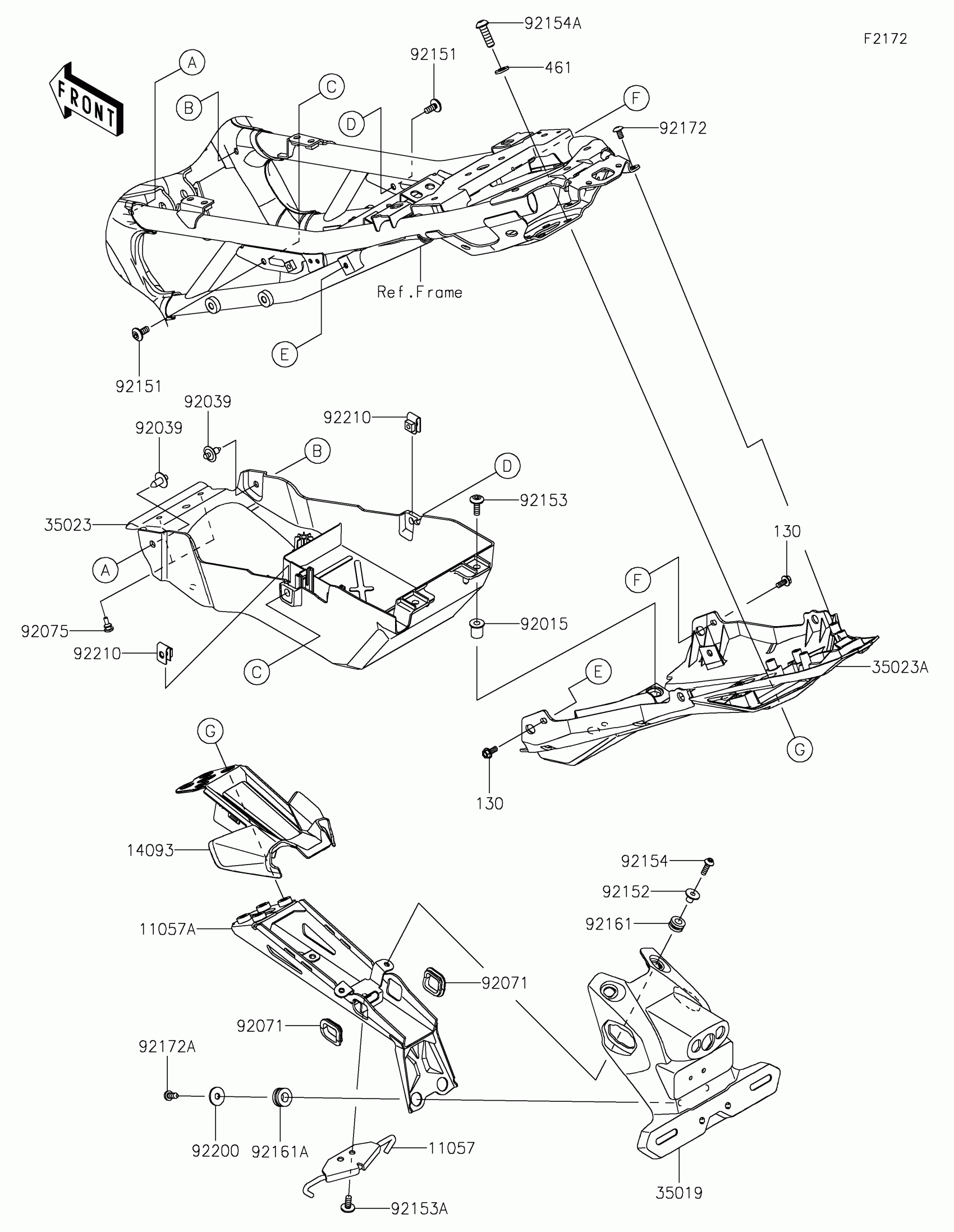

Kawasaki Ninja ZX-4R ABS Rear Fender(s) Diagram

Description

Price

11057

BRACKET,HOOK

11057-2916

$9.62

11057A

BRACKET,FLAP

11057-7472

$95.62

14093

COVER,FLAP

14093-0960

$29.43

35019

FLAP

35019-0670

$41.43

35023

FENDER-REAR,FR

35023-0465

$53.13

35023A

FENDER-REAR,RR

35023-0492

$45.97

92015

NUT

92015-1700

$8.58

92039

RIVET

92039-1289

$2.80

92071

GROMMET

92071-0819

$1.34

92075

DAMPER,6X10X15

92075-1808

$1.39

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR

92152-2761

$8.84

92153

BOLT,6X18

92153-0816

$2.15

92153A

BOLT,SOCKET,6X14

92153-1361

$2.61

92154

BOLT,SOCKET,5X16

92154-1701

$1.19

92154A

BOLT,SOCKET,8X25

92154-4432

$3.74

92161

DAMPER

92161-0056

$3.44

92161A

DAMPER,10X20X8.8

92161-1664

$3.02

92172

SCREW,5X12

92172-0821

$0.85

92172A

SCREW,TAPPING,6X14

92172-0856

$1.48

92200

WASHER,6.5X20X1.6

92200-1962

$3.74

92210

NUT,6MM

92210-0218

$2.55

130

BOLT-FLANGED,5X12

130BB0512

$1.93

461

WASHER-SPRING,8MM

461DA0800

$0.40
