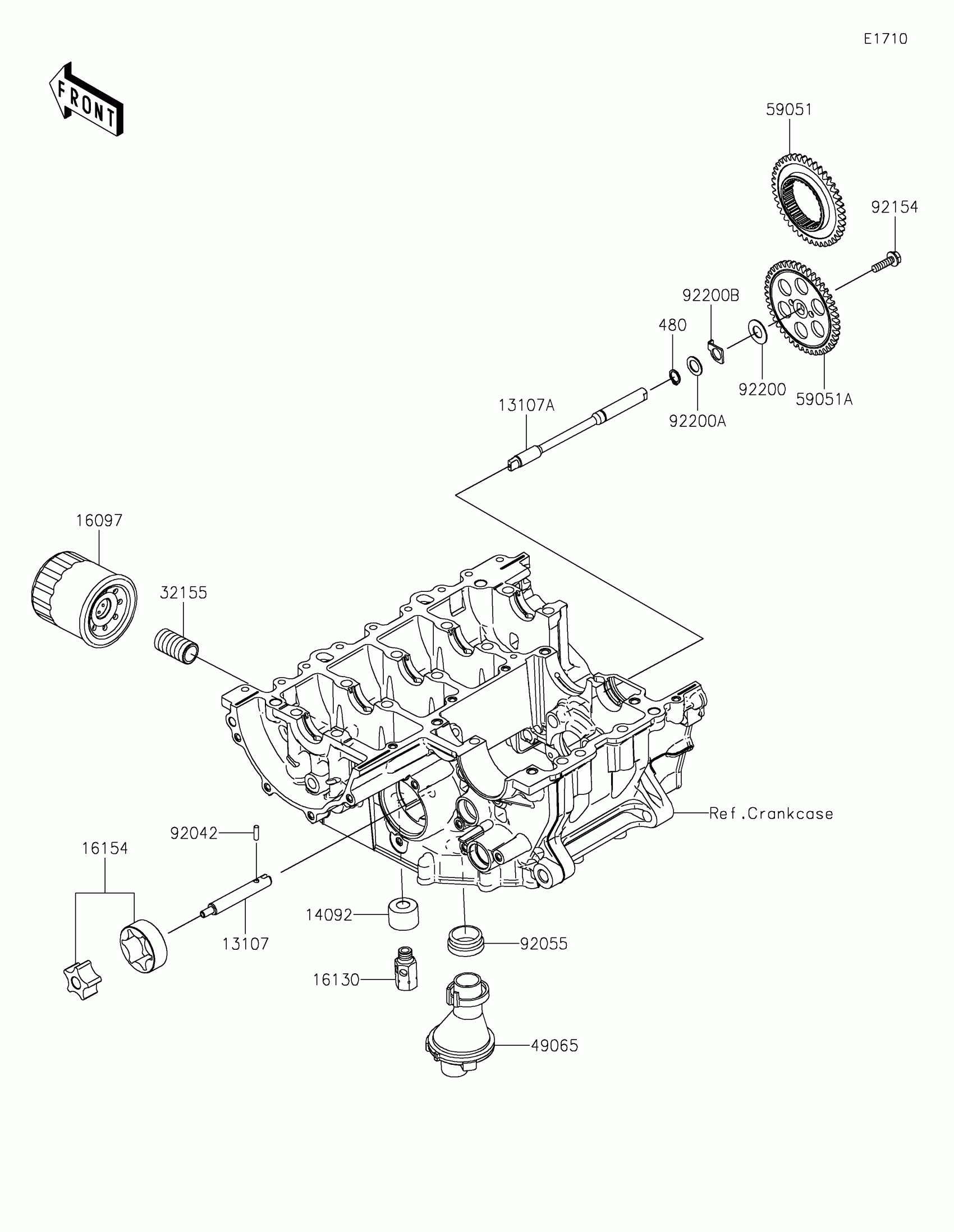

Kawasaki Ninja ZX-4R ABS Oil Pump/Oil Filter Diagram

Description

Price

13107

SHAFT,OIL PUMP,LH

13107-0903

$23.06

13107A

SHAFT,OIL PUMP,RH

13107-0920

$56.97

14092

COVER,RELIEF VALVE

14092-1002

$2.64

16097

FILTER-ASSY-OIL

16097-0552

Unavailable

16130

VALVE-ASSY-RELIEF

16130-0006

$41.98

16154

ROTOR-PUMP

16154-0753

$65.57

32155

PIPE,OIL FILTER

32155-0029

$14.94

49065

FILTER-OIL

49065-0715

$24.15

59051

GEAR-SPUR,41T

59051-0873

$97.65

59051A

GEAR-SPUR,44T

59051-0874

$131.78

92042

PIN,DOWEL,4X13.8

92042-030

$3.92

92055

RING-O,OIL FILTER

92055-1503

$9.51

92154

BOLT,FLANGED,6X22

92154-1525

$1.71

92200

WASHER,11.3X23X1

92200-0719

$2.67

92200A

WASHER

92200-1009

$5.07

92200B

WASHER

92200-2558

$1.92

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24
