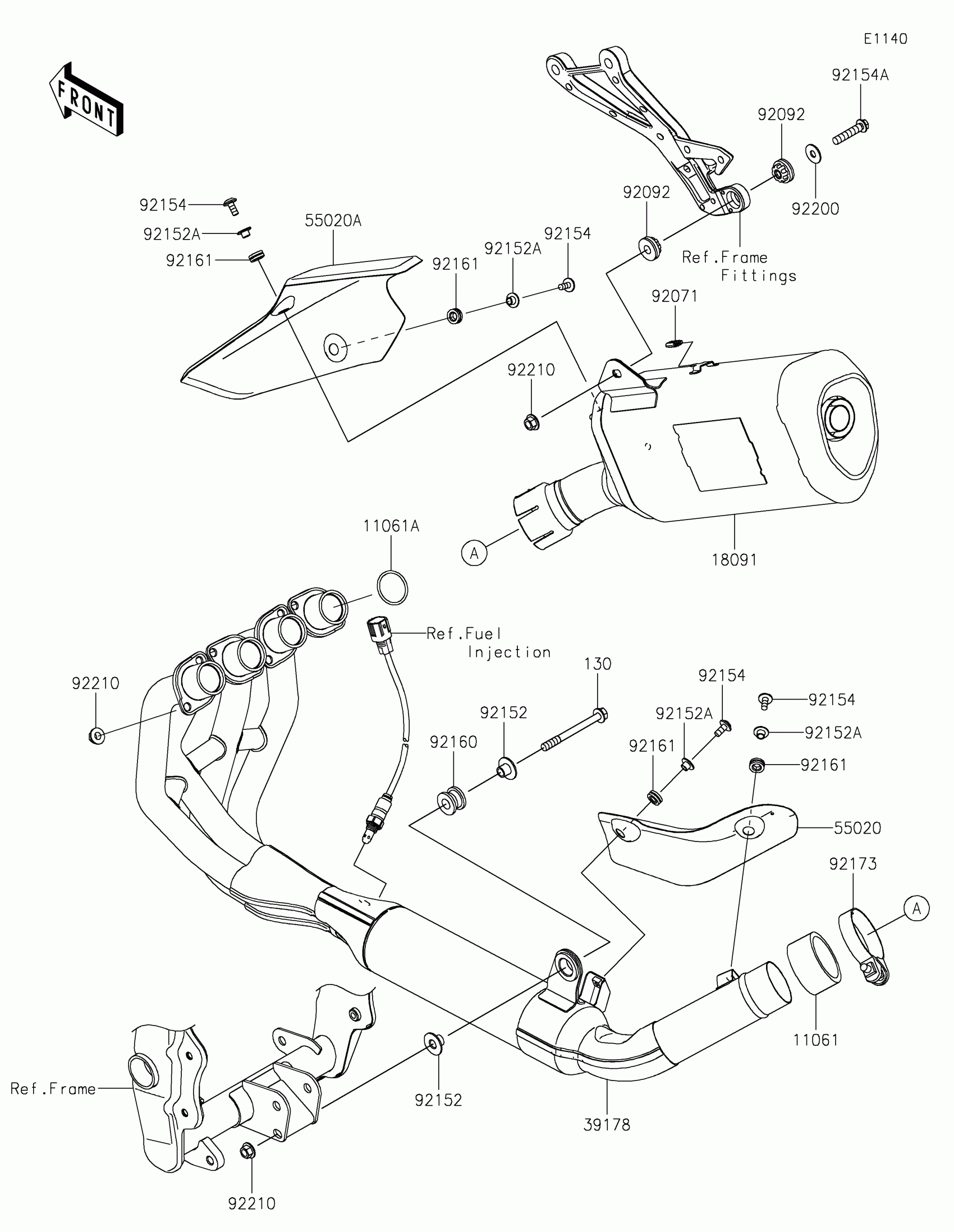

Kawasaki Ninja ZX-4R ABS Muffler(s) Diagram

Description

Price

11061

GASKET,50.8X62X30

11061-0447

$25.48

11061A

GASKET,MANIFOLD

11061-1372

$7.87

18091

BODY-COMP-MUFFLER

18091-1269

$1,209.13

39178

MANIFOLD-COMP-EXHAUST

39178-0454

$1,245.53

55020

GUARD,FR

55020-2391

$195.93

55020A

GUARD,RR

55020-2392

$261.60

92071

GROMMET

92071-0760

$6.57

92092

BUSHING-RUBBER

92092-0044

$5.84

92152

COLLAR

92152-2367

$9.73

92152A

COLLAR,6.3X8.3X16

92152-2850

$1.72

92154

BOLT,SOCKET,6X14

92154-0907

$1.97

92154A

BOLT,FLANGED,8X40

92154-4399

$2.44

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92161

DAMPER

92161-1475

$5.33

92173

CLAMP

92173-2516

$23.00

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.61

92210

NUT

92210-1312

$3.94

130

BOLT-FLANGED,8X85

130CB0885

$5.33
