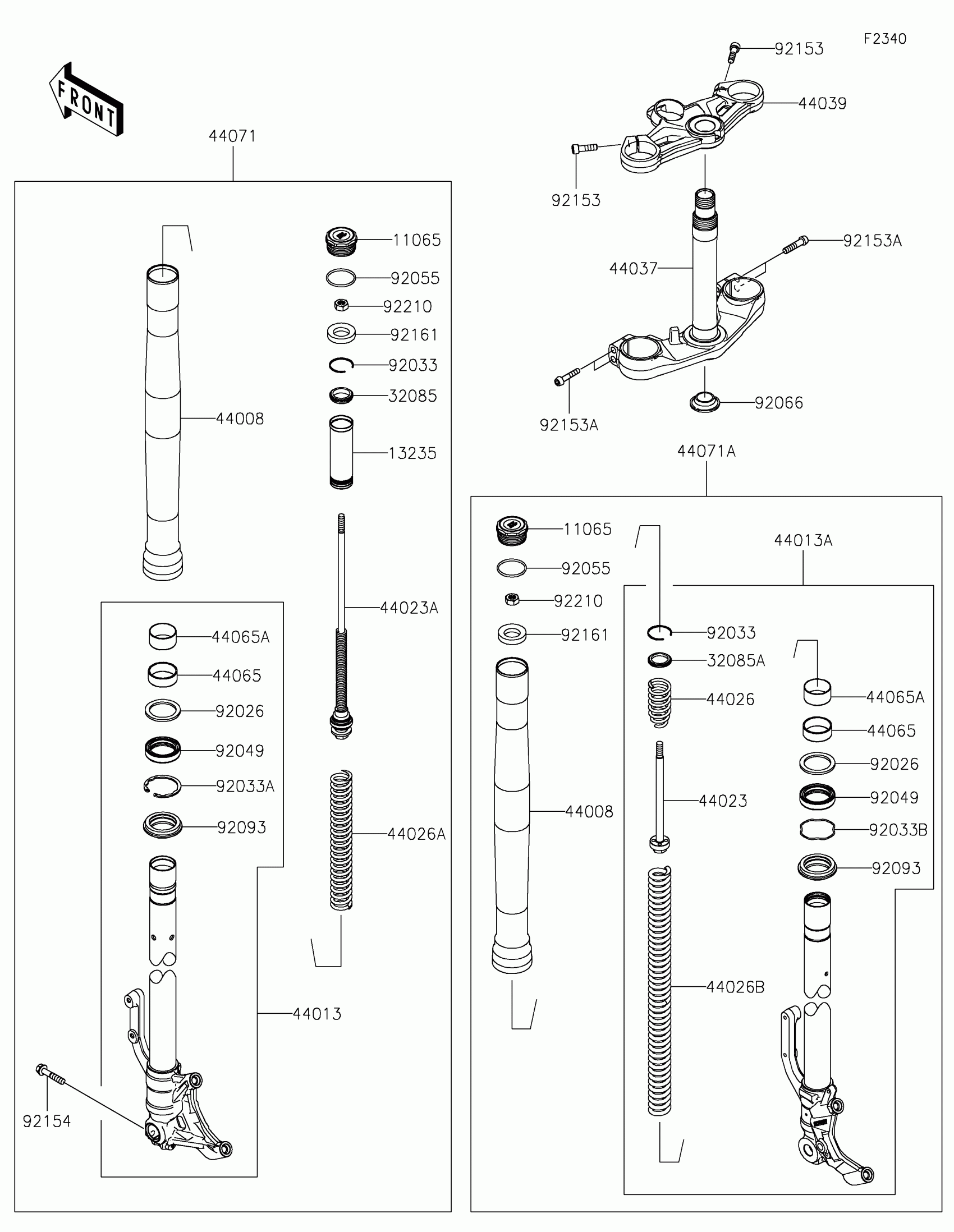

Kawasaki Ninja ZX-4R ABS Front Fork Diagram

#

Description
Price

11065

CAP,FORK

11065-1372

$85.60

13235

GUIDE-COMP

13235-0015

$87.22

32085

STOPPER

32085-0883

$7.44

32085A

STOPPER

32085-0884

$7.20

44008

PIPE-FORK OUTER

44008-0092

$350.93

44013

PIPE-FORK INNER,LH

44013-0401

$576.45

44013A

PIPE-FORK INNER,RH

44013-0402

$576.45

44023

CYLINDER-SET-FORK,RH

44023-0174

$17.97

44023A

CYLINDER-SET-FORK,LH

44023-0191

$86.15

44026

SPRING-FRONT FORK

44026-0265

$5.69

44026A

SPRING-FRONT FORK

44026-0291

$24.58

44026B

SPRING-FRONT FORK

44026-0292

$34.73

44037

HOLDER-FORK UNDER

44037-0194

$717.31

44039

HOLDER-FORK UPPER

44039-0196

$284.33

44065

BUSHING-FRONT FORK

44065-0069

$17.68

44065A

BUSHING-FRONT FORK

44065-0070

$9.26

44071

DAMPER-ASSY,FORK,LH

44071-1577

$836.63

44071A

DAMPER-ASSY,FORK,RH

44071-1578

$836.63

92026

SPACER

92026-0905

$7.39

92033

RING-SNAP

92033-0829

$3.57

92033A

RING-SNAP

92033-0830

$11.37

92033B

RING-SNAP

92033-1286

$7.88

92049

SEAL-OIL

92049-0870

$19.88

92055

RING-O

92055-0994

$5.02

92066

PLUG

92066-0032

$11.19

92093

SEAL,FORK OUTER

92093-0789

$20.22

92153

BOLT,SOCKET,8X30

92153-0500

$10.44

92153A

BOLT,SOCKET,8X35

92153-0854

$5.98

92154

BOLT

92154-4220

$1.97

92161

DAMPER

92161-2369

$5.63

92210

NUT

92210-1839

$3.66
