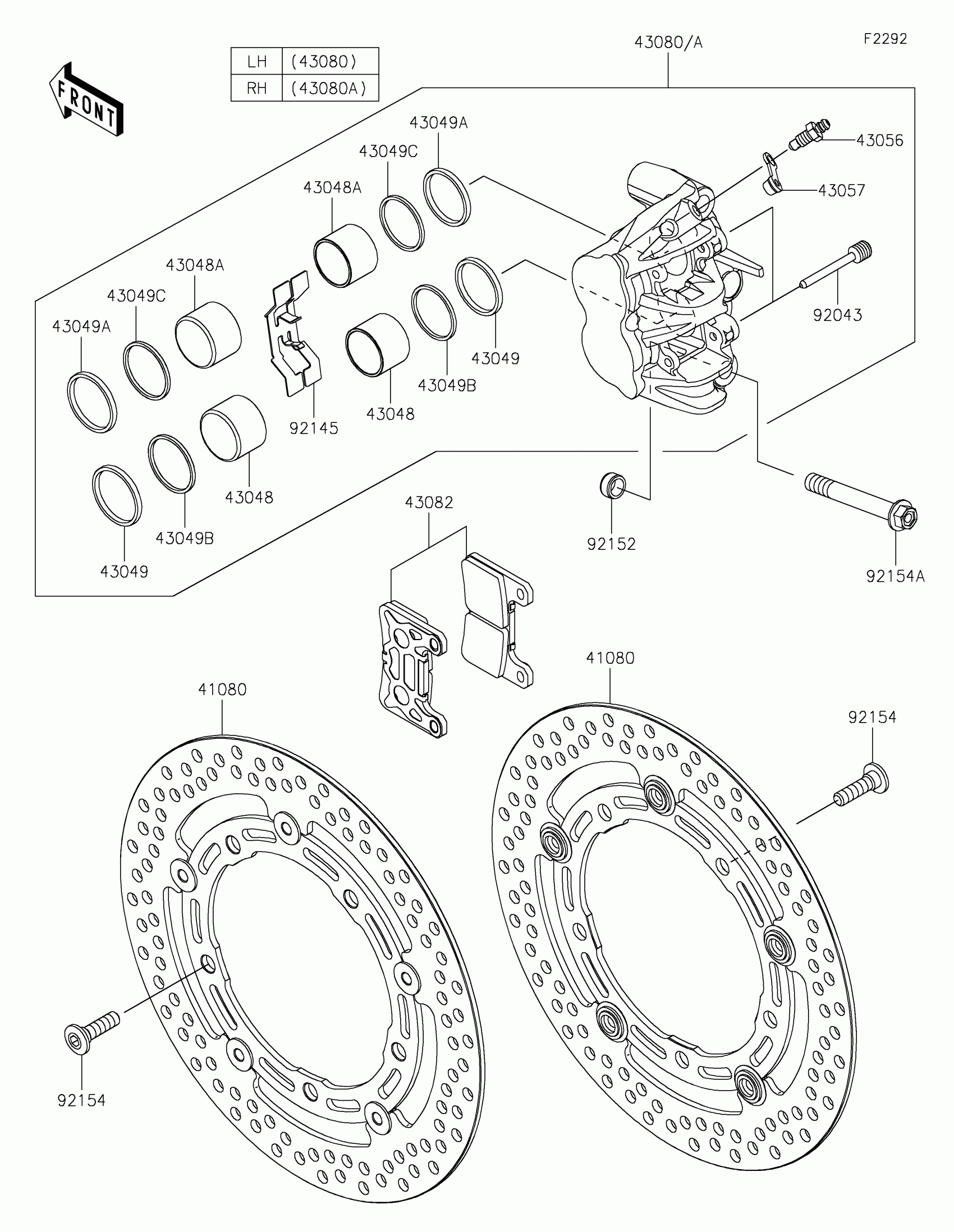

Kawasaki Ninja ZX-4R ABS Front Brake Diagram

Description

Price

41080

DISC,FR,BLACK+BLK

41080-0741-32L

$390.92

43048

PISTON-CALIPER

43048-0023

$69.13

43048A

PISTON-CALIPER

43048-0024

$69.13

43049

PACKING,PISTON

43049-0012

$13.43

43049A

PACKING,PISTON

43049-0013

$13.43

43049B

PACKING

43049-1068

$9.82

43049C

PACKING,WIPER

43049-1107

$11.06

43056

BREATHER-BRAKE

43056-0007

$23.79

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0143-DJ

$470.14

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0144-DJ

$470.14

43082

PAD-ASSY-BRAKE

43082-0206

$77.59

92043

PIN,PAD

92043-1709

$8.36

92145

SPRING,PAD

92145-1873

$18.84

92152

COLLAR,DOWEL PIN

92152-2877

$10.63

92154

BOLT,SOCKET,8X30

92154-1865

$4.69

92154A

BOLT

92154-4379

$10.42
