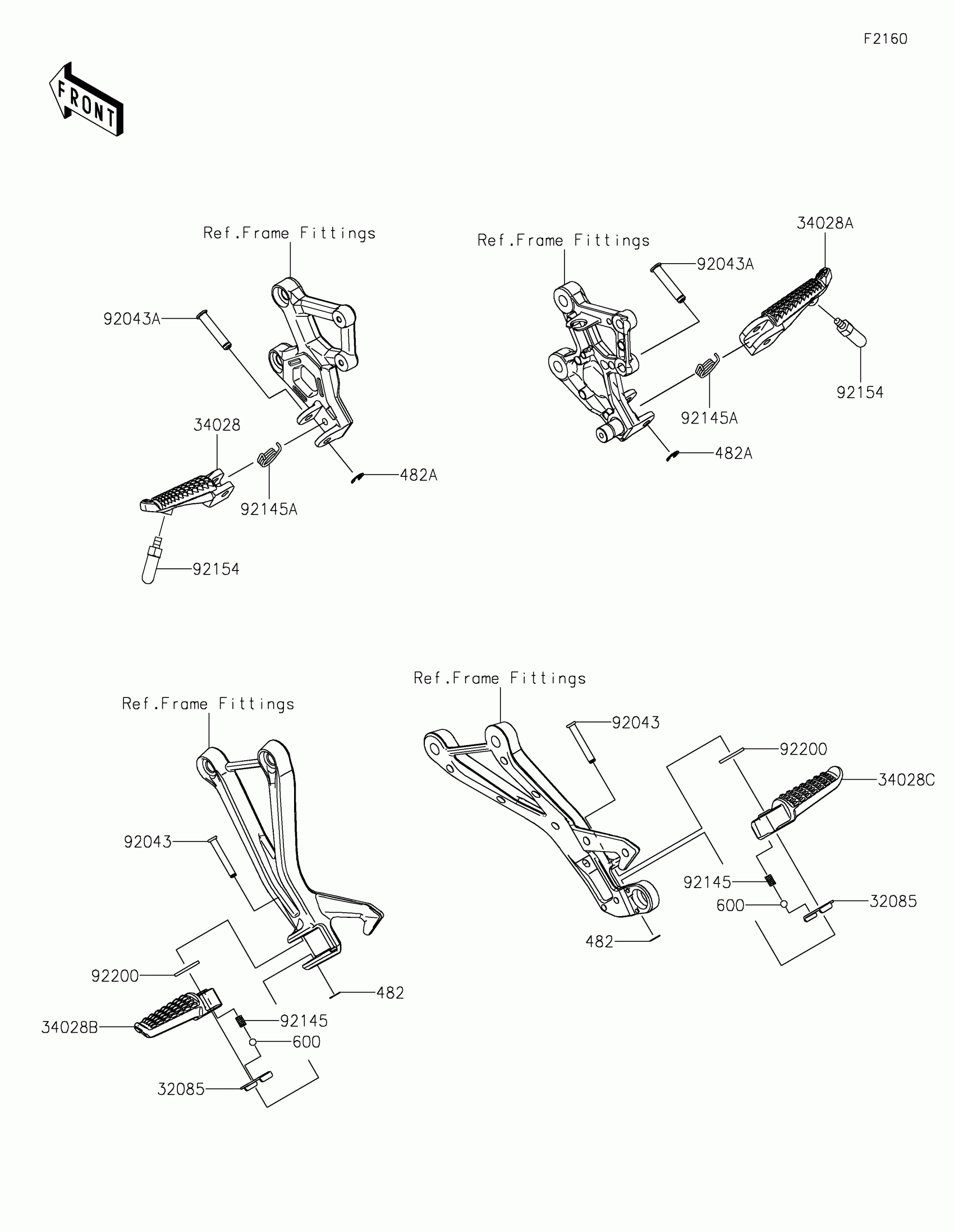

Kawasaki Ninja ZX-4R ABS Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0047

$5.57

34028

STEP,FR,LH

34028-0356

$61.29

34028A

STEP,FR,RH

34028-0357

$61.29

34028B

STEP,RR,LH

34028-0366

$70.40

34028C

STEP,RR,RH

34028-0367

$70.40

92043

PIN,6X40

92043-0200

$3.02

92043A

PIN,8X40.5

92043-0877

$4.96

92145

SPRING

92145-1319

$1.81

92145A

SPRING

92145-2240

$1.34

92154

BOLT,BANK SENSOR

92154-2799

$7.93

92200

WASHER,16X26X2.3

92200-0772

$3.74

482

CIRCLIP-TYPE-E

482EA5000

$1.34

482A

CIRCLIP-TYPE-E

482EA7000

$3.92

600

BALL-STEEL,1/4

600A0800

$0.62
