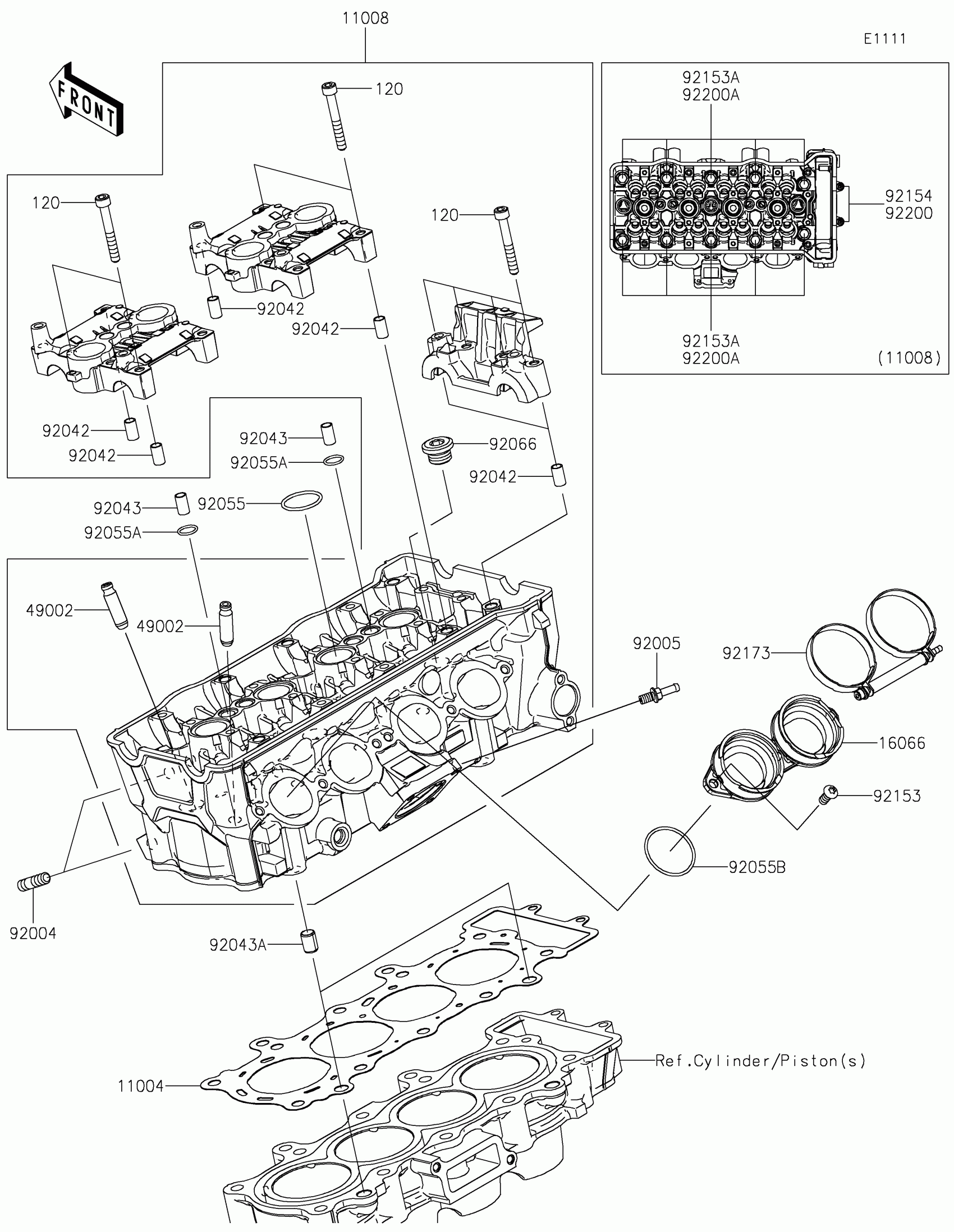

Kawasaki Ninja ZX-4R ABS Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0806

$64.20

11008

HEAD-COMP-CYLINDER

11008-1503

$1,837.95

16066

HOLDER-THROTTLE BODY

16066-0025

$53.43

49002

GUIDE-VALVE

49002-1152

$35.60

92004

STUD,8X18

92004-0049

$5.60

92005

FITTING

92005-0826

$10.21

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92043A

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,25.5X2

92055-0074

$3.90

92055A

RING-O,11.5X1.5

92055-0133

$3.90

92055B

RING-O,36.2X1.9

92055-1742

$4.10

92066

PLUG,16X10

92066-0129

$13.68

92153

BOLT,TORX,6X14

92153-0406

$2.80

92153A

BOLT,FLANGED,8X120

92153-0960

$8.68

92154

BOLT,SOCKET,6X80

92154-7031

$5.99

92173

CLAMP

92173-2681

$22.62

92200

WASHER,6.1X10.0X1.0

92200-0190

$2.61

92200A

WASHER,WAVE,8.2X16.4X1.6

92200-2372

$2.40

120

BOLT-SOCKET,6X45

120CA0645

$2.06
