Description

Price

13087

HUB-CLUTCH

13087-0594

$181.51

13088

PLATE-FRICTION

13088-0592

$15.93

13088A

PLATE-FRICTION

13088-0630

$16.35

13089

PLATE-CLUTCH,T=2.0

13089-0041

$10.77

13089A

PLATE-CLUTCH,T=2.0

13089-0042

$11.86

13089B

PLATE-CLUTCH,T=1.6

13089-0043

Unavailable

13089C

PLATE-CLUTCH,T=2.3

13089-0044

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-0617

$431.36

13102

RELEASE-COMP-CLUTCH

13102-0080

$53.08

13187

PLATE-CLUTCH OPERATING

13187-0033

$97.12

13272

PLATE

13272-2414

$19.32

16007

SEAT-SPRING

16007-0711

$4.06

46102

ROD

46102-0686

$21.37

92016

NUT,20MM

92016-028

$9.91

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92026

SPACER,25X52X5.5

92026-0115

$11.93

92026A

SPACER,25.5X50.5X2

92026-0873

$9.25

92045

BEARING-BALL

92045-0937

$17.35

92145

SPRING

92145-1901

$9.70

92145A

SPRING

92145-2273

$8.72

92152

COLLAR,25X32X29.1

92152-2524

$36.29

92154

BOLT,UPSET,6X30

92154-0997

$3.35

92200

WASHER,99.4X107X1.2

92200-1987

$10.49

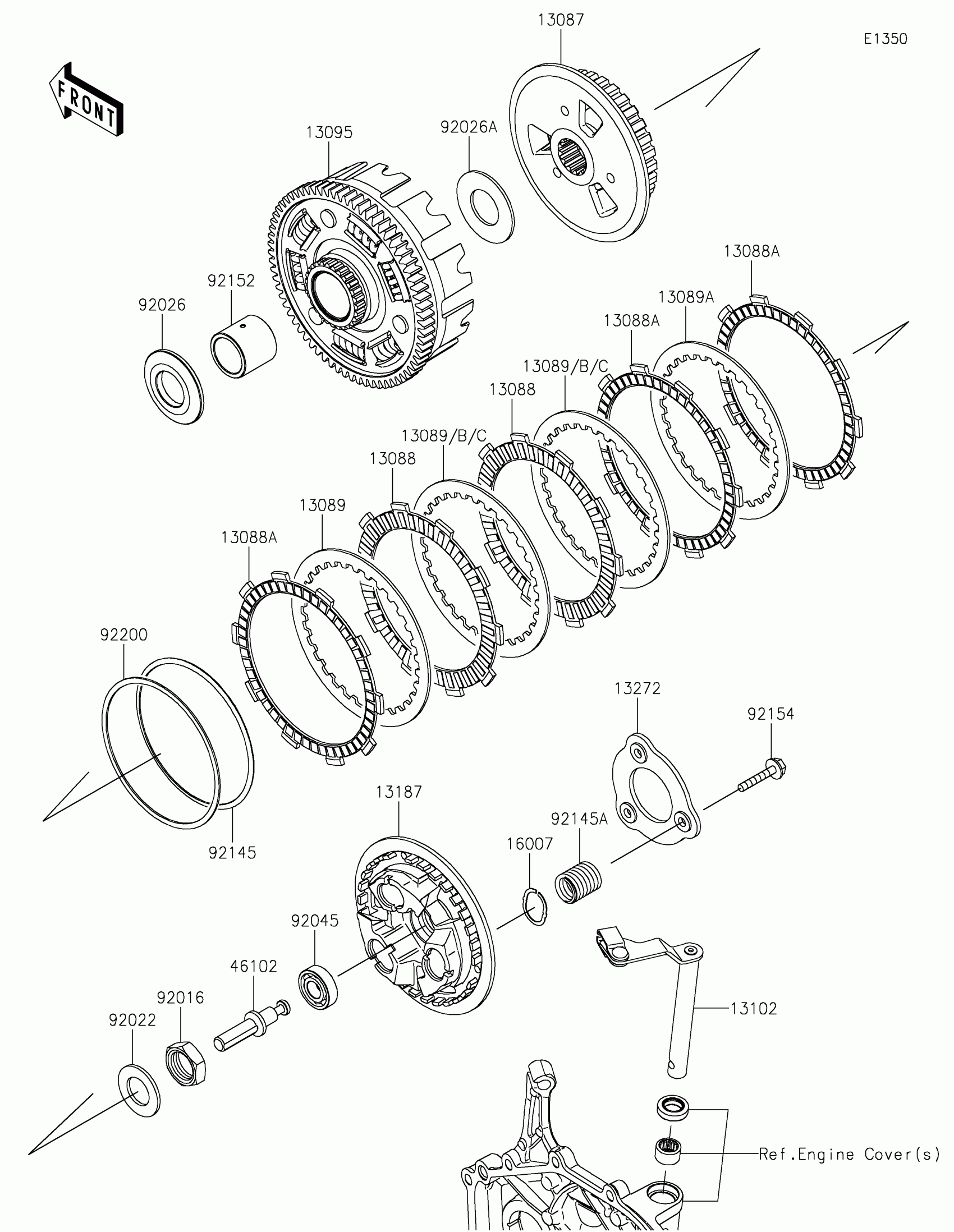

Kawasaki Ninja ZX-4R ABS Clutch Diagram

HUB-CLUTCH

PLATE-FRICTION

PLATE-FRICTION

PLATE-CLUTCH,T=2.0

PLATE-CLUTCH,T=2.0

PLATE-CLUTCH,T=1.6

PLATE-CLUTCH,T=2.3

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PLATE-CLUTCH OPERATING

PLATE

SEAT-SPRING

ROD

NUT,20MM

WASHER,20.3X36X2.3

SPACER,25X52X5.5

SPACER,25.5X50.5X2

BEARING-BALL

SPRING

SPRING

COLLAR,25X32X29.1

BOLT,UPSET,6X30

WASHER,99.4X107X1.2
