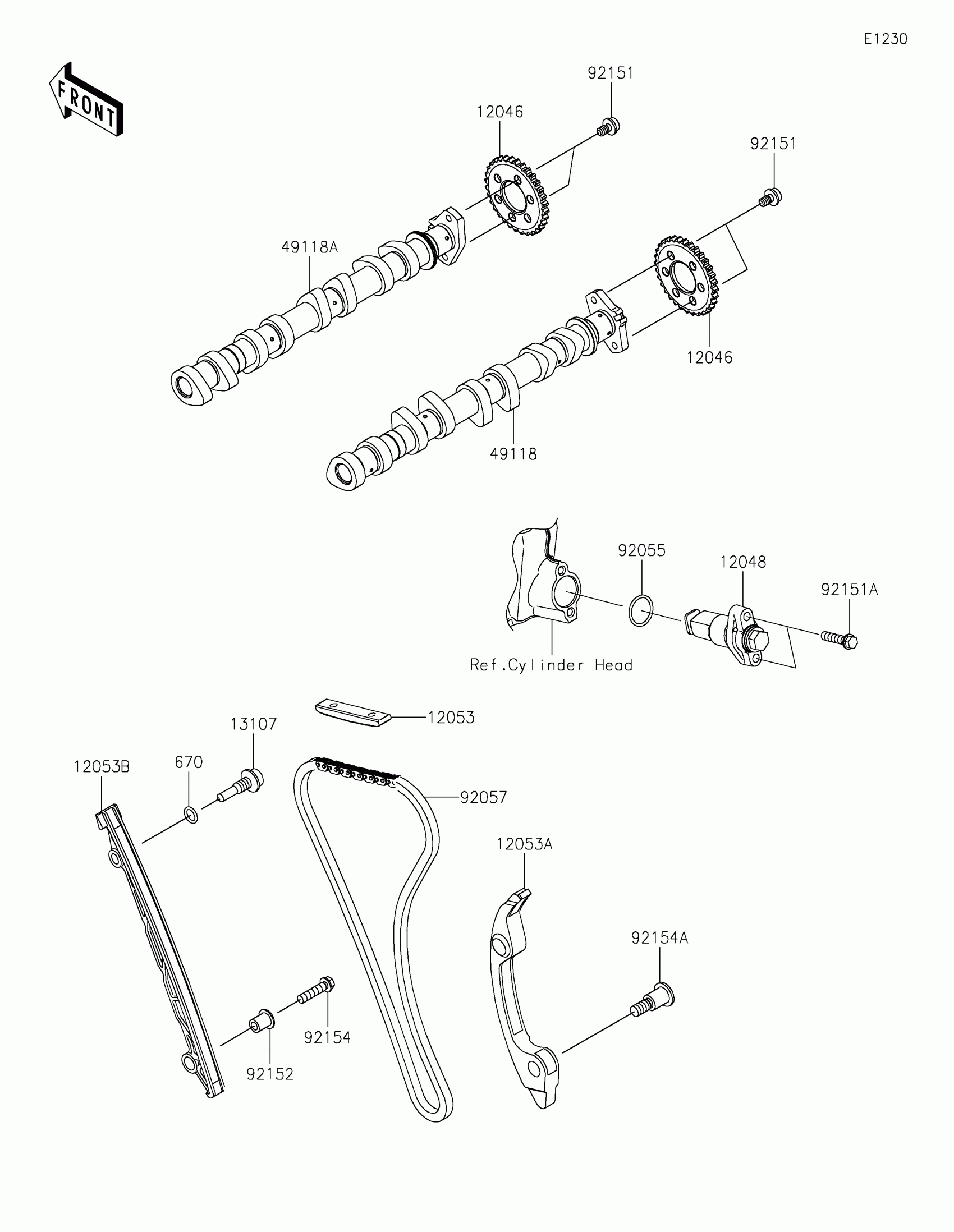

Kawasaki Ninja ZX-4R ABS Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,32T

12046-0621

$67.96

12048

TENSIONER-ASSY

12048-0111

$95.43

12053

GUIDE-CHAIN,UPP

12053-0051

$23.95

12053A

GUIDE-CHAIN,RR

12053-0325

$69.36

12053B

GUIDE-CHAIN,FR

12053-0330

$14.03

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

49118

CAMSHAFT-COMP,INTAKE

49118-1289

$417.31

49118A

CAMSHAFT-COMP,EXHAUST

49118-1290

$417.31

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,CAM,98XRH2010-110M

92057-0782

$29.18

92151

BOLT,SOCKET,6X10

92151-1829

$2.80

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92152

COLLAR

92152-0413

$8.68

92154

BOLT,FLANGED,6X25

92154-0520

$3.35

92154A

BOLT,SOCKET,8X29.2

92154-0953

$5.05

670

O RING,9MM

670D1509

$4.69
