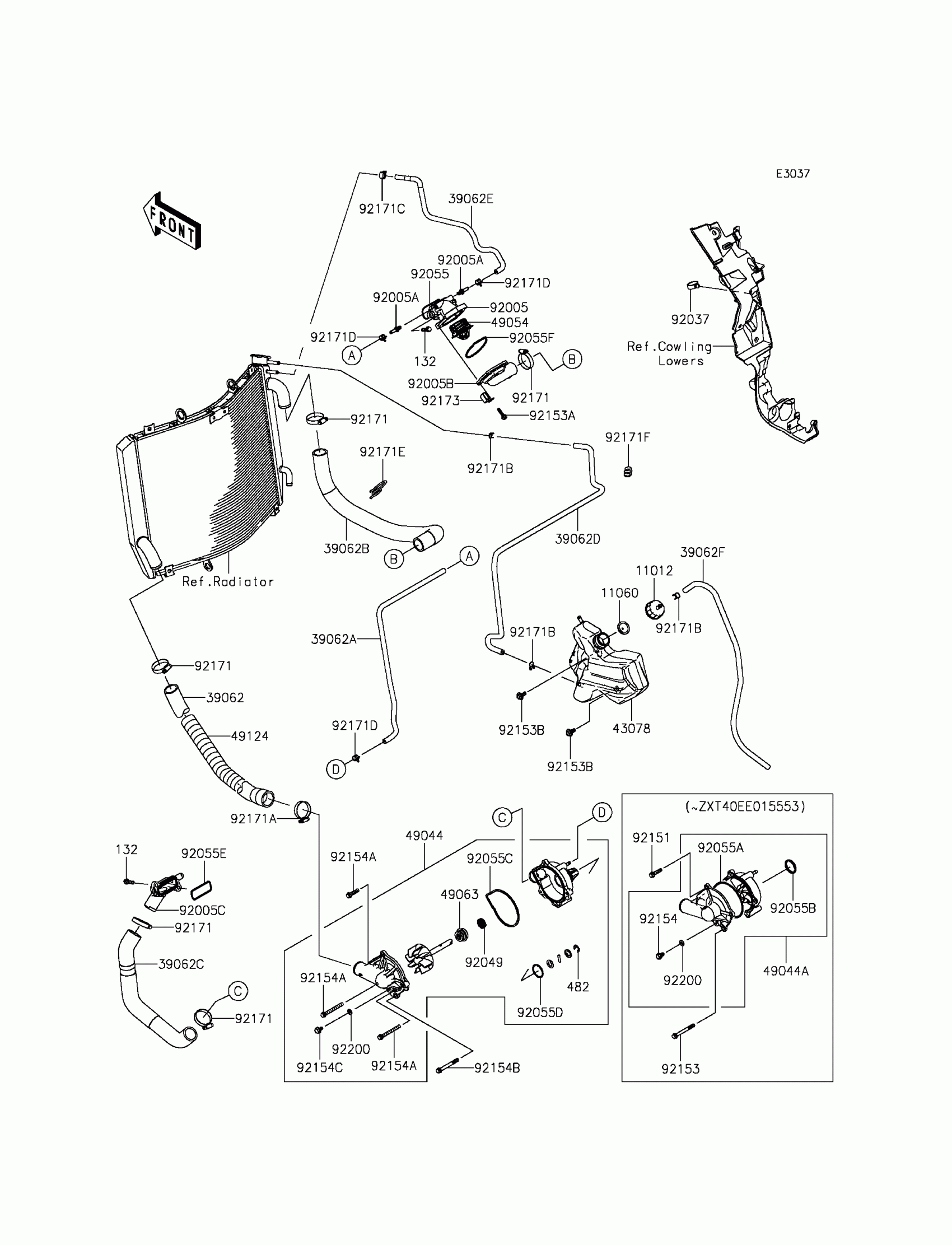

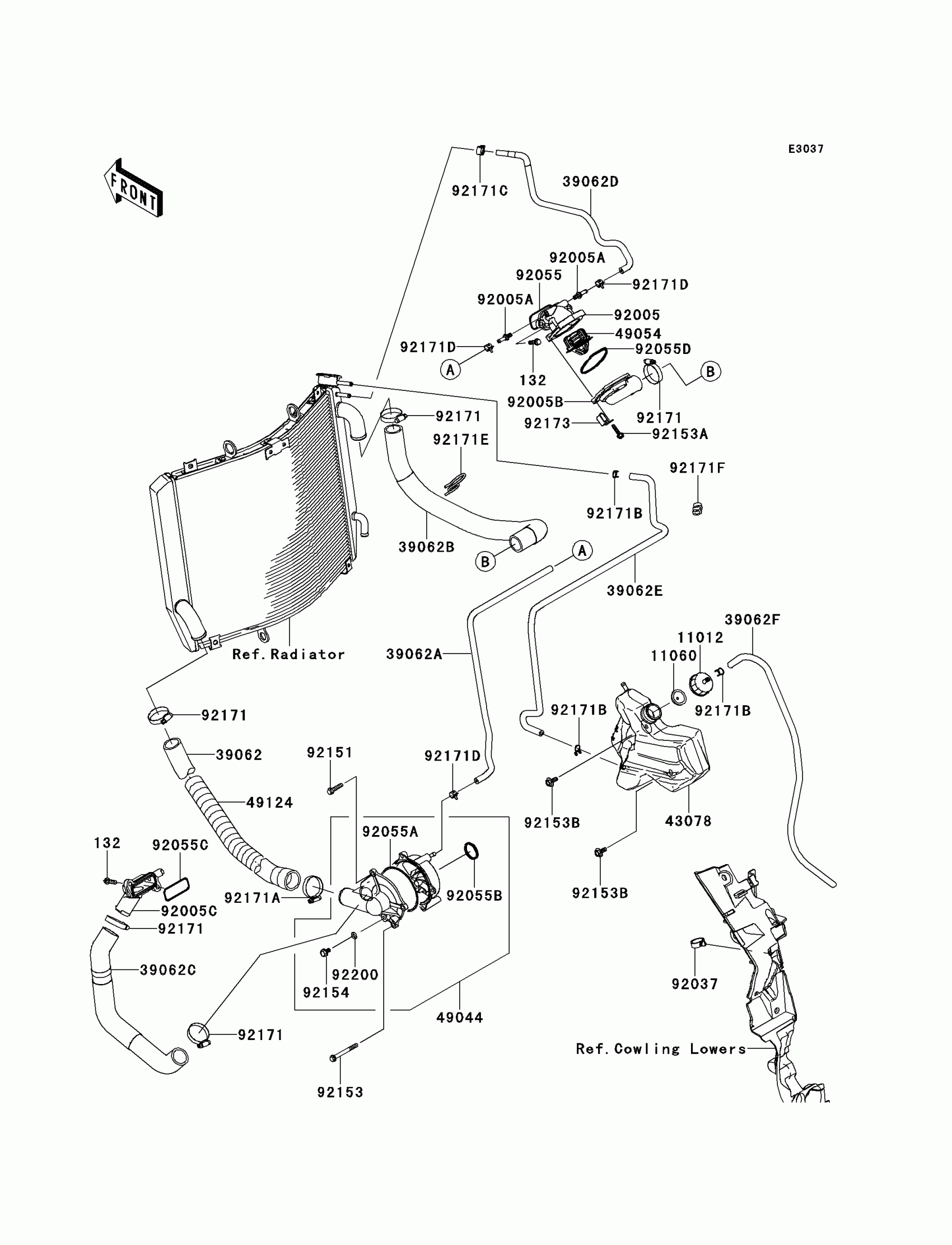

Kawasaki NINJA® ZX™-14R Water Pipe Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$1.34

11012

CAP

11012-1854

$9.43

11060

GASKET,RESERVOIR TANK CAP

11060-1349

$5.46

39062

HOSE-COOLING,RAD-W/P

39062-0113

$37.51

39062A

HOSE-COOLING,L=514.9

39062-0123

$8.60

39062B

HOSE-COOLING,CYL.HEAD-RAD.

39062-0212

$74.54

39062C

HOSE-COOLING,W/P-CYLINDER

39062-0611

$43.92

39062D

HOSE-COOLING,AIR VENT

39062-0612

$14.05

39062E

HOSE-COOLING,RAD.-RESERVOIR

39062-0613

$15.06

39062F

HOSE-COOLING,5.5X10.5X550

39062-1208

$37.82

43078

RESERVOIR

43078-0556

$32.25

49044

PUMP-WATER

49044-0553

Unavailable

49054

THERMOSTAT

49054-0004

$59.01

49124

SPRING-TUBE GUARD

49124-0003

$47.03

92005

FITTING,THERMO CASE

92005-0047

$41.04

92005A

FITTING

92005-0056

$10.21

92005B

FITTING,THERMO CAP

92005-0076

$79.65

92005C

FITTING,CYLINDER

92005-0104

$39.87

92037

CLAMP,HOSE

92037-1827

$7.45

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

$3.73

92055A

RING-O

92055-0157

Unavailable

92055B

RING-O

92055-0158

$9.09

92055C

RING-O

92055-1402

$7.84

92055D

RING-O,THERMOSTAT CAP

92055-1699

$9.07

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92153

BOLT,FLANGED-SMALL,6X55

92153-1586

$2.24

92153A

BOLT,FLANGED,5X18

92153-1588

$1.34

92153B

BOLT,UPSET-WP,6X16

92153-1939

$1.78

92154

BOLT,DRAIN

92154-0184

$7.95

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP

92171-0180

$13.37

92171B

CLAMP

92171-0718

$2.15

92171C

CLAMP

92171-0719

$2.15

92171D

CLAMP

92171-0720

$1.30

92171E

CLAMP

92171-0786

$7.75

92171F

CLAMP

92171-1184

$2.46

92173

CLAMP

92173-0082

$6.22

92200

WASHER,DRAIN

92200-0498

$3.29
