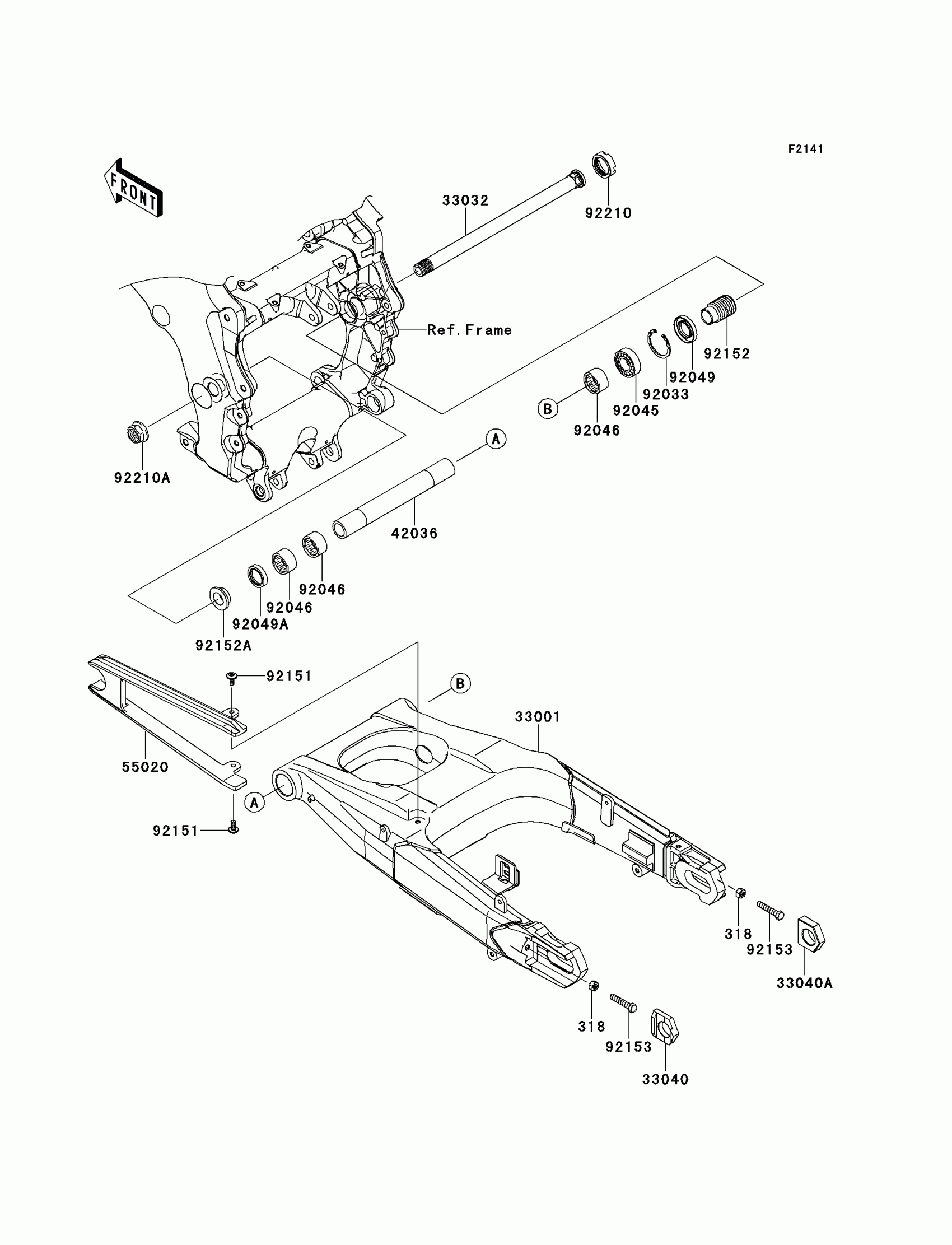

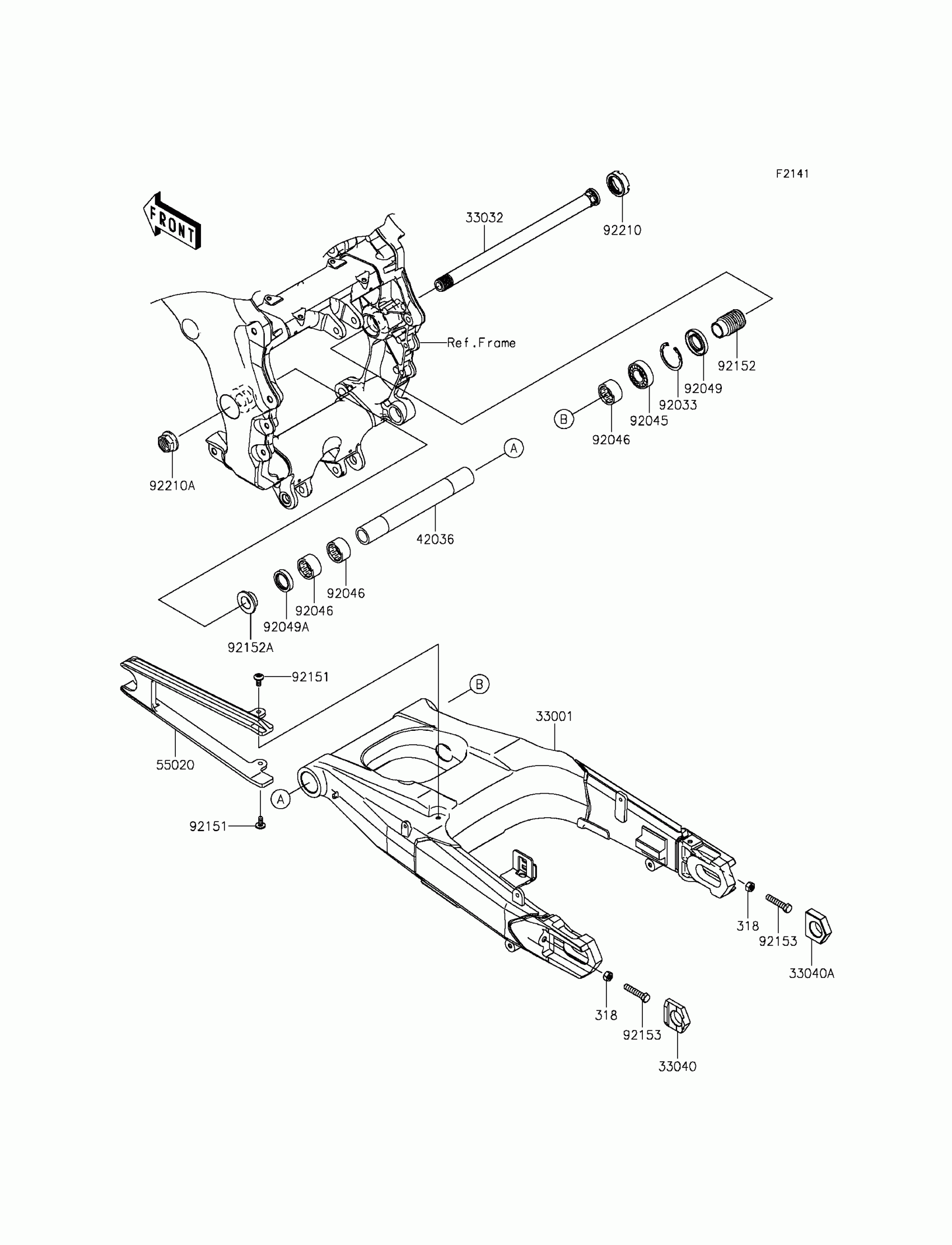

Kawasaki NINJA® ZX™-14R Swingarm Diagram

Description

Price

318

NUT-HEX-SMALL,8MM

318BA0800

$1.34

33001

ARM-COMP-SWING,F.S.BLACK

33001-0590-18R

$1,044.33

33032

SHAFT-SWING ARM

33032-0013

Unavailable

33040

ADJUSTER-CHAIN,LH

33040-0017

$41.57

33040A

ADJUSTER-CHAIN,RH

33040-0018

$30.48

42036

SLEEVE,SWING ARM PIVOT,L=226

42036-1341

$68.84

55020

GUARD,CHAIN

55020-0818

$46.27

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6004UL11

92045-0017

$14.39

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$9.28

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,SWING ARM,RH,L=47

92152-0362

$46.79

92152A

COLLAR,SWING ARM,L=12.5

92152-1234

$8.97

92153

BOLT,8X55

92153-1407

$2.15

92210

NUT,30MM

92210-0134

$28.51

92210A

NUT,FLANGED,20MM

92210-0320

$11.93
